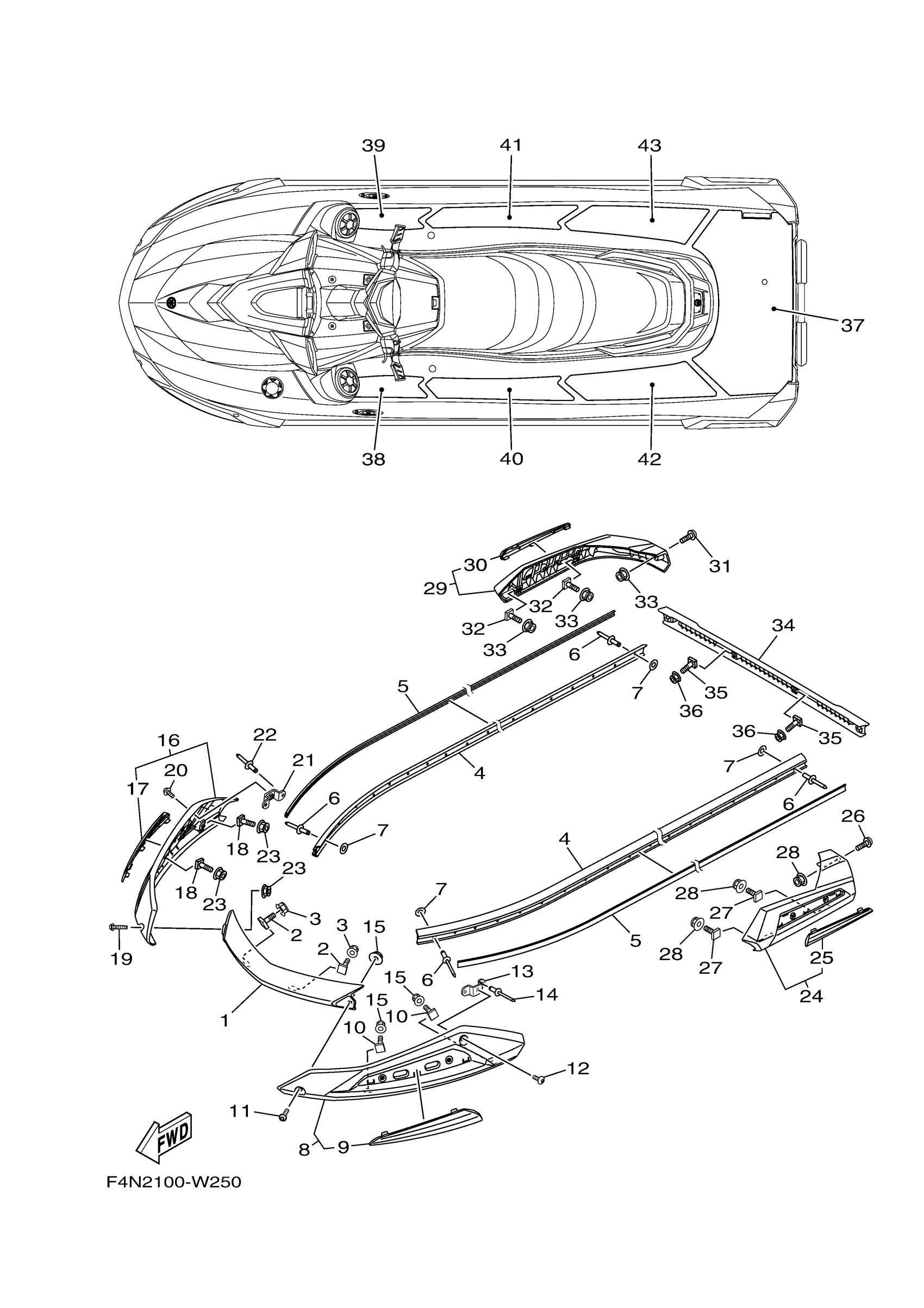

Yamaha VX1800CY (VX CRUISER WITH AUDIO_VX CRUISER) F4S9 2023 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F4N-U2511-00-00

$24.44

1

GUNWALE, BOW

F4N-U2511-10-00

$22.97

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

GUNWALE, SIDE

F4N-U2512-00-00

$33.32

4

GUNWALE, SIDE

F4N-U2512-10-00

$30.13

5

INNER,GUNWALE

F4N-U2519-20-00

$18.52

5

INNER,GUNWALE

F4N-U2519-80-00

$28.77

6

RIVET, BLIND

90267-489U8-00

$0.99

7

WASHER

9299R-05200-00

$3.16

8

GUNWALE ASSY.

F4N-U2510-20-00

$33.34

8

GUNWALE ASSY.

F6G-U2510-20-00

$43.73

9

. GUNWALL INSIDE

F4N-U2514-40-00

$45.44

9

GUNWALL INSIDE

F4N-U2514-J0-00

$15.89

10

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

11

SCREW

F3X-U7823-12-00

$1.25

12

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

13

BRACKET

F3X-U4949-00-00

$2.52

14

RIVET, BLIND

90267-489U6-00

$1.37

15

NUT, LOCK

F2N-U142L-00-00

$1.00

16

GUNWALE ASSY.

F4N-U2510-30-00

Unavailable

16

GUNWALE ASSY.

F6G-U2510-30-00

Unavailable

17

. GUNWALL INSIDE

F4N-U2514-50-00

$40.19

17

GUNWALL INSIDE

F4N-U2514-K0-00

Unavailable

18

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

19

SCREW

F3X-U7823-12-00

$1.25

20

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

21

BRACKET

F3X-U4949-00-00

$2.52

22

RIVET, BLIND

90267-489U6-00

$1.37

23

NUT, LOCK

F2N-U142L-00-00

$1.00

24

STERN GUNWALE COMP

F4N-U2504-20-00

Unavailable

24

STERN GUNWALE COMP

F6G-U2504-20-00

Unavailable

25

. INNER GUNWALE, AFT

F4N-U255C-40-00

$22.71

25

INNER GUNWALE, AFT

F4N-U255C-J0-00

Unavailable

26

SCREW

F4P-U7823-00-00

$1.37

27

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

28

NUT, LOCK

F2N-U142L-00-00

$1.00

29

STERN GUNWALE COMP

F4N-U2504-30-00

Unavailable

29

STERN GUNWALE COMP

F6G-U2504-30-00

Unavailable

30

. INNER GUNWALE, AFT

F4N-U255C-50-00

$22.71

30

INNER GUNWALE, AFT

F4N-U255C-K0-00

Unavailable

31

SCREW

F4P-U7823-00-00

$1.37

32

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

33

NUT, LOCK

F2N-U142L-00-00

$1.00

34

COVER, GUNWALE 1

F4P-U252C-02-00

Unavailable

34

COVER, GUNWALE 1

F4P-U252C-12-00

Unavailable

35

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

36

NUT, LOCK

F2N-U142L-00-00

$1.00

37

MAT, UPPER

F4N-U3581-00-00

$68.93

38

MAT, STEP 1

F6G-U351H-00-00

$11.35

39

MAT, STEP 2

F6G-U351J-00-00

$11.35

40

MAT, STEP 3

F4N-U351K-00-00

$15.89

41

MAT, STEP 4

F4N-U351M-00-00

$15.89

42

MAT, STEP 5

F4N-U351N-00-00

$24.23

43

MAT, STEP 6

F4N-U351P-00-00

$24.23
