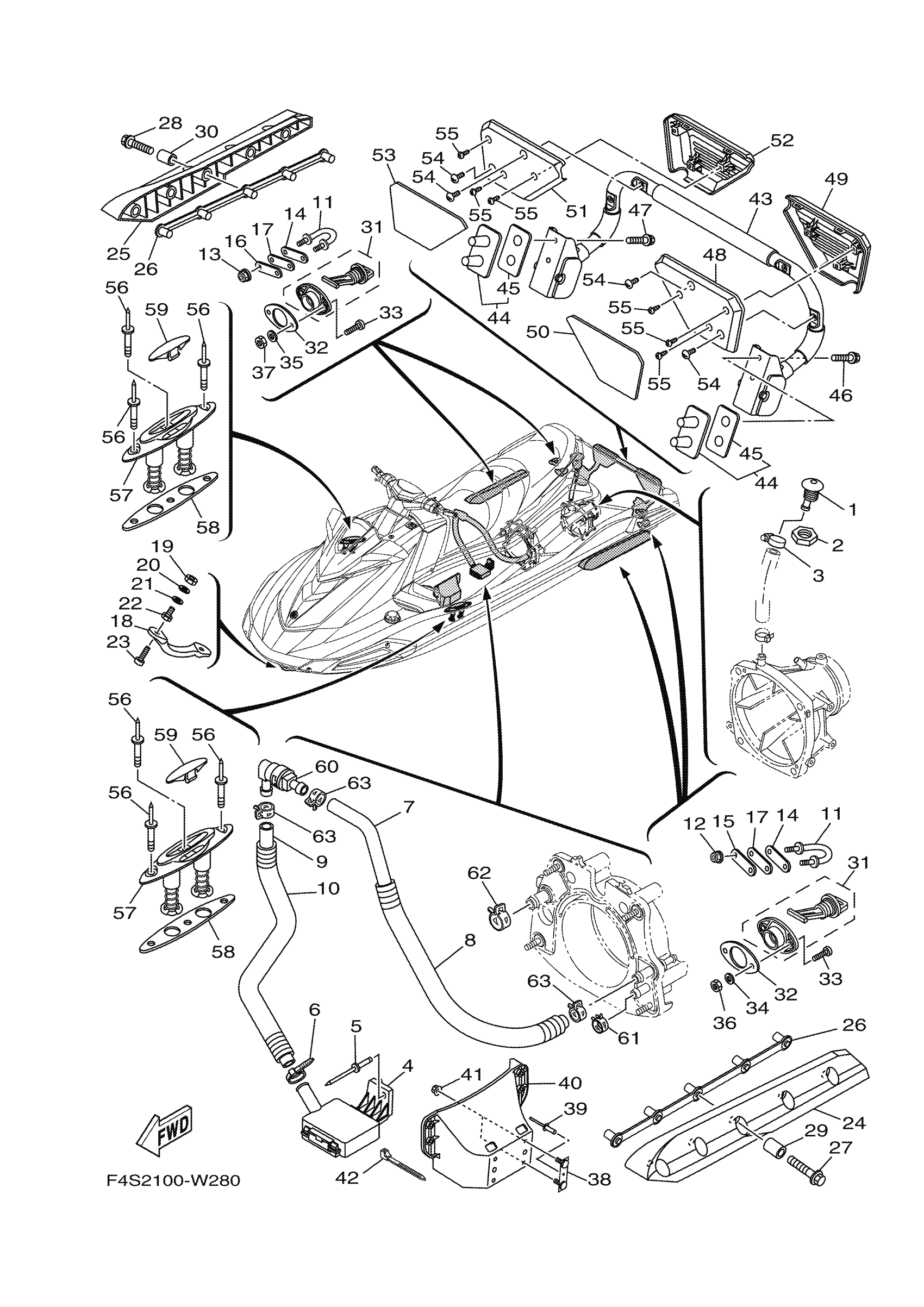

Yamaha VX1800CX (VX CRUISER WITH AUDIO_VX CRUISER) F4S6 2022 HULL & DECK Diagram

#

Description
Price

1

SPOUT

F1W-U269B-00-00

Unavailable

2

NUT

EU0-61652-00-00

Unavailable

3

BAND, HOSE 18

90601-118UF-00

Unavailable

4

STRAINER, BILGE

F1B-U761D-02-00

Unavailable

5

RIVET, BLIND

90267-489U8-00

Unavailable

6

CLAMP

90465-10098-00

Unavailable

7

HOSE (L860)

90445-20804-00

Unavailable

8

TUBE,2

6EX-U773E-00-00

Unavailable

9

HOSE (L500)

90445-20800-00

Unavailable

10

TUBE

6EX-U773D-00-00

Unavailable

11

STERN EYE

F2N-U1628-02-00

Unavailable

12

NUT, NYLON (6J8)

95780-08300-00

Unavailable

13

NUT, NYLON (6J8)

95780-08300-00

Unavailable

14

PLATE A

GP7-U4953-10-00

Unavailable

15

PLATE A

GP7-U4953-10-00

Unavailable

16

PLATE A

GP7-U4953-10-00

Unavailable

17

PACKING

F1B-U1653-03-00

Unavailable

18

BOW EYE 1

F1K-61624-00-00

Unavailable

19

NUT.HEX.(COARS)

99780-12600-00

Unavailable

20

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

21

WASHER

F0X-61637-00-00

Unavailable

22

NUT

F0X-61652-01-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

Unavailable

24

STABILIZER LH

F1S-U883N-01-00

Unavailable

25

STABILIZER RH

F1S-U883P-01-00

Unavailable

26

BRACKET,STABILIZER

F1X-U883T-02-00

Unavailable

27

BOLT,WASHER BASED

90105-088F9-00

Unavailable

28

BOLT,WASHER BASED

90105-088F9-00

Unavailable

29

SPACER

F2N-U8169-10-00

Unavailable

30

SPACER

F2N-U8169-10-00

Unavailable

31

DRAIN PLUG ASSY

F1S-U2280-02-00

Unavailable

32

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

33

SCREW, PAN HEAD

9788R-05025-00

Unavailable

34

WASHER

9299R-05200-00

Unavailable

35

WASHER

9299R-05200-00

Unavailable

36

NUT, FLANGE

9572R-05300-00

Unavailable

37

NUT, FLANGE

9572R-05300-00

Unavailable

38

BRACKET

F1K-U826C-03-00

Unavailable

39

RIVET (EU0)

90267-48938-00

Unavailable

40

BRACKET 2

F4P-U8572-00-00

Unavailable

41

NUT, LOCK

F3Y-U142L-00-00

Unavailable

42

CLAMP

90464-32801-00

Unavailable

43

LADDER, STEP ASSY

F4N-U278A-00-00

Unavailable

44

BRACKET, LADDER LH

F2S-U278F-01-00

Unavailable

45

PACKING, BRKT. 1

F2S-U278H-01-00

Unavailable

46

BOLT, WITH WASHER

90119-08844-00

Unavailable

47

BOLT, WITH WASHER

90119-08844-00

Unavailable

48

STEP

F4N-U882F-00-00

Unavailable

49

PLATE, STEP 1

F4N-U884R-00-00

Unavailable

50

MAT, STEP 7

F4N-U351R-20-00

Unavailable

51

STEP

F4N-U882F-10-00

Unavailable

52

PLATE, STEP 1

F4N-U884R-10-00

Unavailable

53

MAT, STEP 8

F4N-U351S-20-00

Unavailable

54

BOLT, WITH WASHER

90119-06830-00

Unavailable

55

BOLT

90109-06832-00

Unavailable

56

RIVET, BLIND

90267-489U2-00

Unavailable

57

CLEAT ASSY.

F4G-U163A-02-00

Unavailable

58

PACKING

F4G-U2284-10-00

Unavailable

59

COVER

F1X-U826D-01-00

Unavailable

60

JOINT, HOSE

68N-5112T-00-00

Unavailable

61

CLIP

90467-200A3-00

Unavailable

62

CLIP

90467-240A3-00

Unavailable

63

CLIP

90467-190A2-00

Unavailable
