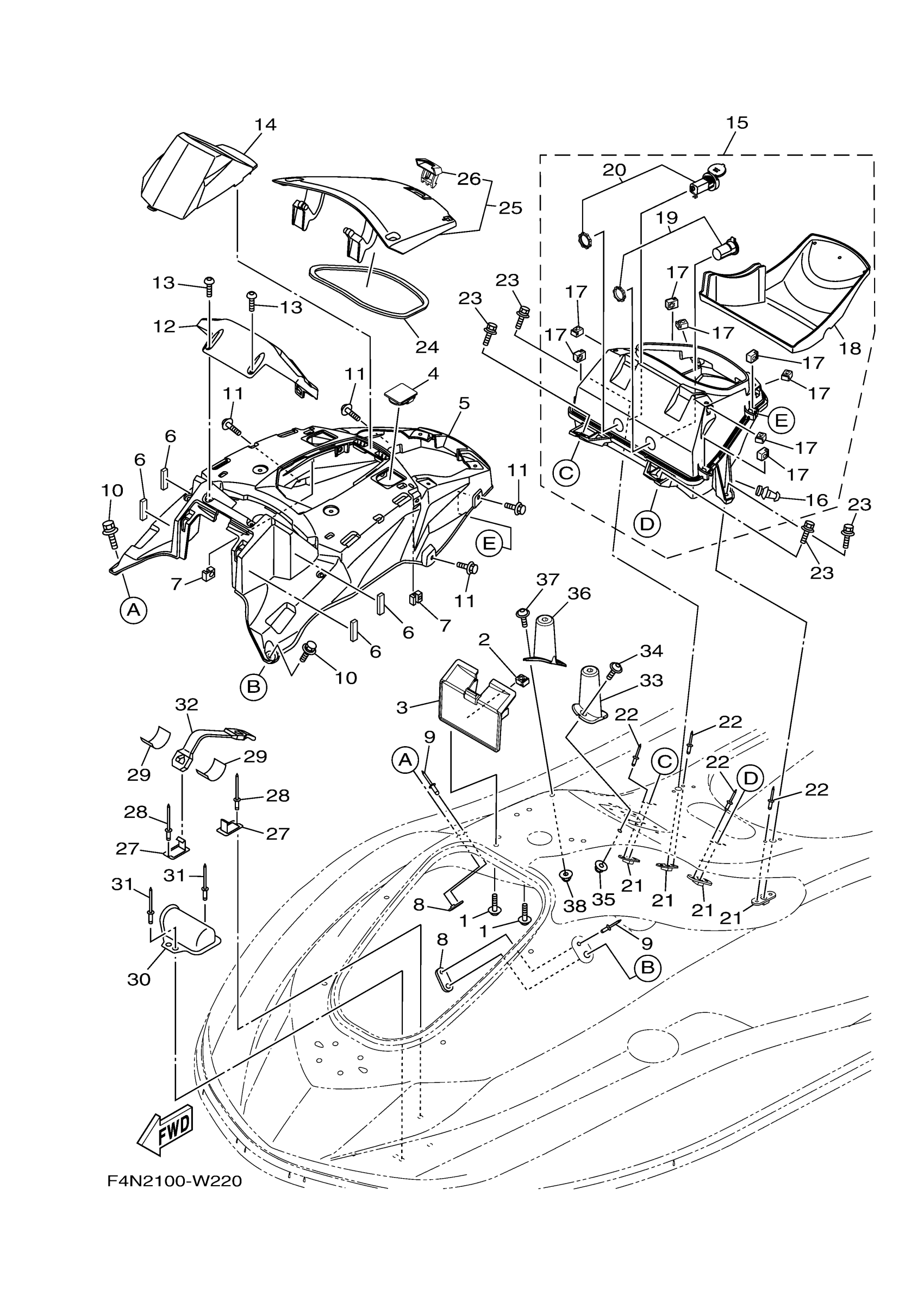

Yamaha VX1800CX (VX CRUISER WITH AUDIO_VX CRUISER) F4S6 2022 ENGINE HATCH 2 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-06880-00

Unavailable

2

NUT

F3X-U517E-00-00

Unavailable

3

HOOK,LID LOCK

F4P-U517F-00-00

Unavailable

5

COVER, CENTER

F4N-U5554-00-00

Unavailable

6

. PACKING 3

F1K-U266B-00-00

Unavailable

7

NUT

F3X-U517E-00-00

Unavailable

8

PLATE, FIX

F2X-U5175-00-00

Unavailable

9

RIVET (EU0)

90267-48938-00

Unavailable

10

BOLT, WITH WASHER

90119-06878-00

Unavailable

11

BOLT

F4P-U1355-00-00

Unavailable

12

COVER METER

F4N-U8262-00-00

Unavailable

13

SCREW

F2S-U13C1-00-00

Unavailable

14

COVER, FRONT

F4N-U513M-00-00

Unavailable

15

GLOVE BOX HATCH ASSY

F4N-U1708-11-00

Unavailable

16

. SEAL

F3X-U2723-00-00

Unavailable

17

NUT

F3X-U517E-00-00

Unavailable

18

INNER, CASE

F4N-U591L-00-00

Unavailable

19

TERMINAL COMP.

F4N-H254B-00-00

Unavailable

20

PLUG, USB

F4N-H21E1-01-00

Unavailable

21

BRACKET

F2C-U826C-00-00

Unavailable

22

RIVET 1

F4P-U516R-01-00

Unavailable

23

BOLT, WITH WASHER

90119-08828-00

Unavailable

24

PACKING CASE

F4N-U519D-02-00

Unavailable

25

GLOVE BOX COVER ASSY

F4N-U4705-01-00

Unavailable

26

. LOCK

F4N-U2875-00-00

Unavailable

27

HOOK A

F1K-U5772-04-00

Unavailable

28

RIVET (EU0)

90267-48938-00

Unavailable

29

MAT 2

F1K-U759C-00-00

Unavailable

30

BOX, FIRE EXTINGUISHER

F2X-U5983-00-00

Unavailable

31

RIVET, BLIND

90267-48802-00

Unavailable

32

BAND 1

F2P-U828K-00-00

Unavailable

33

RFM.,DASH BOARD 1

F4N-U974A-00-00

Unavailable

34

SCREW

F3X-U7823-12-00

Unavailable

35

NUT, LOCK

F2N-U142L-00-00

Unavailable

36

RFM.,DASH BOARD 2

F4N-U974B-00-00

Unavailable

37

SCREW

F3X-U7823-12-00

Unavailable

38

NUT, LOCK

F2N-U142L-00-00

Unavailable
