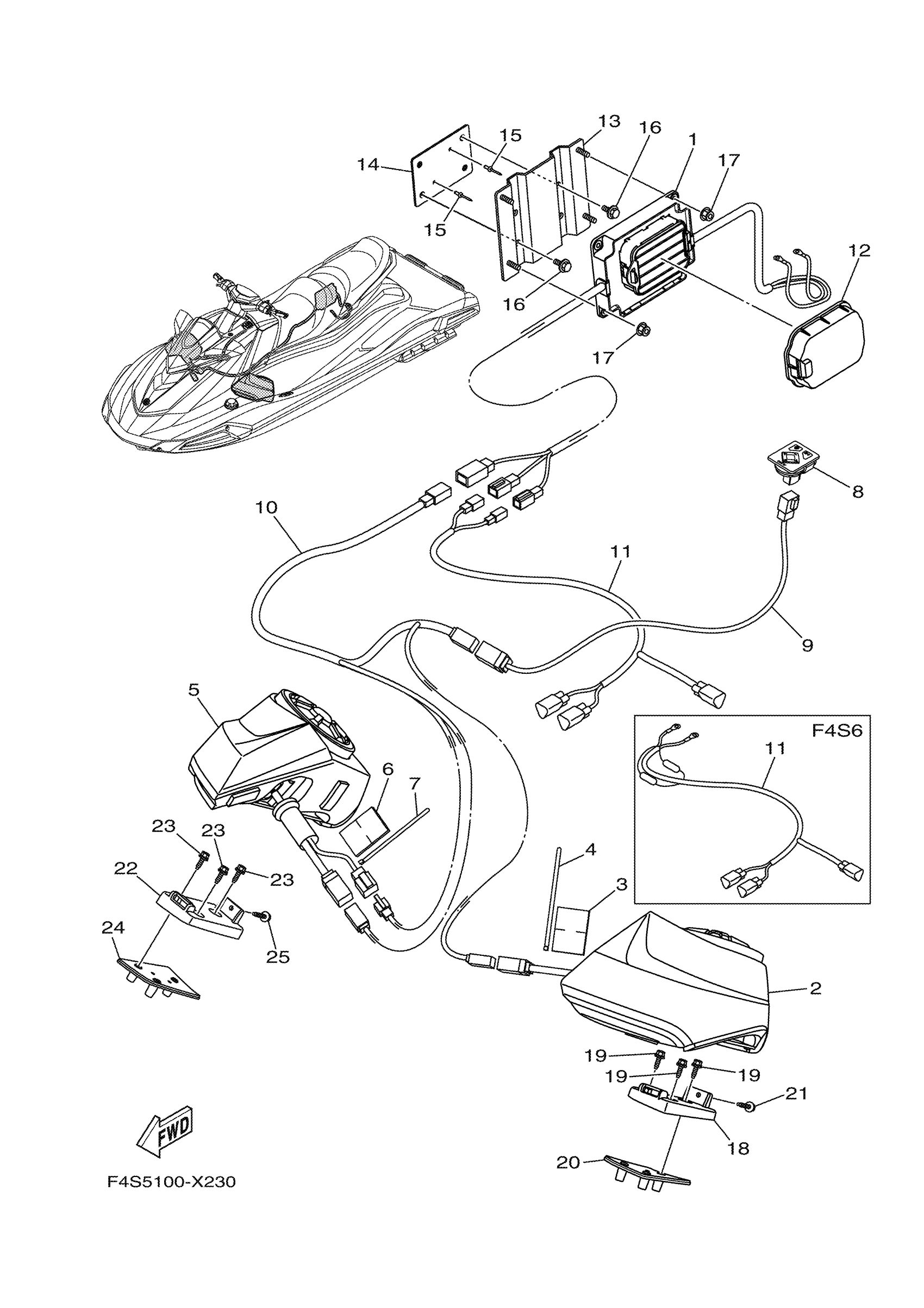

Yamaha VX1800CX (VX CRUISER WITH AUDIO_VX CRUISER) F4S6 2022 ELECTRICAL 4 Diagram

#

Description
Price

1

POWER BALANCE SYSTEM ASSY

F4N-U0840-03-00

$209.70

2

SPEAKER ASSY 1

F4N-U8102-01-00

$582.41

3

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

4

CLAMP

90464-32801-00

$1.23

5

SPEAKER ASSY 2

F4N-U8103-02-00

$876.17

6

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

7

CLAMP

90464-32801-00

$1.23

8

CONTROLLER, AUDIO

F4N-U81AJ-00-00

$180.29

9

WIRE HARNESS 2

F4N-U827D-01-00

$87.86

10

WIRE SPEAKER ASSY

F4N-U8104-00-00

$90.89

11

WIRE, HARNESS

F4N-U8275-02-00

$78.77

12

SPLASH COVER

F4N-U2177-00-00

$6.52

13

BRACKET 1

F4N-UFG21-01-00

$24.98

14

BRACKET 2

F4N-UFG22-01-00

$18.92

15

RIVET, BLIND

90267-48806-00

$2.00

16

BOLT, WITH WASHER

90119-08828-00

$2.30

17

NUT, LOCK

F2N-U142L-00-00

$1.00

18

BRACKET, SPEAKER 1

F4N-UE6GA-01-00

$18.92

19

BOLT, WITH WASHER

90119-06878-00

$3.43

20

BRACKET

F4N-U0392-00-00

$18.92

21

BOLT, WITH WASHER

90119-06878-00

$3.43

22

BRACKET, SPEAKER 1

F4N-UE6GA-11-00

$18.92

23

BOLT, WITH WASHER

90119-06878-00

$3.43

24

BRACKET

F4N-U0392-10-00

$22.71

25

BOLT, WITH WASHER

90119-06878-00

$3.43
