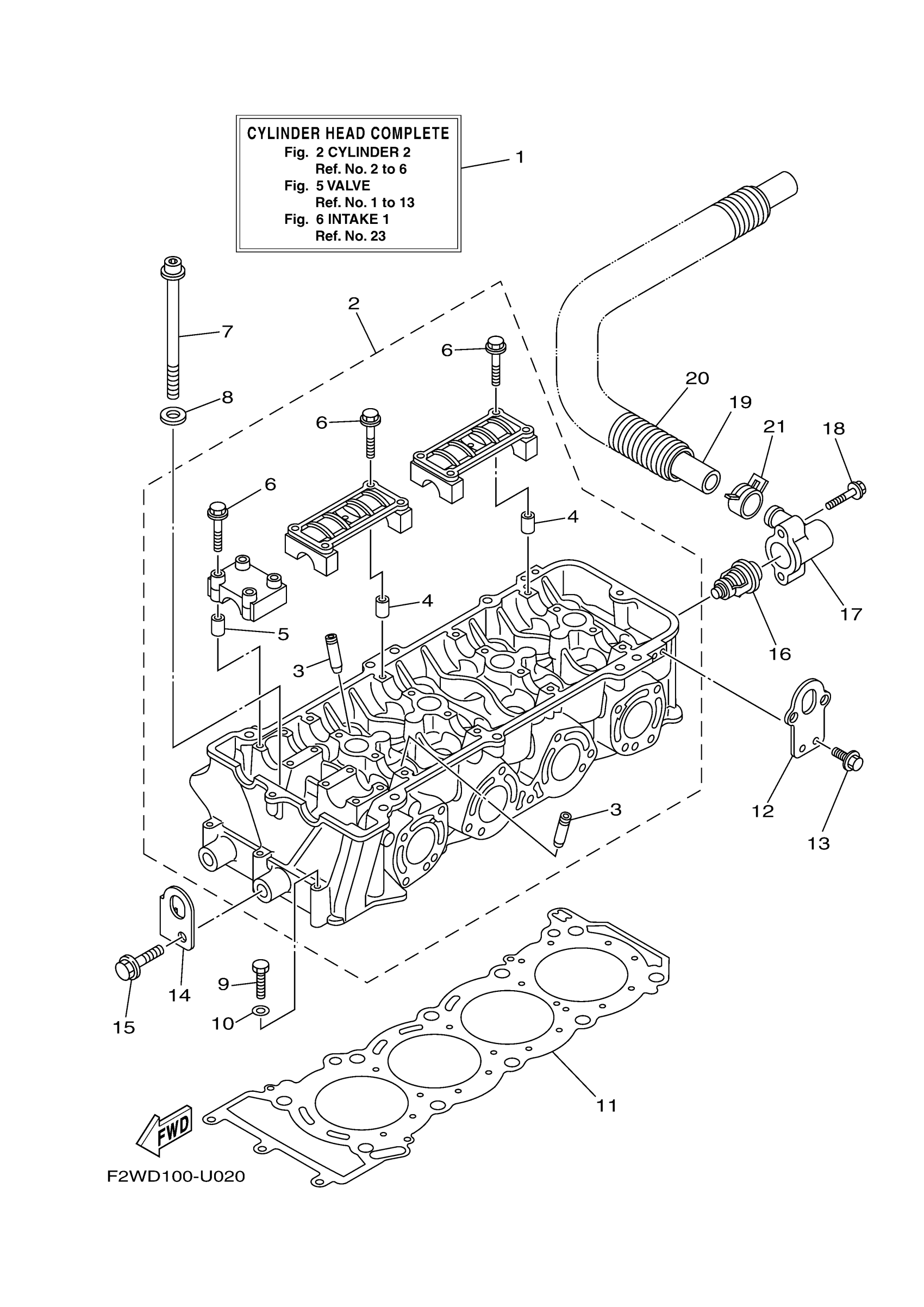

Yamaha VX1800CW (VX CRUISER WITH AUDIO_VX CRUISER) F4S3 2021 CYLINDER 2 Diagram

Description

Price

CYLINDER HEAD COMPLETE

6BH-W009A-20-94

$5,251.50

CYLINDER HEAD ASSY

6BH-11102-20-00

$861.34

. GUIDE, VALVE 1

6S5-11133-10-00

$43.67

. PIN, DOWEL

91809-16002-00

$2.27

. PIN, DOWEL

91809-16002-00

$2.27

. BOLT, FLANGE

90105-07009-00

$2.95

BOLT

6S5-12228-01-00

$18.93

WASHER

6HL-12456-00-00

$2.27

BOLT(64D)

97013-06055-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$1.84

GASKET, CYLINDER HEAD 1

6JC-11181-00-00

$119.63

HANGER, ENGINE 2

6BH-1111E-00-00

$23.47

BOLT, WITH WASHER

90119-06078-00

$2.27

HANGER, ENGINE

6BH-11119-00-00

$23.47

BOLT, WITH WASHER

97513-10525-00

$2.80

THERMOSTAT

6D3-12411-00-00

$95.40

COVER, THERMOSTAT

6BH-12413-00-00

$39.38

BOLT, FLANGE

90105-06035-00

$2.27

HOSE 3

6S5-12578-00-00

$62.11

TUBE (L850)

90447-28008-00

$18.49

CLIP

90467-240A0-00

$6.82
