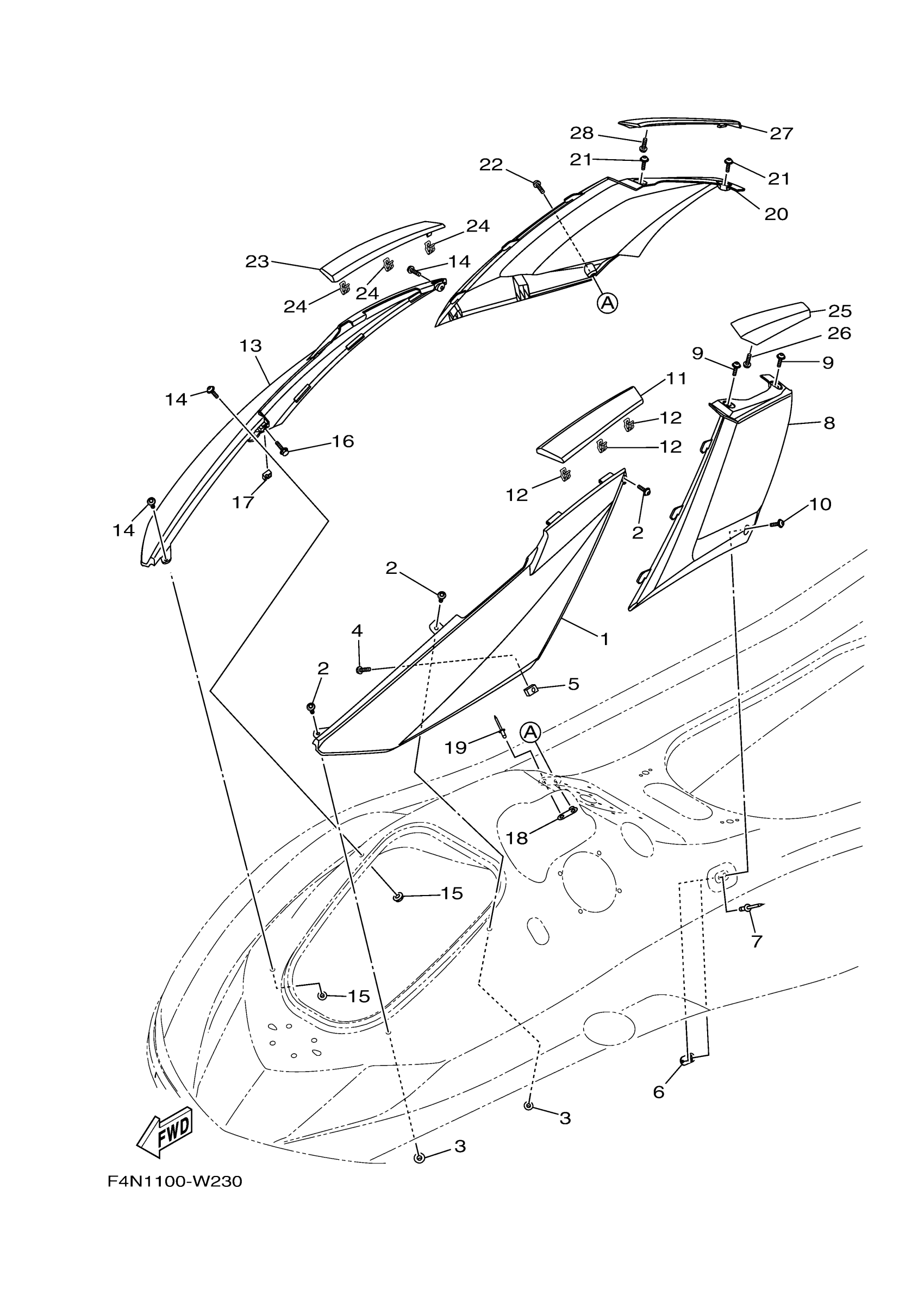

Yamaha VX1800AY (VX LIMITED HO) F4S7 2023 ENGINE HATCH 3 Diagram

#

Description
Price

1

COVER,SIDE 1 (PURW)

F4N-U377B-00-P0

$196.95

2

SCREW

F3X-U7823-12-00

$1.25

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

BOLT, WITH WASHER

90119-06880-00

$3.52

5

NUT

F3X-U517E-00-00

$1.23

6

PLATE, FIX

F2X-U5175-00-00

$1.80

7

RIVET (EU0)

90267-48938-00

$5.00

8

PAD, KNEE (PURW)

F4N-U353B-00-P0

$96.95

9

SCREW

F3X-U7823-12-00

$1.25

10

SCREW

F3X-U7823-02-00

$1.37

11

ORNAMENT LH (PURW)

F4N-U517W-01-P0

$71.20

12

CLIP

F3Y-U153K-00-00

$1.29

13

COVER,SIDE 2 (PURW)

F4N-U377C-00-P0

$120.03

14

SCREW

F3X-U7823-12-00

$1.25

15

NUT, LOCK

F2N-U142L-00-00

$1.00

16

BOLT, WITH WASHER

90119-06880-00

$3.52

17

NUT

F3X-U517E-00-00

$1.23

18

PLATE, FIX

F2X-U5175-00-00

$1.80

19

RIVET (EU0)

90267-48938-00

$5.00

20

PAD, KNEE 1 (PURW)

F4N-U353C-00-P0

Unavailable

21

SCREW

F3X-U7823-12-00

$1.25

22

SCREW

F3X-U7823-02-00

$1.37

23

ORNAMENT RH (PURW)

F4N-U517X-01-P0

Unavailable

24

CLIP

F3Y-U153K-00-00

$1.29

25

ORNAMENT, MIDDLE LH (PURW)

F4N-U89AA-00-P0

$74.23

26

SCREW

F2S-U13C1-00-00

$2.36

27

ORNAMENT, MIDDLE RH (PURW)

F4N-U89AB-00-P0

$56.05

28

SCREW

F2S-U13C1-00-00

$2.36
