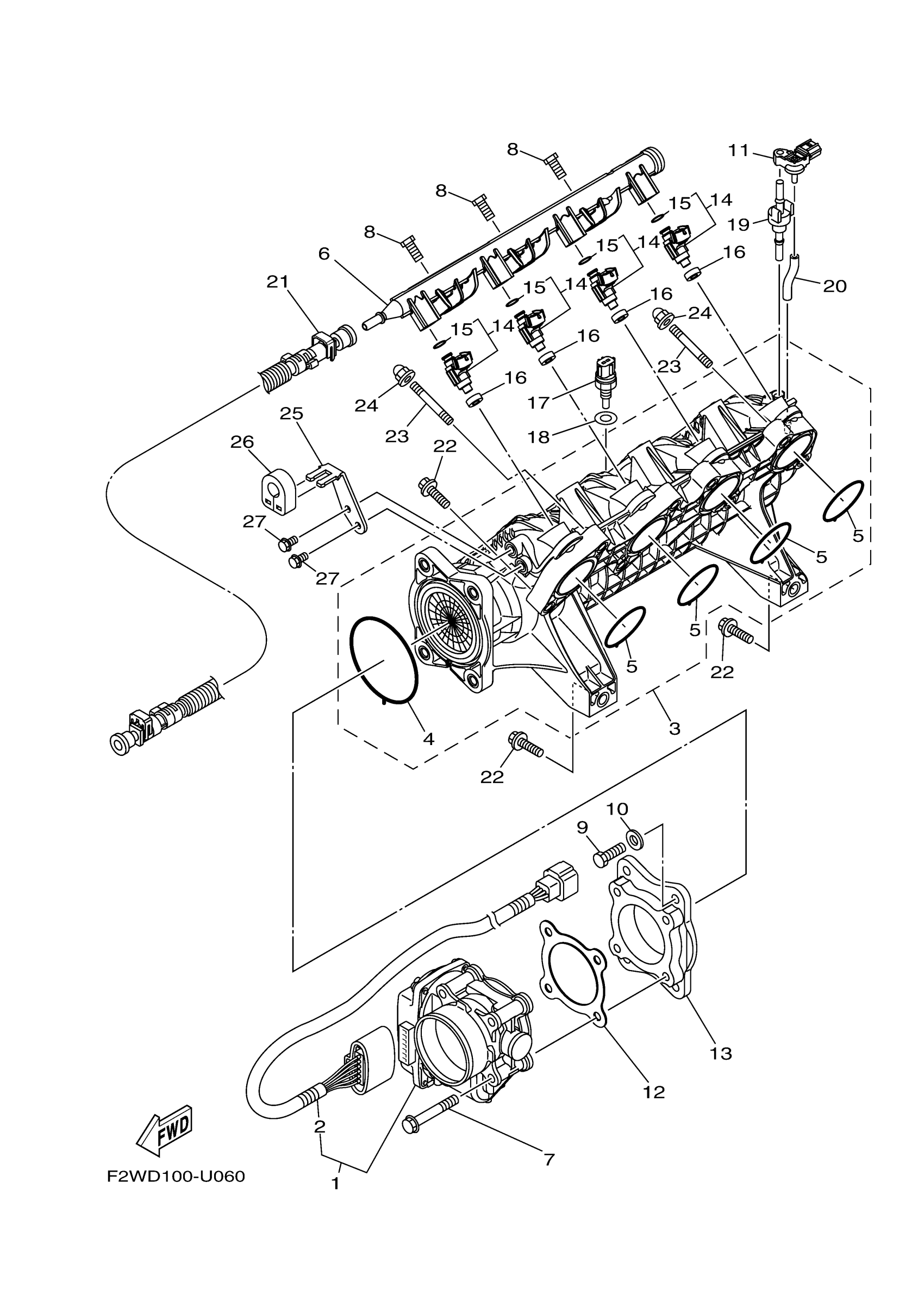

Yamaha VX1800AW (VX LIMITED HO) F4S1 2021 INTAKE 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6BH-13750-11-00

Unavailable

2

. WIRE, SUB LEAD

6S5-82509-00-00

$116.40

3

MANIFOLD, INTAKE 1

6BH-13641-10-00

$374.61

4

. GASKET, INSULATING

6BH-14156-00-00

$19.39

5

. GASKET

6BH-14126-00-00

$12.91

6

DELIVERY PIPE

6CS-12880-00-00

$162.67

7

BOLT, FLANGE

90105-08243-00

$1.72

8

BOLT

6CS-14446-00-00

$8.94

9

BOLT (682)

97013-08025-00

$6.34

10

.. WASHER, PLATE

92990-08600-00

$2.41

11

. SENSOR, PRESSURE

6BH-82380-00-00

$274.61

12

GASKET

6CR-14536-00-00

$9.11

13

SPACER

6CR-14163-00-00

$73.12

14

INJECTOR

6S5-13761-10-00

$164.15

15

. O-RING

68V-1416A-00-00

$11.01

16

. GASKET, MANIFOLD

8FP-13556-10-00

$5.69

17

THERMOSENSOR

65L-85886-00-00

$60.03

18

. WASHER

6S5-14285-00-00

$2.16

19

GROMMET

6BH-14445-00-00

$20.88

20

HOSE, VACUUM SENSING 3

6BH-13532-00-00

$6.27

21

FUEL HOSE ASSY

6AN-2450B-10-00

$120.88

22

BOLT, WITH WASHER

97513-08535-00

$1.72

23

BOLT, STUD

90116-08032-00

$3.41

24

NUT, CROWN(4BR)

90176-08080-00

Unavailable

25

PLATE, STAY

6CR-14572-00-00

$7.16

26

GROMMET

6CS-14445-01-00

$5.37

27

BOLT, FLANGE D/R (

95E33-06012-00

Unavailable
