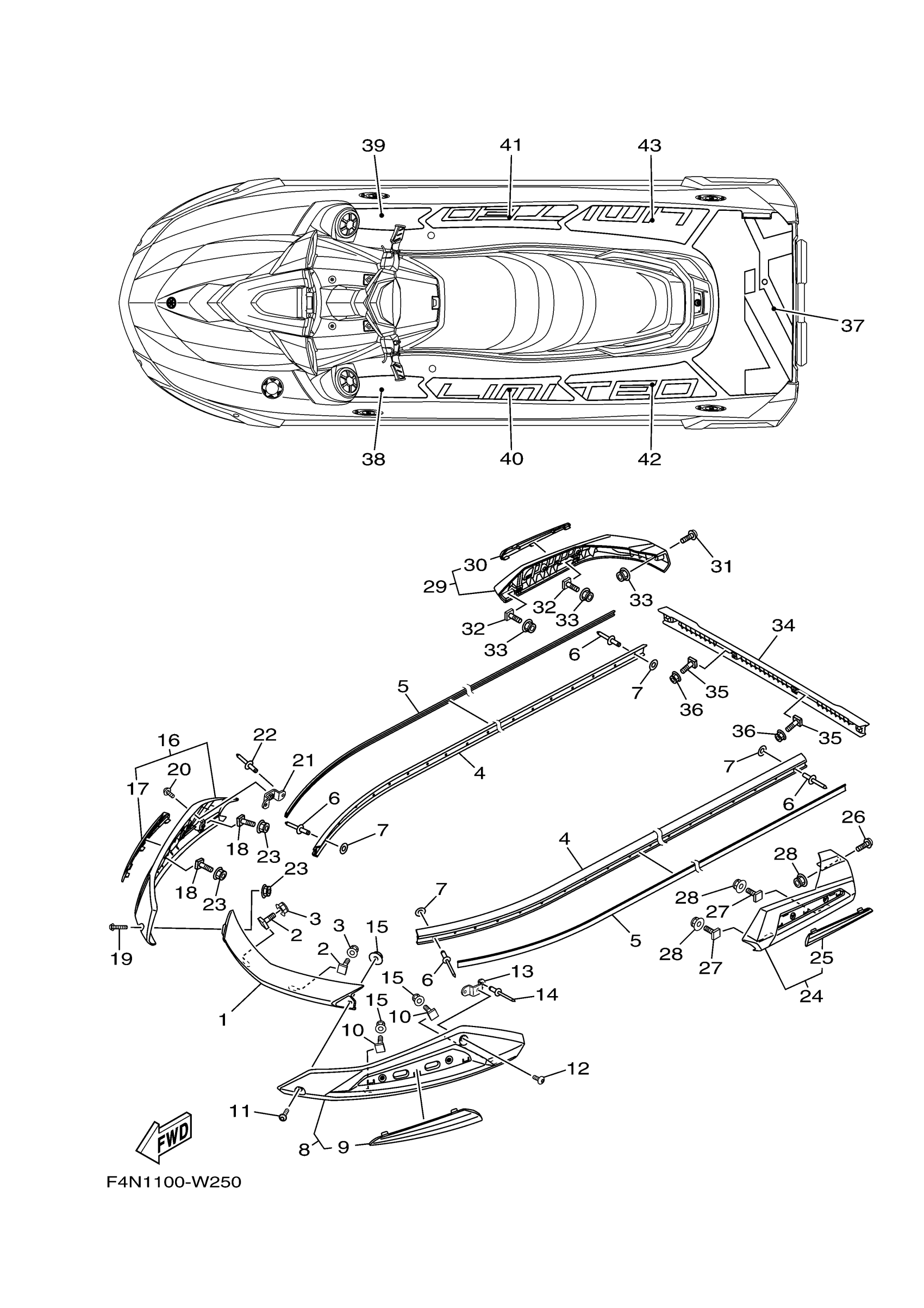

Yamaha VX1800AW (VX LIMITED HO) F4S1 2021 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F4N-U2511-00-00

$24.61

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

GUNWALE, SIDE

F4N-U2512-00-00

$32.82

5

INNER,GUNWALE

F4N-U2519-10-00

$17.90

6

RIVET, BLIND

90267-489U8-00

$1.37

7

WASHER

9299R-05200-00

$4.60

8

GUNWALE ASSY.

F4N-U2510-00-00

$35.65

9

. GUNWALL INSIDE

F4N-U2514-00-00

$60.32

10

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

11

SCREW

F3X-U7823-12-00

$1.25

12

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

13

BRACKET

F3X-U4949-00-00

$2.66

14

RIVET, BLIND

90267-489U6-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

$1.00

16

GUNWALE ASSY.

F4N-U2510-10-00

Unavailable

17

. GUNWALL INSIDE

F4N-U2514-10-00

$47.39

18

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

19

SCREW

F3X-U7823-12-00

$1.25

20

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

21

BRACKET

F3X-U4949-00-00

$2.66

22

RIVET, BLIND

90267-489U6-00

Unavailable

23

NUT, LOCK

F2N-U142L-00-00

$1.00

24

STERN GUNWALE COMP

F4N-U2504-00-00

Unavailable

25

. INNER GUNWALE, AFT

F4N-U255C-00-00

$17.22

26

SCREW

F4P-U7823-00-00

$1.43

27

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

28

NUT, LOCK

F2N-U142L-00-00

$1.00

29

STERN GUNWALE COMP

F4N-U2504-10-00

Unavailable

30

. INNER GUNWALE, AFT

F4N-U255C-10-00

$21.53

31

SCREW

F4P-U7823-00-00

$1.43

32

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

33

NUT, LOCK

F2N-U142L-00-00

$1.00

34

COVER, GUNWALE 1

F4P-U252C-02-00

Unavailable

35

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

36

NUT, LOCK

F2N-U142L-00-00

$1.00

37

MAT, UPPER

F4S-U3581-01-00

Unavailable

38

MAT, STEP 1

F4S-U351H-00-00

Unavailable

39

MAT, STEP 2

F4S-U351J-00-00

Unavailable

40

MAT, STEP 3

F4S-U351K-00-00

Unavailable

41

MAT, STEP 4

F4S-U351M-00-00

Unavailable

42

MAT, STEP 5

F4S-U351N-00-00

Unavailable

43

MAT, STEP 6

F4S-U351P-00-00

Unavailable
