Partiron

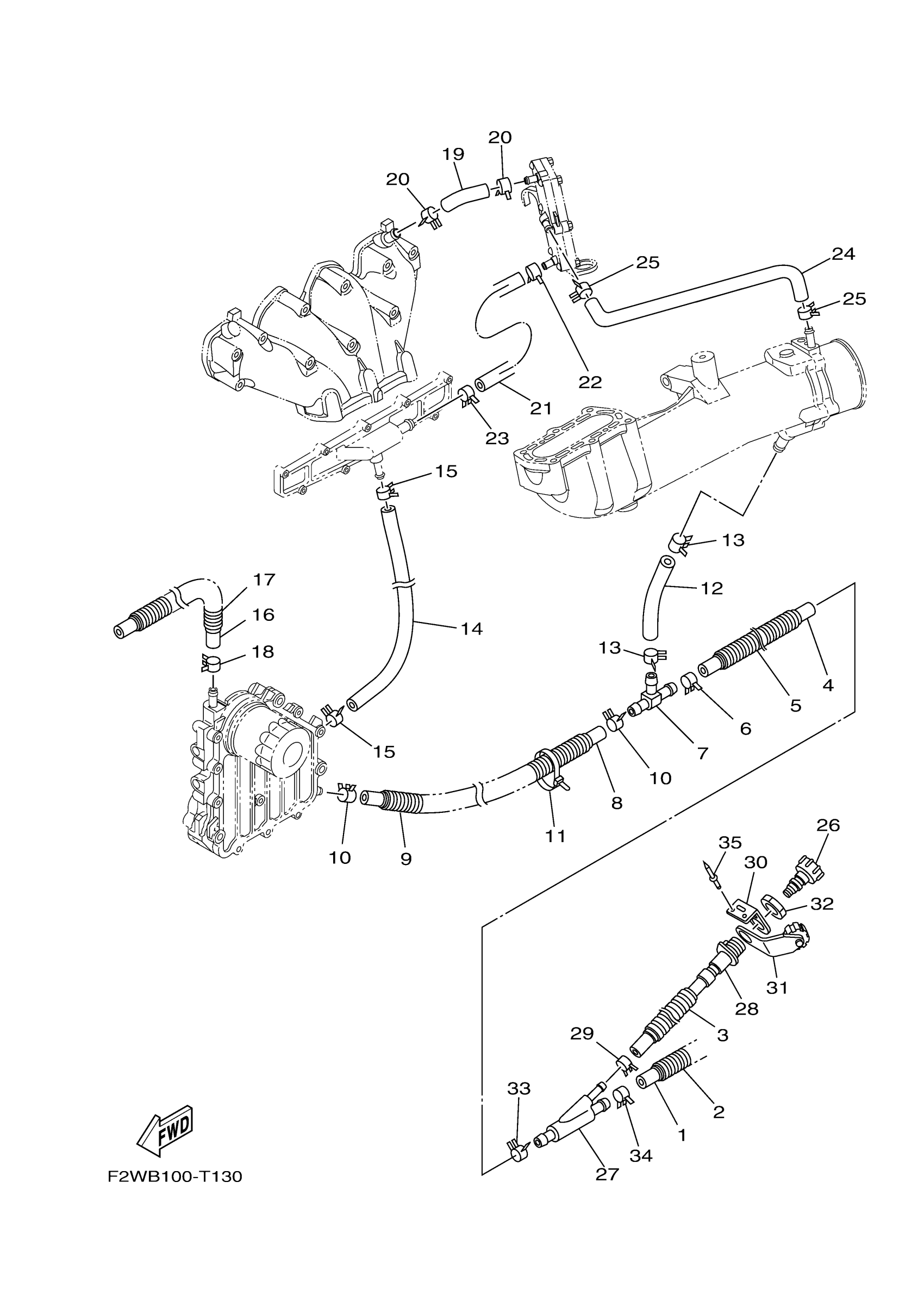

Yamaha VX1800AV (GP1800R HO) F2WE 2020 EXHAUST 2 Diagram

#

Description
Price

1

HOSE (L250)

90445-21806-00

$12.67

2

TUBE

F2T-U773D-20-00

Unavailable

3

TUBE (L485)

90447-19801-00

$3.51

4

HOSE 2

6S5-1243E-01-00

$21.53

5

TUBE

F2T-U773D-00-00

$1.34

6

CLIP

90467-200A3-00

$6.07

7

JOINT, HOSE 3

6BH-12584-00-00

$4.55

8

HOSE (L400)

90445-18012-00

$18.99

9

TUBE (L260)

90447-19005-00

$3.58

10

CLIP

90467-160A0-00

$3.03

11

CLAMP(3XW)

90464-35132-00

$6.67

12

HOSE 6

6S5-12589-01-00

Unavailable

13

CLIP

90467-200A3-00

$6.07

14

HOSE 5

6BH-1244H-00-00

$20.88

15

. CLIP

90467-150A1-00

$3.41

16

HOSE 5

6CN-12588-00-00

Unavailable

17

TUBE (L860)

90447-19021-00

$6.27

18

CLIP

90467-160A0-00

$3.03

19

HOSE 2

6ET-12577-00-00

$7.16

20

CLIP

90467-160A0-00

$3.03

21

HOSE 4

6ET-12579-00-00

$8.19

22

CLIP

90467-160A0-00

$3.03

23

CLIP

90467-170A5-00

$3.79

24

HOSE 1

6ET-12576-00-00

$13.99

25

CLIP

90467-160A0-00

$3.03

26

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.85

27

JOINT, HOSE 1

60E-12581-00-00

$11.77

28

JOINT ASSY

63M-12580-00-00

$76.37

29

CLIP

90467-150A5-00

$2.58

30

STAY

60E-12443-00-00

$3.03

31

CAP,1

6EY-84385-00-00

$10.63

32

NUT

EU0-61652-00-00

$11.77

33

CLIP

90467-200A3-00

$6.07

34

CLIP

90467-200A3-00

$6.07

35

RIVET (EU0)

90267-48938-00

$4.72
