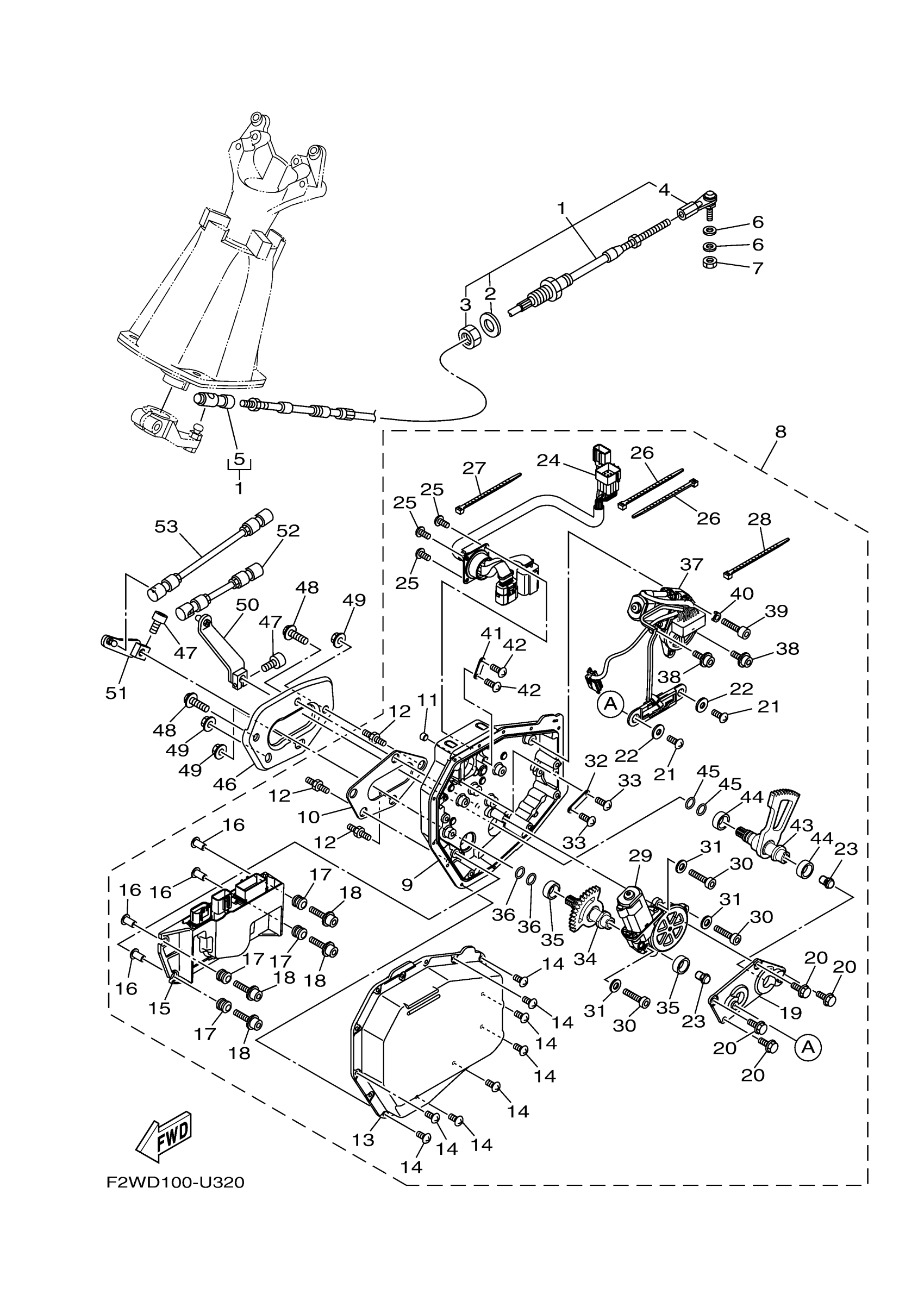

Yamaha VX1800AV (GP1800R HO) F2WE 2020 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

F2N-61481-02-00

Unavailable

2

. PACKING C

F1B-61438-00-00

$2.47

3

NUT

F1B-6151S-01-00

$13.63

4

. STUD, JOINT BALL

F1B-61461-02-00

$82.07

5

. BALL JOINT ASSY

F2N-61460-00-00

$47.04

6

WASHER, PLATE

90201-06906-00

$3.09

7

NUT

9538R-06700-00

$1.07

8

MOTOR ASSY.

F2W-6140B-04-00

Unavailable

9

. HOUSING

F3J-6152K-00-00

$172.04

10

. SEAL

F3J-63262-00-00

$18.37

11

. PLUG

F3J-613D0-00-00

$11.75

12

. BOLT, STUD

F3J-67369-00-00

$6.18

13

. COVER

F3J-6143J-00-00

$49.99

14

. SCREW

F3J-68198-00-00

$3.03

15

. CONTROL UNIT

F2W-68197-01-00

$548.51

16

. COLLAR

90387-06119-00

$3.96

17

DAMPER, IGNITION C

6A0-82317-01-00

$6.05

18

. BOLT

F3J-613B4-20-00

$4.41

19

. PLATE

F3J-61256-00-00

$29.40

20

. BOLT, HEXAGON

F3J-613B3-00-00

$3.53

21

. SCREW

F3J-68198-20-00

$3.53

22

. WASHER, PLAIN

F3J-613C3-10-00

$3.79

23

. MAGNET, SENSOR

F3J-60428-00-00

$19.37

24

. WIRE HARNESS ASSY

F2W-68270-01-00

$335.28

25

. SCREW

F3J-68198-00-00

$3.03

26

. CLAMP, WIRE

F3J-68273-00-00

$3.09

27

. CLAMP, WIRE

F3J-68273-00-00

$3.09

28

. CLAMP, WIRE

F3J-68273-00-00

$3.09

29

. MOTOR

F3J-68352-01-00

$267.63

30

. BOLT

F3J-613B4-00-00

$4.41

31

. WASHER, PLAIN

F3J-613C3-00-00

$3.53

32

. PLATE

F3J-61348-00-00

$4.41

33

. SCREW

F3J-68198-20-00

$3.53

34

. SHAFT, 1

F3J-60221-00-00

$170.57

35

. BUSH

F3J-61344-00-00

$3.41

36

. O-RING

F3J-613A5-00-00

$3.53

37

. MOTOR

F3J-68352-11-00

$358.81

38

. BOLT

F3J-613B4-10-00

$2.19

39

. BOLT

F3J-613B4-00-00

$4.41

40

. SPACER

F3J-61492-00-00

$7.06

41

. PLATE

F3J-61348-10-00

$4.41

42

. SCREW

F3J-68198-20-00

$3.53

43

. SHAFT, 2

F3J-60222-00-00

$163.22

44

. BUSH

F3J-61344-00-00

$3.41

45

. O-RING

F3J-613A5-00-00

$3.53

46

PLATE

F3Y-U8285-00-00

$14.69

47

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.09

48

BOLT, WITH WASHER

90119-08852-00

$4.01

49

NUT, LOCK

F3Y-U142L-00-00

$2.66

50

TRIM ARM ASSY

F3J-6150E-00-00

$76.46

51

SHIFT ARM ASSY

F3J-6150F-00-00

$66.16

52

ROD ASSY

F3J-6150A-00-00

$42.93

53

ROD ASSY 2

F3J-6150D-00-00

$39.51
