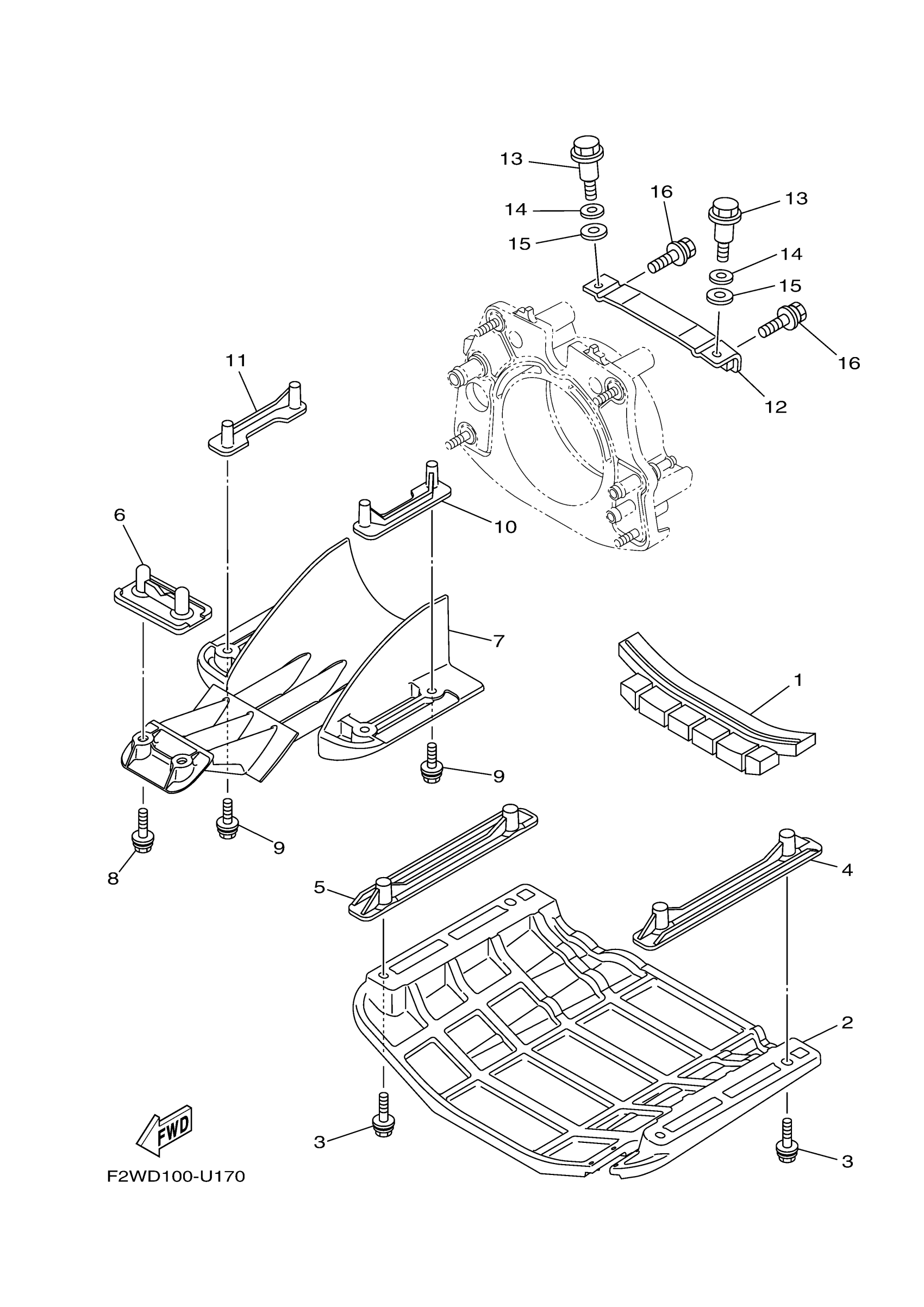

Yamaha VX1800AU (VXR) F2WD 2019 JET UNIT 4 Diagram

#

Description
Price

1

SPACER

F2X-U72C0-00-00

$15.79

2

PLATE 2

F3P-U273B-00-00

$122.04

3

BOLT, WITH WASHER

90119-08829-00

$4.09

4

BRACKET 2

F2X-U8572-00-00

$13.63

5

BRACKET 2

F2X-U8572-00-00

$13.63

6

BRACKET, 3

F2S-U8577-00-00

Unavailable

7

SCREEN, INTAKE

F3P-R1333-00-00

$69.10

8

BOLT, WITH WASHER

90119-08829-00

$4.09

9

BOLT, WITH WASHER

90119-08844-00

$1.37

10

BRACKET 1

F2X-U8571-00-00

$13.63

11

BRACKET 1

F2X-U8571-00-00

$13.63

12

BRACKET

F2C-U7557-01-00

$29.40

13

BOLT

90109-08043-00

$3.97

14

YBS66-12 WASHER,PLAIN

92990-12200-00

$5.75

15

GASKET

90430-12002-00

$1.70

16

BOLT, WITH WASHER

90119-08800-00

$4.31
