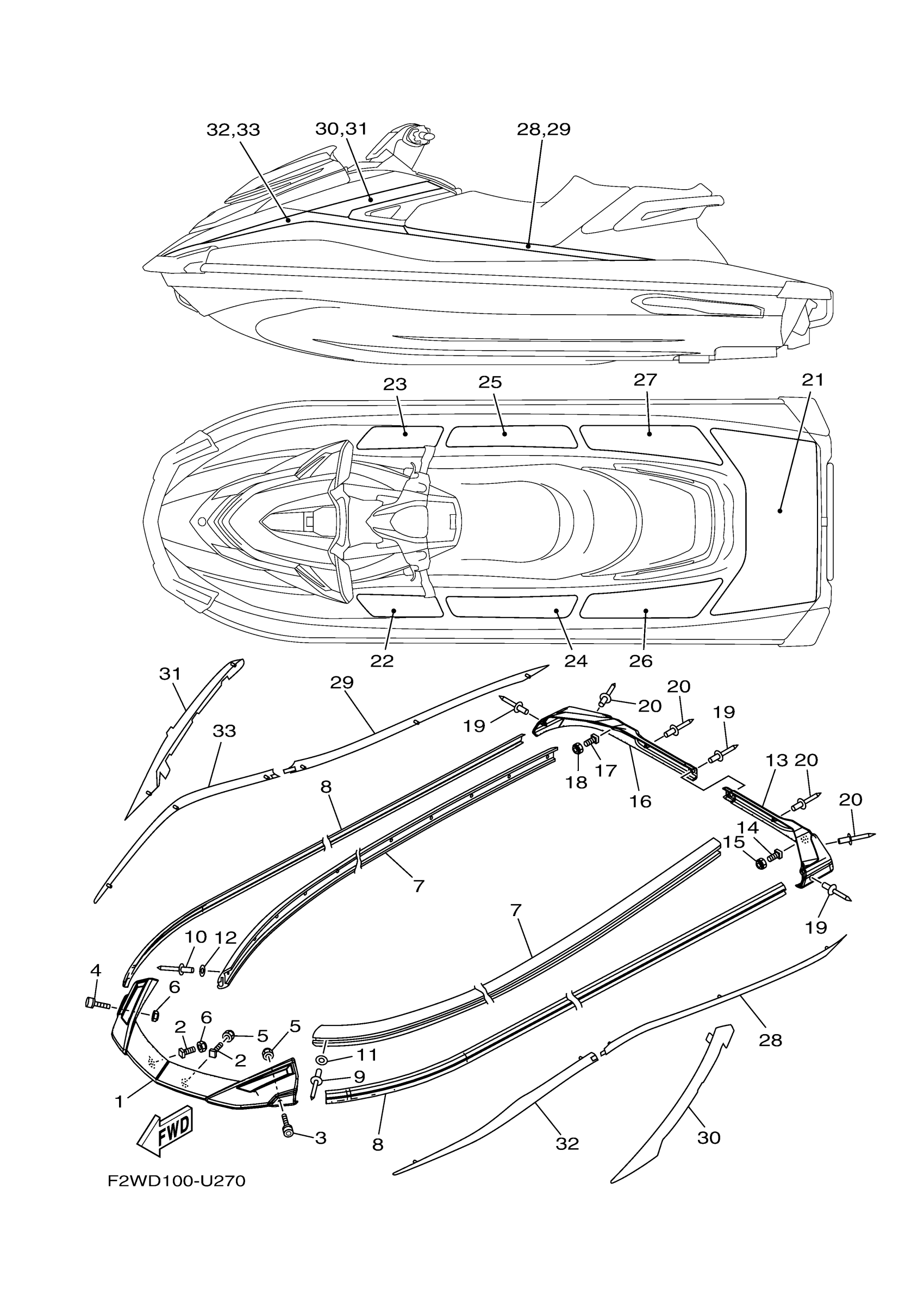

Yamaha VX1800AU (VXR) F2WD 2019 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW (YB)

F2X-U2511-10-00

Unavailable

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD

90110-06191-00

Unavailable

4

BOLT, HEXAGON SOCKET HEAD

90110-06191-00

Unavailable

5

NUT, LOCK

F2N-U142L-00-00

Unavailable

6

NUT, LOCK

F2N-U142L-00-00

Unavailable

7

GUNWALE, SIDE (YB)

F2X-U2512-10-00

Unavailable

8

INNER,GUNWALE (RED)

F2X-U2519-40-00

Unavailable

8

INNER,GUNWALE (YELLOW)

F2X-U2519-D0-00

Unavailable

9

RIVET, BLIND

90267-489U8-00

Unavailable

10

RIVET, BLIND

90267-489U8-00

Unavailable

11

WASHER

9299R-05200-00

Unavailable

12

WASHER

9299R-05200-00

Unavailable

13

GUNWALE, STERN 1 (YB)

F2X-U251D-10-00

Unavailable

14

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

Unavailable

16

GUNWALE, STERN 2 (YB)

F2X-U251E-10-00

Unavailable

17

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

18

NUT, LOCK

F2N-U142L-00-00

Unavailable

19

RIVET, BLIND

90267-48825-00

Unavailable

20

RIVET, BLIND

90267-48825-00

Unavailable

21

MAT, UPPER

F3P-U3581-00-00

Unavailable

21

MAT, UPPER

F3P-U3581-10-00

Unavailable

22

MAT, STEP 1

F3P-U351H-00-00

Unavailable

22

MAT, STEP 1

F3P-U351H-10-00

Unavailable

23

MAT, STEP 2

F3P-U351J-00-00

Unavailable

23

MAT, STEP 2

F3P-U351J-10-00

Unavailable

24

MAT, STEP 3

F3P-U351K-00-00

Unavailable

24

MAT, STEP 3

F3P-U351K-10-00

Unavailable

25

MAT, STEP 4

F3P-U351M-00-00

Unavailable

25

MAT, STEP 4

F3P-U351M-10-00

Unavailable

26

MAT, STEP 5

F3P-U351N-00-00

Unavailable

26

MAT, STEP 5

F3P-U351N-10-00

Unavailable

27

MAT, STEP 6

F3P-U351P-00-00

Unavailable

27

MAT, STEP 6

F3P-U351P-10-00

Unavailable

28

ORNAMENT, STERN LH (YB)

F2X-U89A8-00-00

Unavailable

28

ORNAMENT, STERN LH (BLUE)

F2X-U89A8-60-00

Unavailable

29

ORNAMENT, STERN RH (YB)

F2X-U89A9-00-00

Unavailable

29

ORNAMENT, STERN RH (BLUE)

F2X-U89A9-60-00

Unavailable

30

ORNAMENT, MIDDLE LH (YB)

F2X-U89AA-00-00

Unavailable

30

ORNAMENT, MIDDLE LH (BLUE)

F2X-U89AA-60-00

Unavailable

31

ORNAMENT, MIDDLE RH (YB)

F2X-U89AB-00-00

Unavailable

31

ORNAMENT, MIDDLE RH (BLUE)

F2X-U89AB-60-00

Unavailable

32

ORNAMENT, BOW LH (YB)

F2X-U89AC-00-00

Unavailable

32

ORNAMENT, BOW LH (BLUE)

F2X-U89AC-60-00

Unavailable

33

ORNAMENT, BOW RH (YB)

F2X-U89AD-00-00

Unavailable

33

ORNAMENT, BOW RH (BLUE)

F2X-U89AD-60-00

Unavailable
