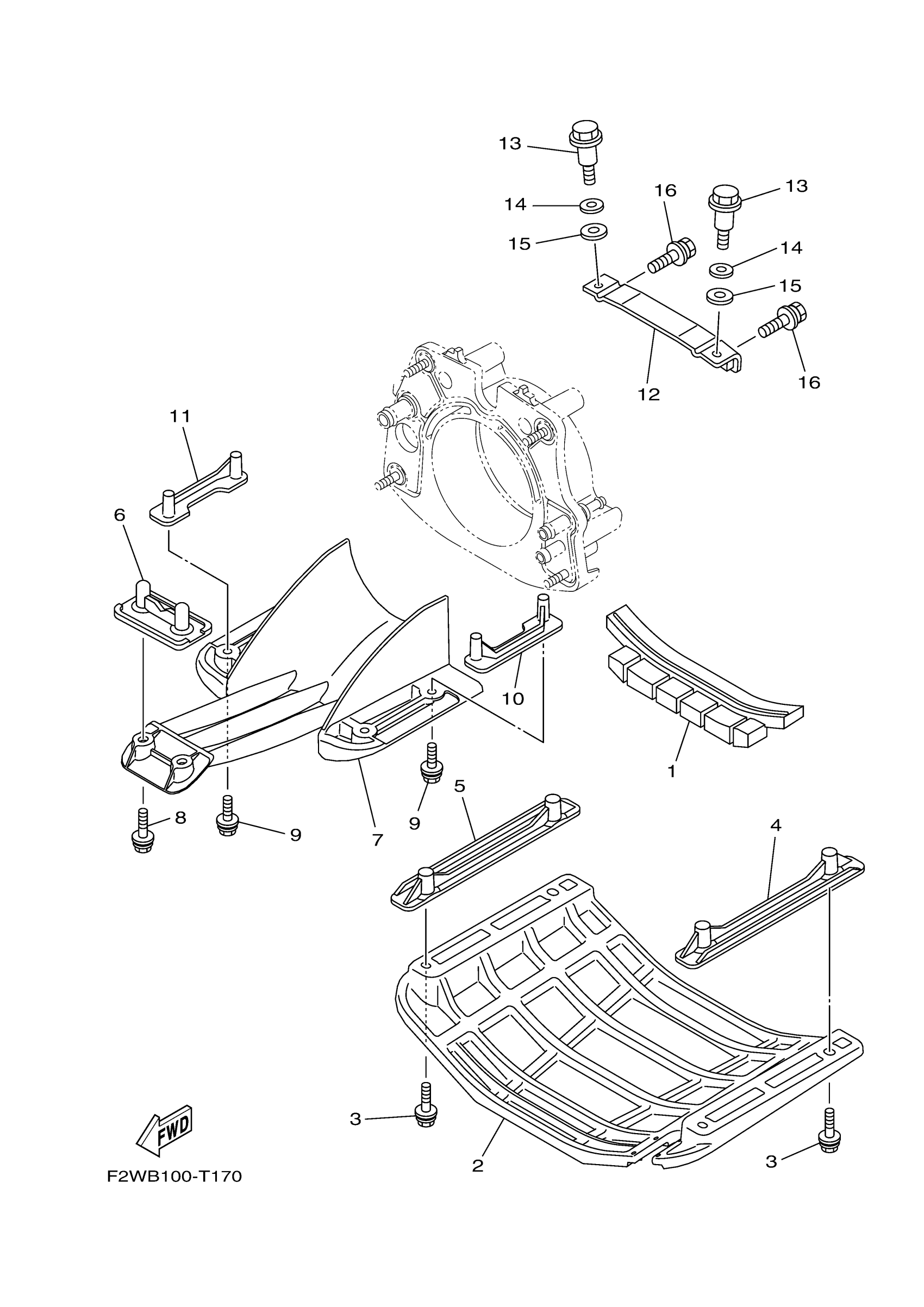

Yamaha VX1800AT (VXR) F2WB 2018 JET UNIT 4 Diagram

#

Description
Price

1

SPACER

F2X-U72C0-00-00

$15.07

2

PLATE 2

F2W-U273B-00-00

Unavailable

3

BOLT, WITH WASHER

90119-08829-00

$3.88

4

BRACKET 2

F2X-U8572-00-00

$12.91

5

BRACKET 2

F2X-U8572-00-00

$12.91

6

BRACKET, 3

F2S-U8577-00-00

$15.07

7

SCREEN, INTAKE

6EX-R1333-00-00

$73.35

8

BOLT, WITH WASHER

90119-08829-00

$3.88

9

BOLT, WITH WASHER

90119-08829-00

$3.88

10

BRACKET 1

F2X-U8571-00-00

$12.91

11

BRACKET 1

F2X-U8571-00-00

$12.91

12

BRACKET

F2C-U7557-01-00

$30.29

13

BOLT

90109-08043-00

$4.09

14

YBS66-12 WASHER,PLAIN

92990-12200-00

$5.75

15

GASKET

90430-12002-00

$1.81

16

BOLT, WITH WASHER

90119-08800-00

$4.09
