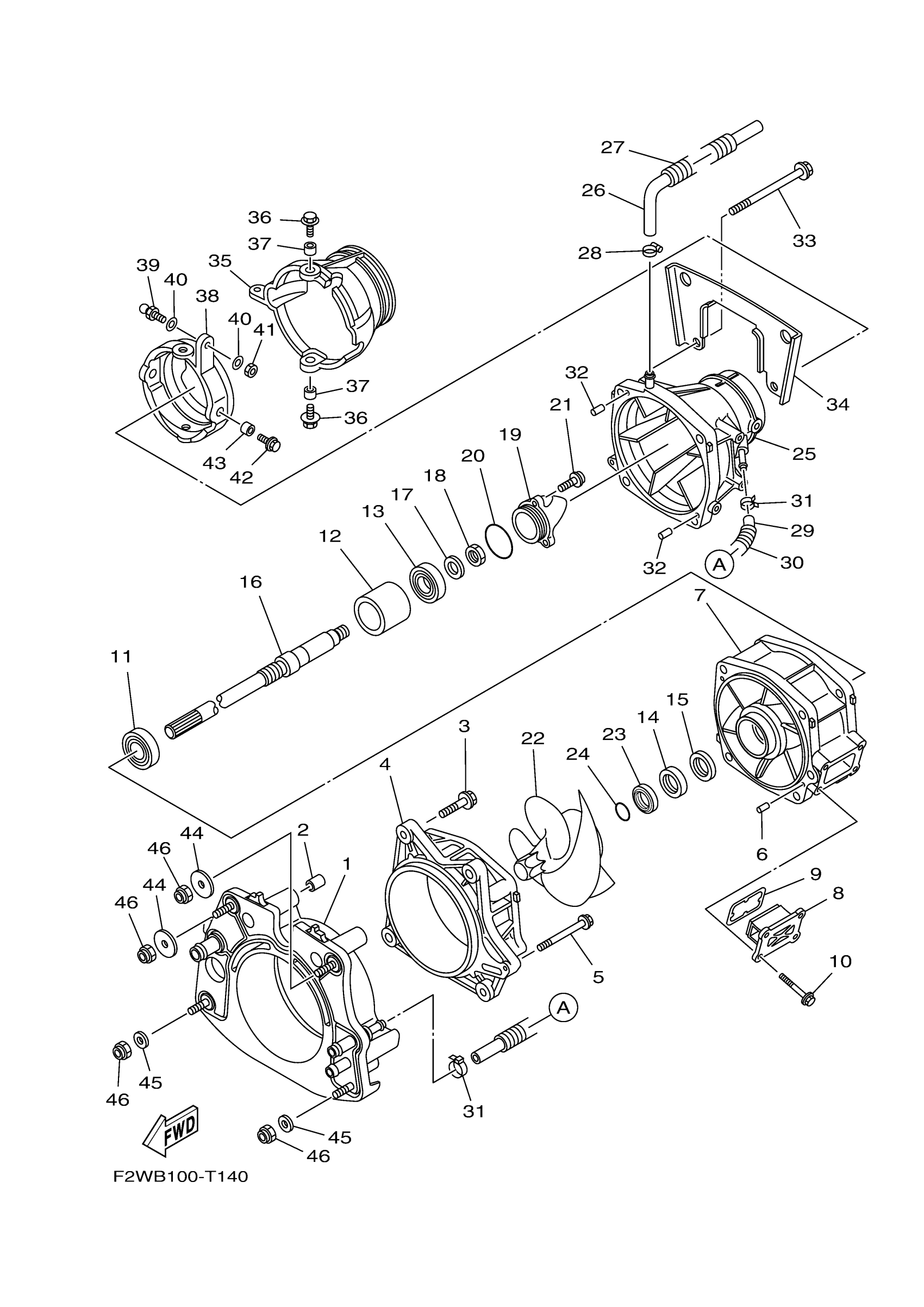

Yamaha VX1800AT (VXR) F2WB 2018 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6CS-G5831-20-00

$122.37

2

PIN, DOWEL(4JT)

99590-14016-00

$3.50

3

BOLT, WITH WASHER

90119-10811-00

$1.43

4

HOUSING, IMPELLER

6CR-R1312-00-00

$131.73

5

BOLT, WITH WASHER

90119-06894-00

$1.43

6

PIN, DOWEL (614)

93606-12019-00

$3.50

7

DUCT, IMPELLER

6CR-R1315-00-00

$97.42

8

FILTER

6EX-G6882-10-00

$7.89

9

. O-RING

66V-42414-00-00

$5.31

10

BOLT,WITH WASHER

90119-06890-00

$1.15

11

BEARING

93306-20654-00

$63.83

12

SPACER 1

6CS-G5538-00-00

$34.45

13

BEARING(3RR)

93306-30560-00

Unavailable

14

. OIL SEAL

93102-31009-00

$76.11

15

. OIL SEAL

93101-31001-00

$31.57

16

SHAFT, DRIVE

6S5-G5511-00-00

$286.55

17

WASHER

92990-20600-00

$4.17

18

NUT

95312-20700-00

$3.22

19

CAP

6AN-R1326-00-00

$18.66

20

O-RING

93210-54010-00

$2.58

21

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.30

22

IMPELLER

6AP-R1321-20-00

$182.16

23

SPACER

6BH-R1348-00-00

$22.63

24

O-RING (30X)

93210-30611-00

Unavailable

25

NOZZLE

6BH-R1318-01-00

$270.13

26

HOSE 1

6CN-U72M2-00-00

$5.75

27

HOSE (L175)

90446-24M46-00

$1.34

28

BAND, HOSE 18

90601-118UF-00

$2.22

29

HOSE

6ET-U215E-00-00

$5.15

30

HOSE, WITH SPRING (L205)

90447-15001-00

$3.81

31

CLIP

90467-141A0-00

$5.37

32

PIN, DOWEL (614)

93606-12019-00

$3.50

33

BOLT, WITH WASHER

90119-10807-00

$5.75

34

BRACKET

6EY-R1959-00-00

$15.07

35

NOZZLE, DEFLECTOR

6S5-R1313-01-00

$25.11

36

BOLT, WITH WASHER

90119-08852-00

$4.01

37

COLLAR(6R7)

90387-08M06-00

Unavailable

38

RING,TRIM

6AN-R1190-00-00

$22.97

39

STUD, JOINT BALL

6ET-U1461-10-00

Unavailable

40

WASHER,PLATE

90201-068M4-00

Unavailable

41

NUT(650)

95380-06700-00

Unavailable

42

BOLT, WITH WASHER

90119-08852-00

$4.01

43

COLLAR(6R7)

90387-08M06-00

Unavailable

44

WASHER

F1S-U725E-01-00

$8.61

45

WASHER, PLATE

90201-10801-00

$3.65

46

NUT, NYLON

9572R-10300-00

$3.52
