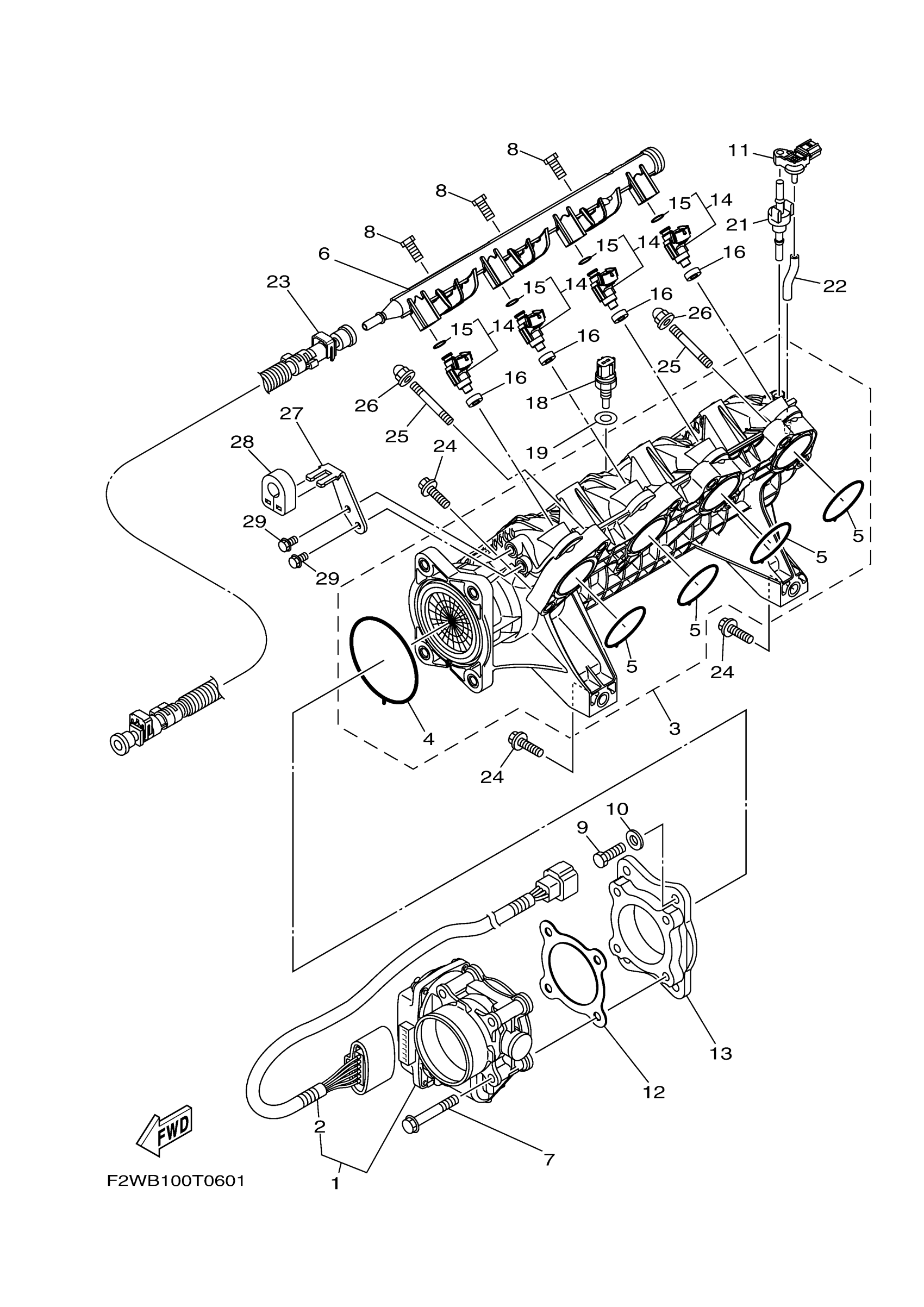

Yamaha VX1800AT (VXR) F2WB 2018 INTAKE 1 Diagram
#
Description
Price
1
THROTTLE BODY ASSY
6BH-13750-11-00
Unavailable
2
. WIRE, SUB LEAD
6S5-82509-00-00
Unavailable
3
MANIFOLD, INTAKE 1
6BH-13641-10-00
Unavailable
4
. GASKET, INSULATING
6BH-14156-00-00
Unavailable
5
. GASKET
6BH-14126-00-00
Unavailable
6
DELIVERY PIPE
6CS-12880-00-00
Unavailable
7
BOLT, FLANGE
90105-08243-00
Unavailable
8
BOLT
6CS-14446-00-00
Unavailable
9
BOLT (682)
97013-08025-00
$8.49
10
.. WASHER, PLATE
92990-08600-00
Unavailable
11
. SENSOR, PRESSURE
6BH-82380-00-00
Unavailable
12
GASKET
6CR-14536-00-00
Unavailable
13
SPACER
6CR-14163-00-00
Unavailable
14
INJECTOR
6S5-13761-10-00
Unavailable
15
. O-RING
68V-1416A-00-00
Unavailable
16
. GASKET, MANIFOLD
8FP-13556-10-00
Unavailable
18
THERMOSENSOR
65L-85886-00-00
Unavailable
19
. WASHER
6S5-14285-00-00
Unavailable
21
GROMMET
6BH-14445-00-00
Unavailable
22
HOSE, VACUUM SENSING 3
6BH-13532-00-00
Unavailable
23
FUEL HOSE ASSY
6CN-2450B-10-00
Unavailable
24
BOLT, WITH WASHER
97513-08535-00
Unavailable
25
BOLT, STUD
90116-08032-00
Unavailable
26
NUT, CROWN(4BR)
90176-08080-00
Unavailable
27
PLATE, STAY
6CR-14572-00-00
Unavailable
28
GROMMET
6CS-14445-01-00
Unavailable
29
BOLT, FLANGE(2UJ)
95024-06012-00
Unavailable
