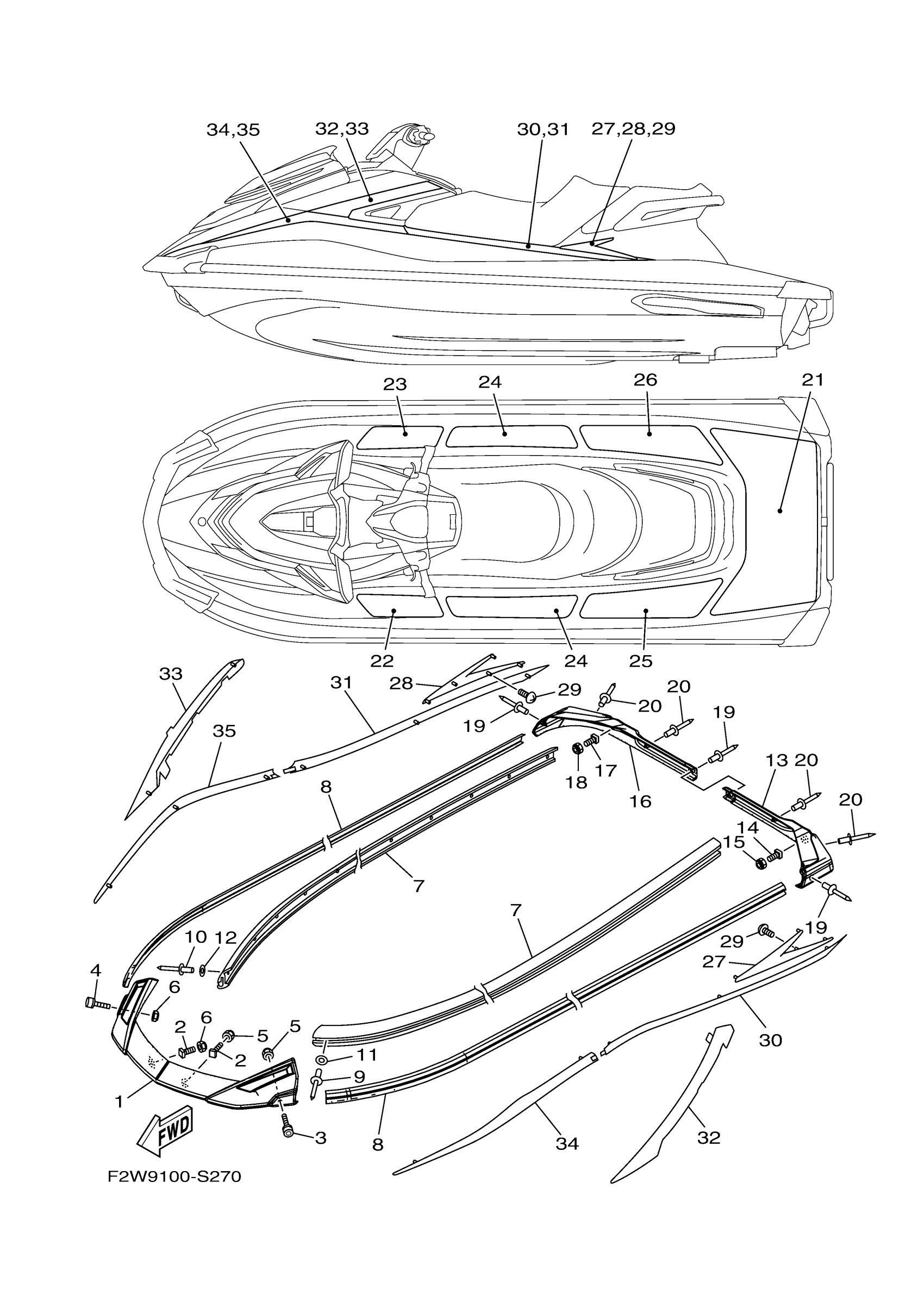

Yamaha VX1800AT (VXR) F2WB 2018 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW (DGS1)

F2X-U2511-00-00

$57.34

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD

90110-06191-00

$2.82

4

BOLT, HEXAGON SOCKET HEAD

90110-06191-00

$2.82

5

NUT, LOCK

F2N-U142L-00-00

$1.43

6

NUT, LOCK

F2N-U142L-00-00

$1.43

7

GUNWALE, SIDE (DGS1)

F2X-U2512-00-00

$42.63

8

INNER,GUNWALE (RED)

F2X-U2519-40-00

$31.61

8

INNER,GUNWALE

F2X-U2519-80-00

$26.35

9

RIVET, BLIND

90267-489U8-00

$1.37

10

RIVET, BLIND

90267-489U8-00

$1.37

11

WASHER

9299R-05200-00

$4.60

12

WASHER

9299R-05200-00

$4.60

13

GUNWALE, STERN 1 (DGS1)

F2X-U251D-00-00

$20.15

14

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

$1.43

16

GUNWALE, STERN 2 (DGS1)

F2X-U251E-00-00

$22.78

17

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

18

NUT, LOCK

F2N-U142L-00-00

$1.43

19

RIVET, BLIND

90267-48825-00

$2.16

20

RIVET, BLIND

90267-48825-00

$2.16

21

MAT, UPPER

F2X-U3581-01-00

$74.99

22

MAT, STEP 1

F2X-U351H-00-00

$20.57

23

MAT, STEP 2

F2X-U351J-00-00

$20.15

24

MAT, STEP 3

F2X-U351K-00-00

$17.22

25

MAT, STEP 4

F2X-U351M-00-00

$25.83

26

MAT, STEP 5

F2X-U351N-00-00

$25.83

27

ORNAMENT, LH

F3P-U517W-00-00

$13.96

27

ORNAMENT, LH

F3P-U517W-10-00

$15.43

28

ORNAMENT, RH

F3P-U517X-00-00

$13.96

28

ORNAMENT, RH

F3P-U517X-10-00

$15.43

29

SCREW

F2W-U13C1-01-00

Unavailable

30

ORNAMENT, STERN LH (YB)

F2X-U89A8-00-00

$71.75

30

ORNAMENT, STERN LH (DGS1)

F2X-U89A8-10-00

$28.66

31

ORNAMENT, STERN RH (YB)

F2X-U89A9-00-00

$27.19

31

ORNAMENT, STERN RH (DGS1)

F2X-U89A9-10-00

$219.10

32

ORNAMENT, MIDDLE LH (YB)

F2X-U89AA-00-00

$12.49

32

ORNAMENT, MIDDLE LH (DGS1)

F2X-U89AA-10-00

$13.22

33

ORNAMENT, MIDDLE RH (YB)

F2X-U89AB-00-00

$12.40

33

ORNAMENT, MIDDLE RH (DGS1)

F2X-U89AB-10-00

$141.16

34

ORNAMENT, BOW LH (YB)

F2X-U89AC-00-00

$24.99

34

ORNAMENT, BOW LH (DGS1)

F2X-U89AC-10-00

$120.57

35

ORNAMENT, BOW RH (YB)

F2X-U89AD-00-00

$44.98

35

ORNAMENT, BOW RH (DGS1)

F2X-U89AD-10-00

$26.46
