Partiron

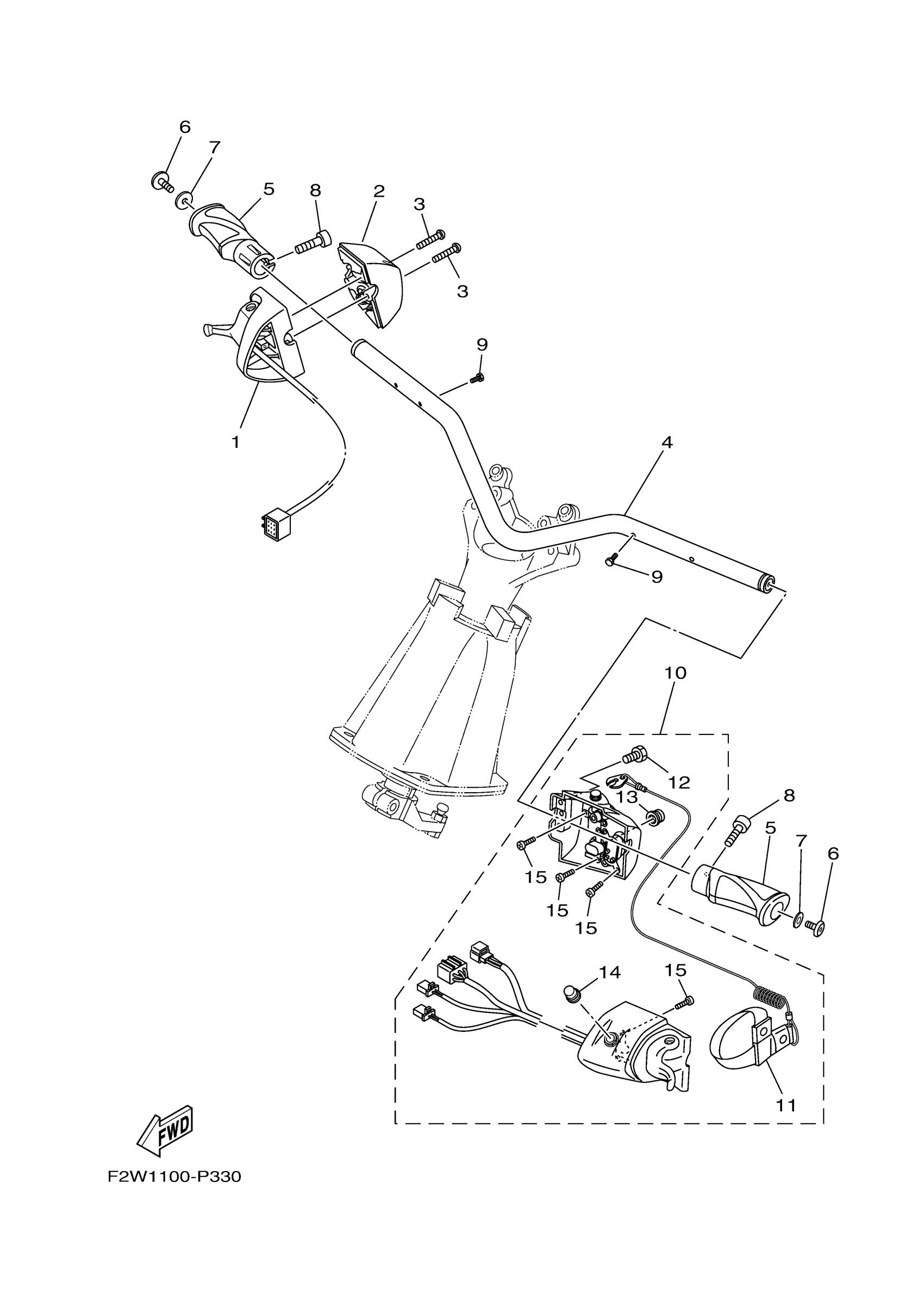

Yamaha VX1800AS (VXR) F2W9 2017 STEERING 1 Diagram

#

Description
Price

1

THROTTLE LEVER COMP

6CS-14305-13-00

$690.89

2

CASE

6EX-82154-00-00

$27.26

3

BOLT, THROTTLE

6CS-6725F-00-00

$4.44

4

HANDLE

F2X-U1552-10-00

$58.88

5

GRIP,HANDLE

F2S-U155D-03-00

$21.08

6

BOLT, HEXAGON SOCKET HEAD

90110-06383-00

$3.70

7

WASHER, PLATE

90201-068G0-00

$0.93

8

BOLT

F2S-U1516-00-00

$2.80

9

BOLT

91380-04030-00

$0.91

10

SWITCH BOX ASSY

F3J-68310-03-00

Unavailable

11

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

12

BOLT, THROTTLE

6CS-6725F-00-00

$4.44

13

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

14

. START BUTTON COMP

FK7-68313-02-00

$11.31

15

. SCREW, TAPPING

97780-30610-00

$1.26
