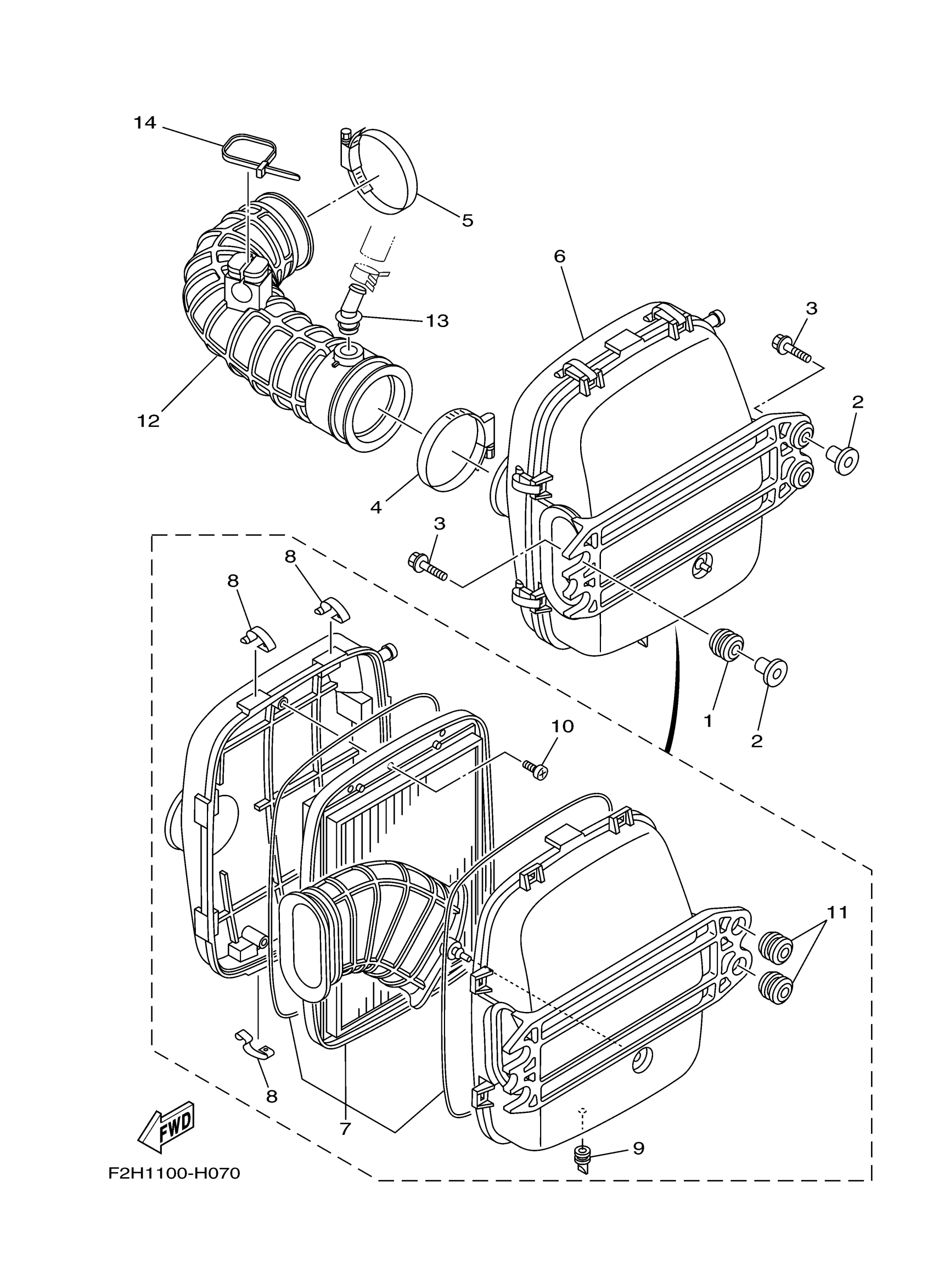

Yamaha VX1800AS (VXR) F2W9 2017 INTAKE 2 Diagram

#

Description

Price

1

GROMMET

90480-22M15-00

Unavailable

2

COLLAR

90387-08M37-00

Unavailable

3

BOLT, WITH WASHER

90119-08187-00

Unavailable

4

HOSE CLAMP ASSY

90450-90002-00

Unavailable

5

HOSE CLAMP ASSY

90450-90002-00

Unavailable

6

AIR CLEANER ASSY.

6S5-E4410-02-00

Unavailable

7

ELEMENT, AIR CLEAN

6S5-E4451-01-00

$219.99

8

. HOOK

6S5-E4436-00-00

Unavailable

9

. RUBBER, SEAL 2

6S5-G2717-00-00

Unavailable

10

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

$2.70

11

. GROMMET

90480-22801-00

Unavailable

12

PIPE

6BH-E4419-00-00

Unavailable

13

CONNECTION

6BH-R1142-10-00

Unavailable

14

CLAMP(JN6)

90464-40825-00

$3.05
