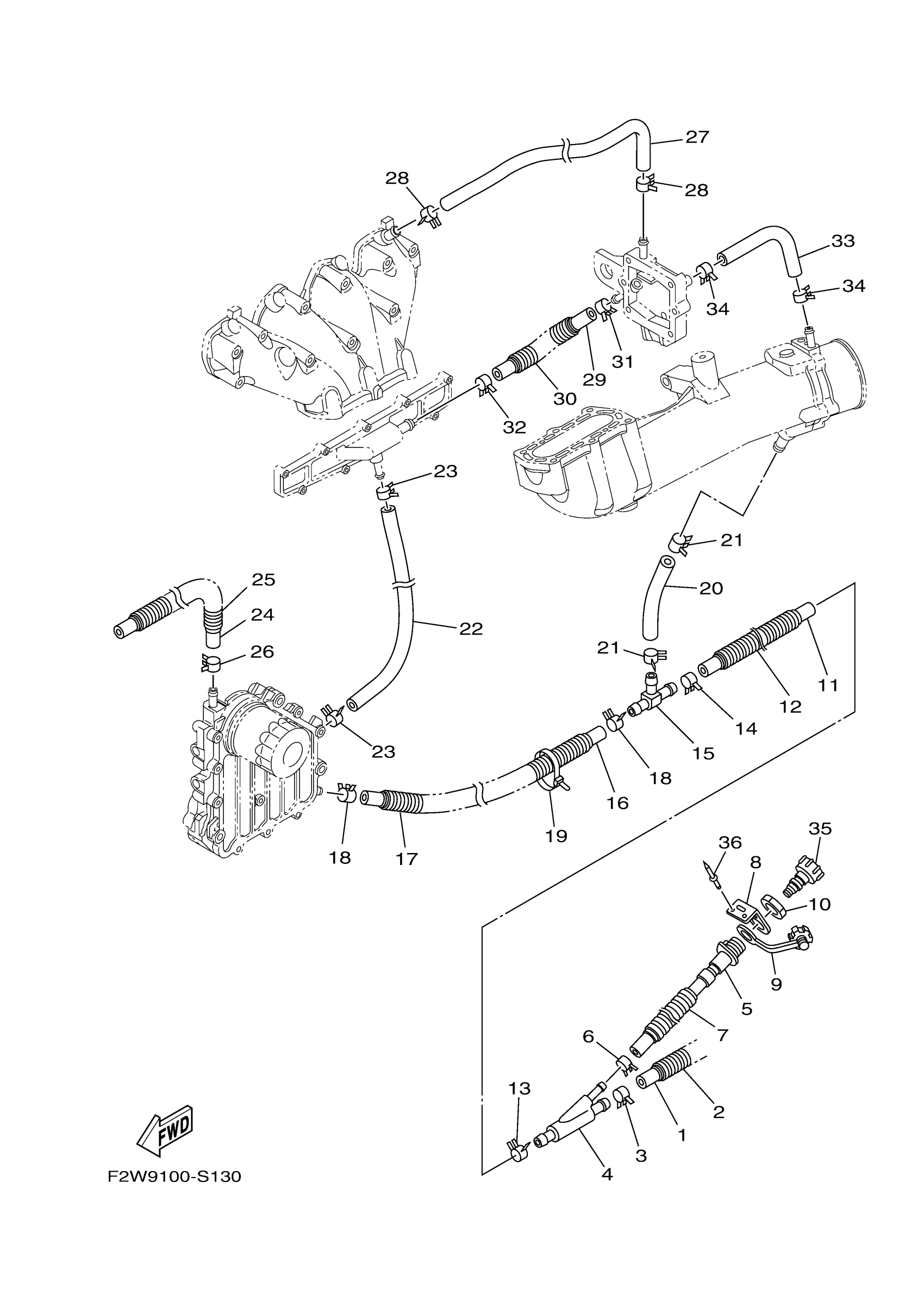

Yamaha VX1800AS (VXR) F2W9 2017 EXHAUST 2 Diagram

#

Description
Price

1

HOSE (L250)

90445-21806-00

$12.67

2

TUBE

F2T-U773D-20-00

Unavailable

3

CLIP

90467-200A3-00

$6.07

4

JOINT, HOSE 1

60E-12581-00-00

$11.77

5

JOINT ASSY

63M-12580-00-00

$76.37

6

CLIP

90467-150A5-00

$2.58

7

TUBE (L485)

90447-19801-00

$3.51

8

STAY

60E-12443-00-00

$3.03

9

CAP,1

682-84385-01-00

$7.21

10

NUT

EU0-61652-00-00

$11.77

11

HOSE 2

6S5-1243E-01-00

$21.53

12

TUBE

F2T-U773D-00-00

$1.34

13

CLIP

90467-200A3-00

$6.07

14

CLIP

90467-200A3-00

$6.07

15

JOINT, HOSE 3

6BH-12584-00-00

$4.55

16

HOSE (L400)

90445-18012-00

$18.99

17

TUBE (L260)

90447-19005-00

$3.58

18

CLIP

90467-160A0-00

$3.03

19

CLAMP(3XW)

90464-35132-00

Unavailable

20

HOSE 6

6S5-12589-01-00

Unavailable

21

CLIP

90467-200A3-00

$6.07

22

HOSE 5

6BH-1244H-00-00

$20.88

23

. CLIP

90467-150A1-00

$3.41

24

HOSE 5

6CN-12588-00-00

Unavailable

25

TUBE (L860)

90447-19021-00

$6.27

26

CLIP

90467-160A0-00

$3.03

27

HOSE 2

6BH-12577-00-00

$20.88

28

CLIP

90467-160A0-00

$3.03

29

HOSE 4

6S5-12579-00-00

$19.39

30

TUBE (L150)

90447-19011-00

$2.69

31

CLIP

90467-160A0-00

$3.03

32

CLIP

90467-170A5-00

$3.79

33

HOSE (L220)

90445-16013-00

$11.18

34

CLIP

90467-160A0-00

$3.03

35

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.85

36

RIVET (EU0)

90267-48938-00

$4.72
