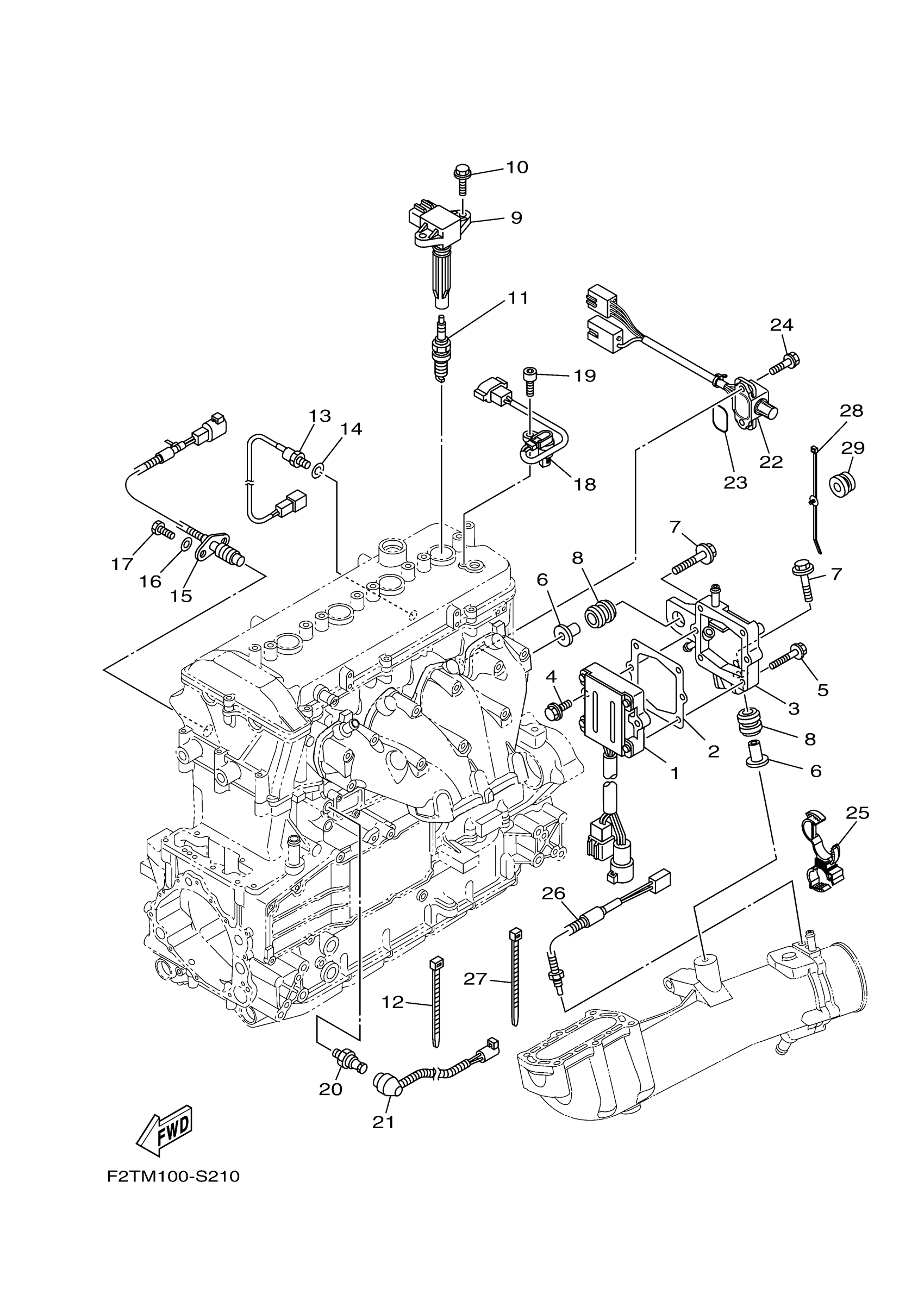

Yamaha VX1800AS (VXR) F2W9 2017 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

6S5-81960-11-00

Unavailable

2

PLATE, RECTIFIER FITTING

6S5-81975-00-00

Unavailable

3

COVER, RECTIFIER

6S5-81972-01-94

Unavailable

4

BOLT, WITH WASHER

90119-06MA3-00

Unavailable

5

BOLT, WITH WASHER

90119-06048-00

Unavailable

6

COLLAR

90387-08M37-00

Unavailable

7

BOLT, WITH WASHER

90119-08187-00

Unavailable

8

GROMMET

90480-22M15-00

Unavailable

9

IGNITION COIL ASSY

6S5-82310-10-00

$403.99

10

BOLT,FLANGE (EW2)

90105-06903-00

$9.49

11

PLUG, SPARK (NGK LFR6A-00)

LFR-6A000-00-00

Unavailable

12

CLAMP

90465-13M18-00

Unavailable

13

THERMOSENSOR ASSY

61A-85790-01-00

Unavailable

14

WASHER, PLATE

92990-10600-00

Unavailable

15

THERMO SWITCH ASSY

6CR-82560-00-00

Unavailable

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

SENSOR, CAM POSITION

60E-85896-02-00

Unavailable

19

BOLT,SOCKET

91380-06016-00

Unavailable

20

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

Unavailable

21

LEAD WIRE ASSY

6S5-81315-01-00

Unavailable

22

EARTH PLATE COMP.

6CS-8273J-11-00

Unavailable

23

O-RING (341)

93210-32172-00

Unavailable

24

BOLT, WITH WASHER

90119-06MA3-00

Unavailable

25

CLAMP

90464-20008-00

Unavailable

26

THERMOSENSOR ASSY

6AA-85790-00-00

Unavailable

27

CLAMP

90464-20005-00

Unavailable

28

CLAMP

90464-31002-00

Unavailable

29

GROMMET 437147470000

90480-20132-00

Unavailable
