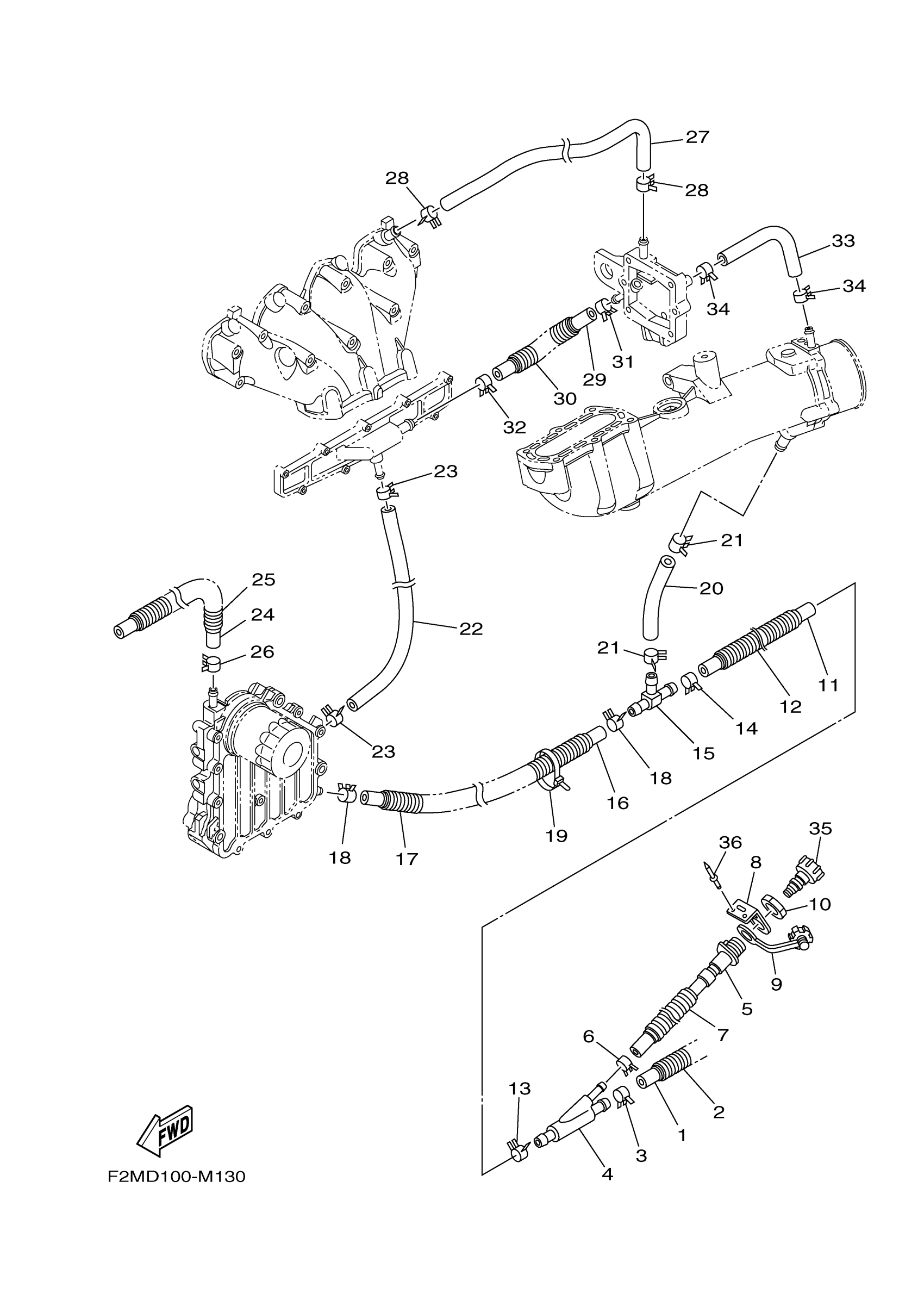

Yamaha VX1800AR (VXR) F2W5 2016 EXHAUST 2 Diagram
#
1
HOSE (L250)
90445-21806-00
Unavailable
2
TUBE
F2T-U773D-20-00
Unavailable
3
CLIP
90467-200A3-00
Unavailable
4
JOINT, HOSE 1
60E-12581-00-00
Unavailable
5
JOINT ASSY
63M-12580-00-00
Unavailable
6
CLIP
90467-150A5-00
Unavailable
7
TUBE (L485)
90447-19801-00
Unavailable
8
STAY
60E-12443-00-00
Unavailable
9
CAP,1
682-84385-01-00
Unavailable
10
NUT
EU0-61652-00-00
Unavailable
11
HOSE 2
6S5-1243E-01-00
Unavailable
12
TUBE
F2T-U773D-00-00
Unavailable
13
CLIP
90467-200A3-00
Unavailable
14
CLIP
90467-200A3-00
Unavailable
15
JOINT, HOSE 3
6BH-12584-00-00
Unavailable
16
HOSE (L400)
90445-18012-00
Unavailable
17
TUBE (L260)
90447-19005-00
Unavailable
18
CLIP
90467-160A0-00
Unavailable
19
CLAMP(3XW)
90464-35132-00
Unavailable
20
HOSE 6
6S5-12589-01-00
Unavailable
21
CLIP
90467-200A3-00
Unavailable
22
HOSE 5
6BH-1244H-00-00
Unavailable
23
. CLIP
90467-150A1-00
Unavailable
24
HOSE 5
6CN-12588-00-00
Unavailable
25
TUBE (L860)
90447-19021-00
Unavailable
26
CLIP
90467-160A0-00
Unavailable
27
HOSE 2
6BH-12577-00-00
Unavailable
28
CLIP
90467-160A0-00
Unavailable
29
HOSE 4
6S5-12579-00-00
Unavailable
30
TUBE (L150)
90447-19011-00
Unavailable
31
CLIP
90467-160A0-00
Unavailable
32
CLIP
90467-170A5-00
Unavailable
33
HOSE (L220)
90445-16013-00
Unavailable
34
CLIP
90467-160A0-00
Unavailable
35
CONDUCTION ASSY (US)
67X-E2590-00-00
Unavailable
36
RIVET (EU0)
90267-48938-00
Unavailable
