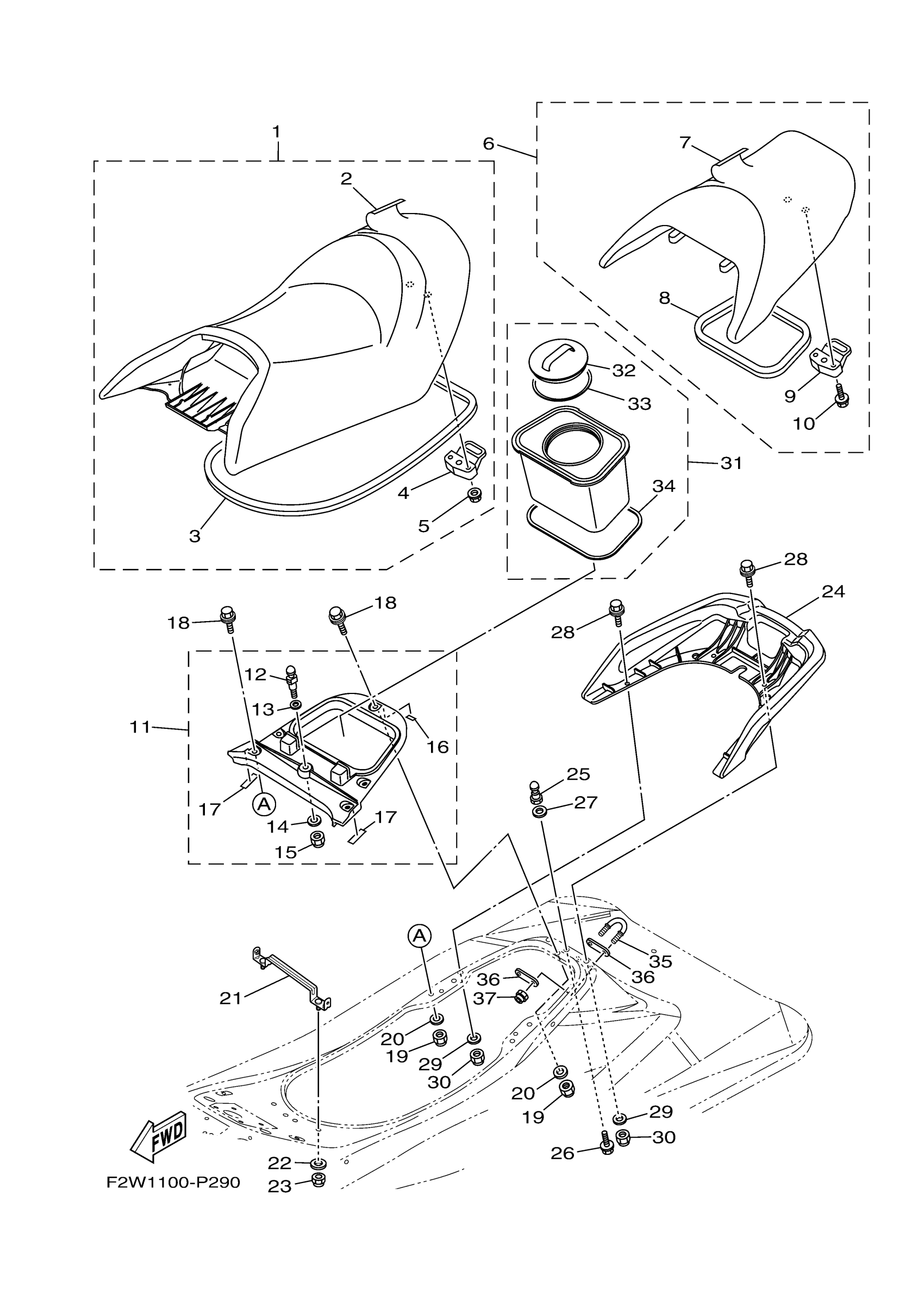

Yamaha VX1800AP (VXR) F2W1 2015 SEAT & UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F2W-U371A-00-00

Unavailable

2

. COVER, SEAT 1

F2W-U371B-00-00

Unavailable

3

. PACKING

F1W-U2664-01-00

Unavailable

4

. SEAT LOCK ASSY

F2C-U3850-00-00

Unavailable

5

BOLT, WITH WASHER

90119-06808-00

Unavailable

6

SINGLE SEAT ASSY

F2W-U372A-00-00

Unavailable

7

. COVER, SEAT

F2W-U372B-00-00

Unavailable

8

PACKING 5

F2C-U266D-01-00

Unavailable

9

SEAT LOCK ASSY

F1B-U3850-02-00

Unavailable

10

BOLT, WITH WASHER

90119-06808-00

Unavailable

11

DECK BEAM ASSY

F2S-U890L-05-00

Unavailable

12

PIN

GH1-U3774-00-00

Unavailable

13

WASHER, PLATE

90201-109U6-00

Unavailable

14

WASHER

9299R-10200-00

Unavailable

15

NUT, NYLON

9572R-10300-00

Unavailable

16

. PACKING 1

F2S-U375E-00-00

Unavailable

17

. PACKING

F2S-U8244-00-00

Unavailable

18

BOLT, WITH WASHER

90119-08828-00

Unavailable

19

NUT, NYLON (6J8)

95780-08300-00

Unavailable

20

WASHER

9299R-08200-00

Unavailable

21

STAY, SEAT 1

F2X-U378C-00-00

Unavailable

22

WASHER, PLATE

90201-099U3-00

Unavailable

23

NUT, NYLON (6J8)

95780-08300-00

Unavailable

24

GRIP, HAND

F2X-U271B-10-00

Unavailable

25

PIN

F1K-U3774-00-00

Unavailable

26

BOLT,WITH WASHER

90119-10815-00

Unavailable

27

WASHER

9299R-10200-00

Unavailable

28

BOLT, WITH WASHER

90119-08828-00

Unavailable

29

WASHER

9299R-08200-00

Unavailable

30

NUT, NYLON (6J8)

95780-08300-00

Unavailable

31

CASE,ASSY 1

F2X-U591A-01-00

Unavailable

32

. CAP,CASE

F2C-U591C-00-00

Unavailable

33

. PACKING,CASE

F2C-U591D-01-00

Unavailable

34

. PACKING,6

F2C-U266E-00-00

Unavailable

35

STERN EYE

F2N-U1628-02-00

Unavailable

36

PLATE A

GP7-U4953-10-00

Unavailable

37

NUT, NYLON (6J8)

95780-08300-00

Unavailable
