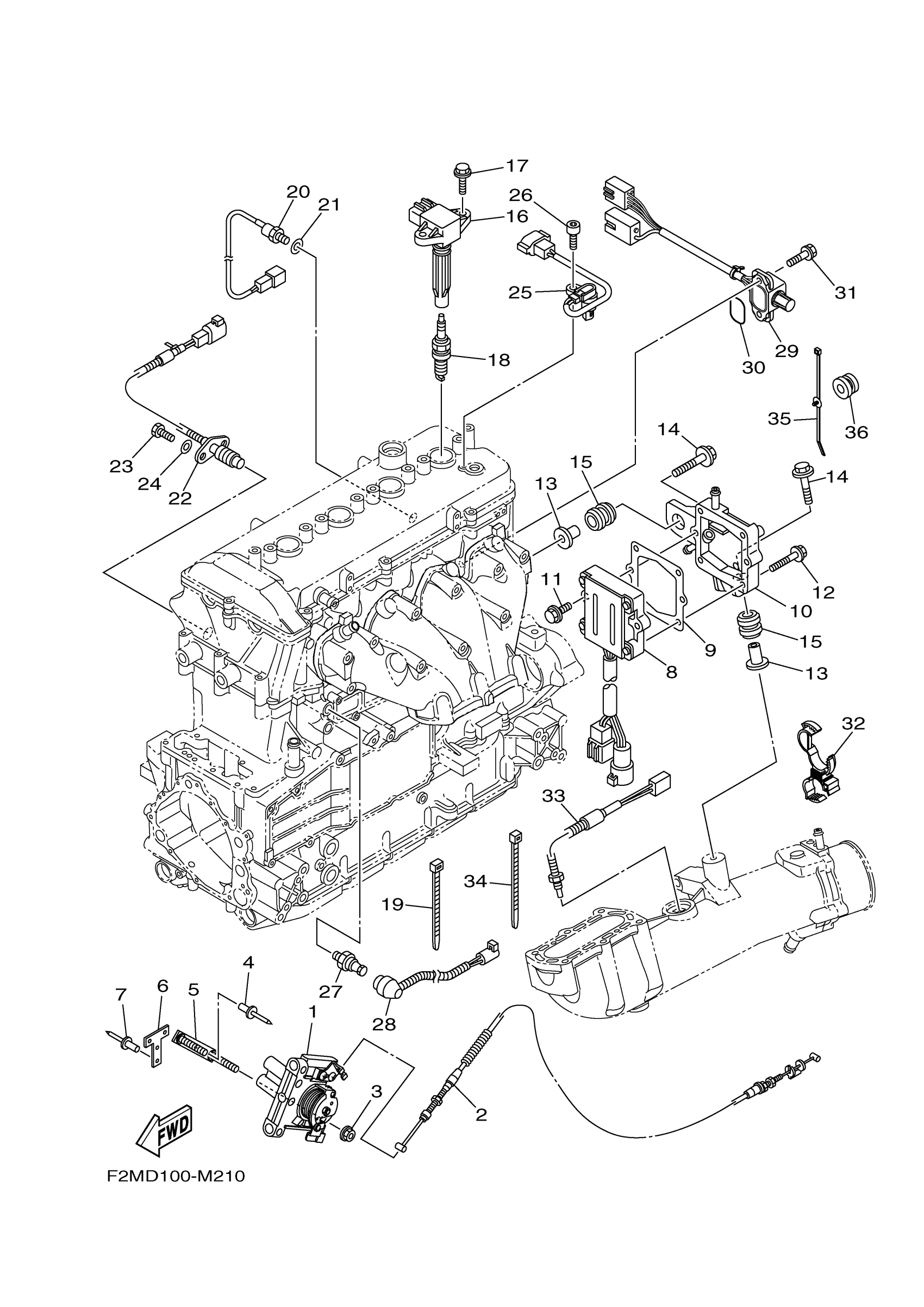

Yamaha VX1800AN (VXR) F2MH 2014 ELECTRICAL 2 Diagram

#

Description
Price

1

ACCEL. POSITON SENSOR ASSY

6D3-14305-21-00

Unavailable

2

CABLE, THROTTLE 1

6BU-26311-00-00

Unavailable

3

NUT, NYLON (6J8)

95780-08300-00

Unavailable

4

RIVET (EU0)

90267-48938-00

Unavailable

5

BRACKET, THROTTLE

F2N-U7254-00-00

Unavailable

6

PLATE

F2P-U8376-00-00

Unavailable

7

RIVET (EU0)

90267-48938-00

Unavailable

8

RECTIFIER & REGULATOR ASSY

6S5-81960-11-00

Unavailable

9

PLATE, RECTIFIER FITTING

6S5-81975-00-00

Unavailable

10

COVER, RECTIFIER

6S5-81972-01-94

Unavailable

11

BOLT, WITH WASHER

90119-06MA3-00

Unavailable

12

BOLT, WITH WASHER

90119-06048-00

Unavailable

13

COLLAR

90387-08M37-00

Unavailable

14

BOLT, WITH WASHER

90119-08187-00

Unavailable

15

GROMMET

90480-22M15-00

Unavailable

16

IGNITION COIL ASSY

6S5-82310-10-00

Unavailable

17

BOLT,FLANGE (EW2)

90105-06903-00

Unavailable

18

PLUG, SPARK (NGK LFR6A-00)

LFR-6A000-00-00

Unavailable

19

CLAMP

90465-13M18-00

Unavailable

20

THERMOSENSOR ASSY

61A-85790-01-00

Unavailable

21

WASHER, PLATE

92990-10600-00

Unavailable

22

THERMO SWITCH ASSY

6CR-82560-00-00

Unavailable

23

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

Unavailable

25

SENSOR, CAM POSITION

60E-85896-02-00

Unavailable

26

BOLT,SOCKET

91380-06016-00

Unavailable

27

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

Unavailable

28

LEAD WIRE ASSY

6S5-81315-01-00

Unavailable

29

EARTH PLATE COMP.

6CS-8273J-11-00

Unavailable

30

O-RING (341)

93210-32172-00

Unavailable

31

BOLT, WITH WASHER

90119-06MA3-00

Unavailable

32

CLAMP

90464-20008-00

Unavailable

33

THERMOSENSOR ASSY

6AA-85790-00-00

Unavailable

34

CLAMP

90464-20005-00

Unavailable

35

CLAMP

90464-31002-00

Unavailable

36

GROMMET 437147470000

90480-20132-00

Unavailable
