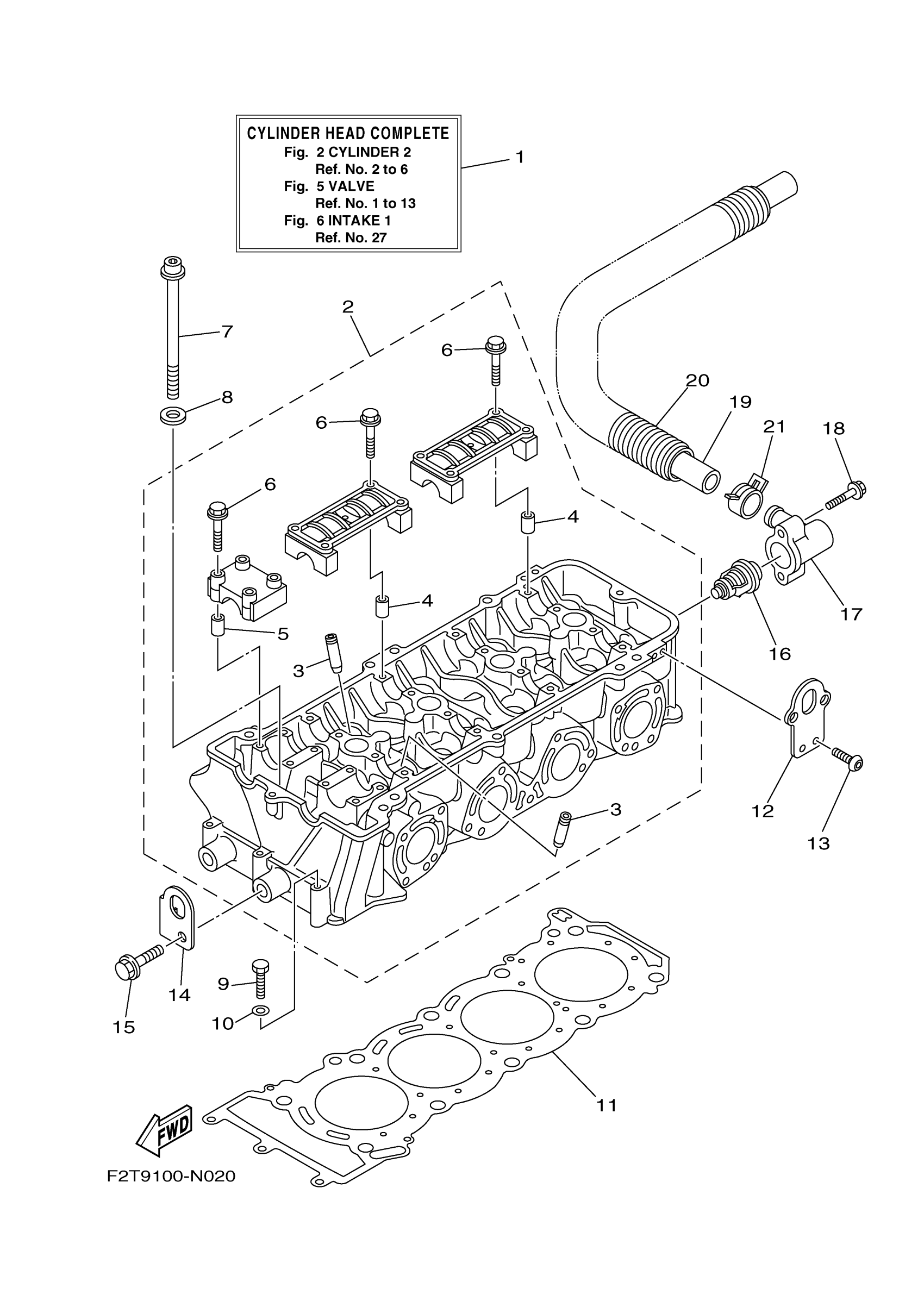

Yamaha VX1800AN (VXR) F2MH 2014 CYLINDER 2 Diagram

#

Description
Price

1

CYLINDER HEAD COMPLETE (6BH_02

99999-04510-00

Unavailable

2

CYLINDER HEAD ASSY

99999-04505-00

Unavailable

3

. GUIDE, VALVE 1

6S5-11133-10-00

Unavailable

4

. PIN, DOWEL

91809-16002-00

Unavailable

5

. PIN, DOWEL

91809-16002-00

Unavailable

6

. BOLT, FLANGE

90105-07009-00

Unavailable

7

BOLT

6S5-12228-01-00

Unavailable

8

WASHER, PLATE

90201-12039-00

Unavailable

9

BOLT(64D)

97013-06055-00

Unavailable

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

GASKET, CYLINDER HEAD 1

6JC-11181-00-00

Unavailable

12

HANGER, ENGINE 2

6BH-1111E-00-00

Unavailable

13

BOLT, BUTTON HEAD(3JP)

92014-06012-00

$3.28

14

HANGER, ENGINE

6BH-11119-00-00

Unavailable

15

BOLT, WITH WASHER

97513-10525-00

Unavailable

16

THERMOSTAT

6D3-12411-00-00

Unavailable

17

COVER, THERMOSTAT

6BH-12413-00-00

Unavailable

18

BOLT, FLANGE

90105-06035-00

Unavailable

19

HOSE 3

6S5-12578-00-00

Unavailable

20

TUBE (L850)

90447-28008-00

Unavailable

21

CLIP

90467-240A0-00

Unavailable
