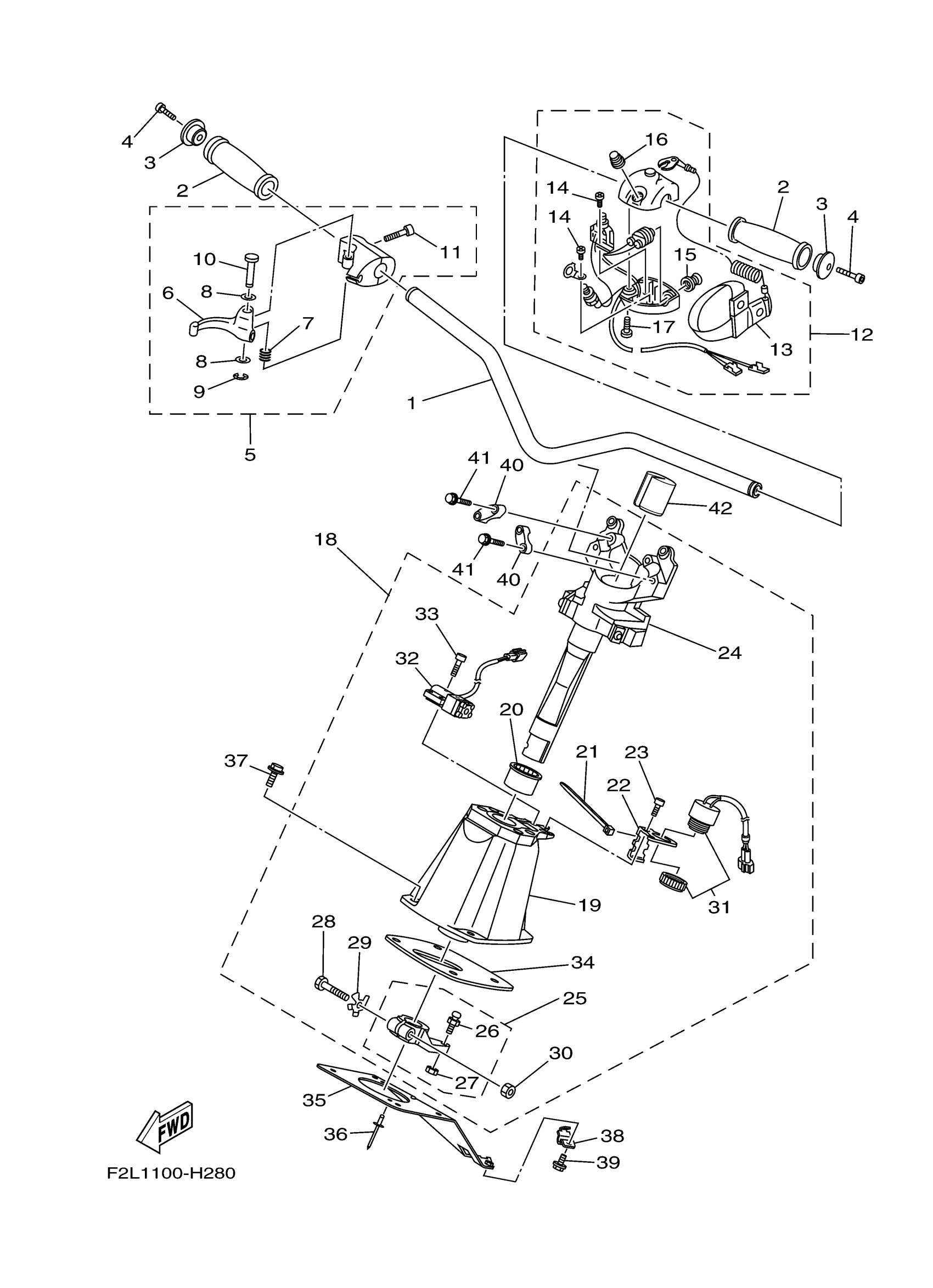

Yamaha VX1800AM (VXR) F2MD 2013 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F2N-U1552-00-00

$253.72

2

GRIP, HANDLE

GP7-U155D-01-00

$41.63

3

GRIP, END

GP7-U155F-00-00

$3.02

4

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

5

THROTTLE LEVER ASSY

F0D-67250-10-00

$104.46

6

LEVER, THROTTLE

F0D-67255-02-00

$26.85

7

. SPRING

EW2-67256-00-00

$6.27

8

WASHER, PLAIN (646)

92990-05600-00

Unavailable

9

CIRCLIP (EU0)

99080-04600-00

$1.70

10

. SHAFT

F0D-67257-00-00

$16.99

11

. BOLT, THROTTLE

F1X-6725F-01-00

$3.58

12

SWITCH BOX ASSY

FK7-68310-07-00

$158.83

13

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

14

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

15

. STOP BUTTON COMP

FK7-68312-02-00

$13.02

16

. START BUTTON COMP

FK7-68313-02-00

$10.96

17

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

18

STEERING MASTER AS

F2X-61400-14-00

Unavailable

19

. HOUSING ASSY

F1K-6152M-00-00

$397.00

20

. BUSH

F1K-6134M-00-00

$5.69

21

BAND

1UA-82591-00-00

Unavailable

22

. SPACER, BRKT

F1K-6146H-10-00

$24.61

23

SCREW

F1B-613C1-10-00

Unavailable

24

. SHAFT ASSY

F1K-67410-00-00

$471.63

25

ARM ASSY.

F1K-6153R-01-00

$134.31

26

STUD, JOINT BALL

EU0-61461-02-00

$14.16

27

NUT, SELF-LOCKING

95720-06300-00

$1.72

28

.. BOLT

F1K-61355-00-00

$17.15

29

. PLATE, RETAINING

F1K-6142B-00-00

$5.82

30

. NUT, SELF-LOCKING

95720-08300-00

$3.41

31

BUZZER

F1S-68341-00-00

$111.93

32

. SENSOR ASSY

F1W-68303-00-00

$594.01

33

BOLT

F1W-61516-10-00

Unavailable

34

. SEAL, RUBBER

F1K-6143C-00-00

$41.78

35

BRACKET,STOPPER CABLE

F1K-U1467-01-00

$53.72

36

RIVET, BLIND

90267-489U2-00

$1.51

37

BOLT,WITH WASHER

90119-08870-00

$16.40

38

STOPPER, CABLE

F1K-U1468-03-00

$5.53

39

BOLT, WITH WASHER

90119-06830-00

Unavailable

40

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.09

41

BOLT, WITH WASHER

90119-08844-00

$1.37

42

PLUG

F1K-U1949-00-00

$6.12
