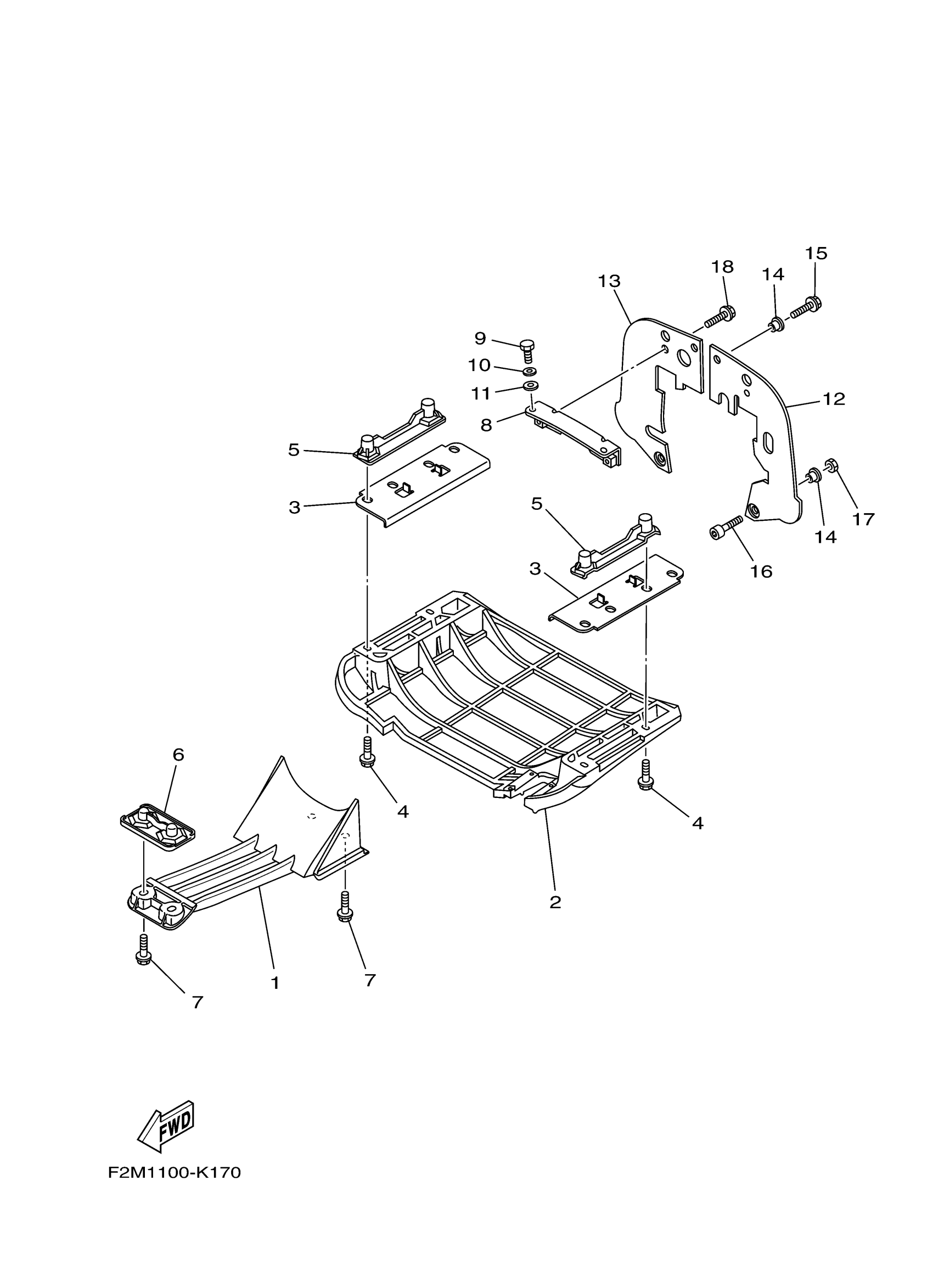

Yamaha VX1800AM (VXR) F2MD 2013 JET UNIT 4 Diagram

#

Description

Price

1

SCREEN, INTAKE

6CN-R1333-00-00

Unavailable

2

PLATE 2

F1K-U273B-06-00

Unavailable

3

SPACER

F2M-U143G-00-00

Unavailable

4

BOLT, WITH WASHER

90119-08829-00

Unavailable

5

BRACKET 2

F1G-U8572-02-00

Unavailable

6

BRACKET, 3

F2C-U8577-03-00

Unavailable

7

BOLT, WITH WASHER

90119-10809-00

Unavailable

8

BRACKET

F1K-U7557-01-00

Unavailable

9

BOLT

90109-08043-00

Unavailable

10

YBS66-12 WASHER,PLAIN

92990-12200-00

$8.49

11

GASKET

90430-12002-00

Unavailable

12

PLATE, RUBBER 1

F1K-U757E-01-00

Unavailable

13

PLATE, RUBBER 2

F1K-U757F-01-00

Unavailable

14

COLLAR

90387-06080-00

Unavailable

15

BOLT, WITH WASHER

90119-06878-00

Unavailable

16

BOLT

90101-069U0-00

Unavailable

17

NUT, NYLON

9572R-06300-00

Unavailable

18

BOLT, WITH WASHER

90119-08800-00

Unavailable
