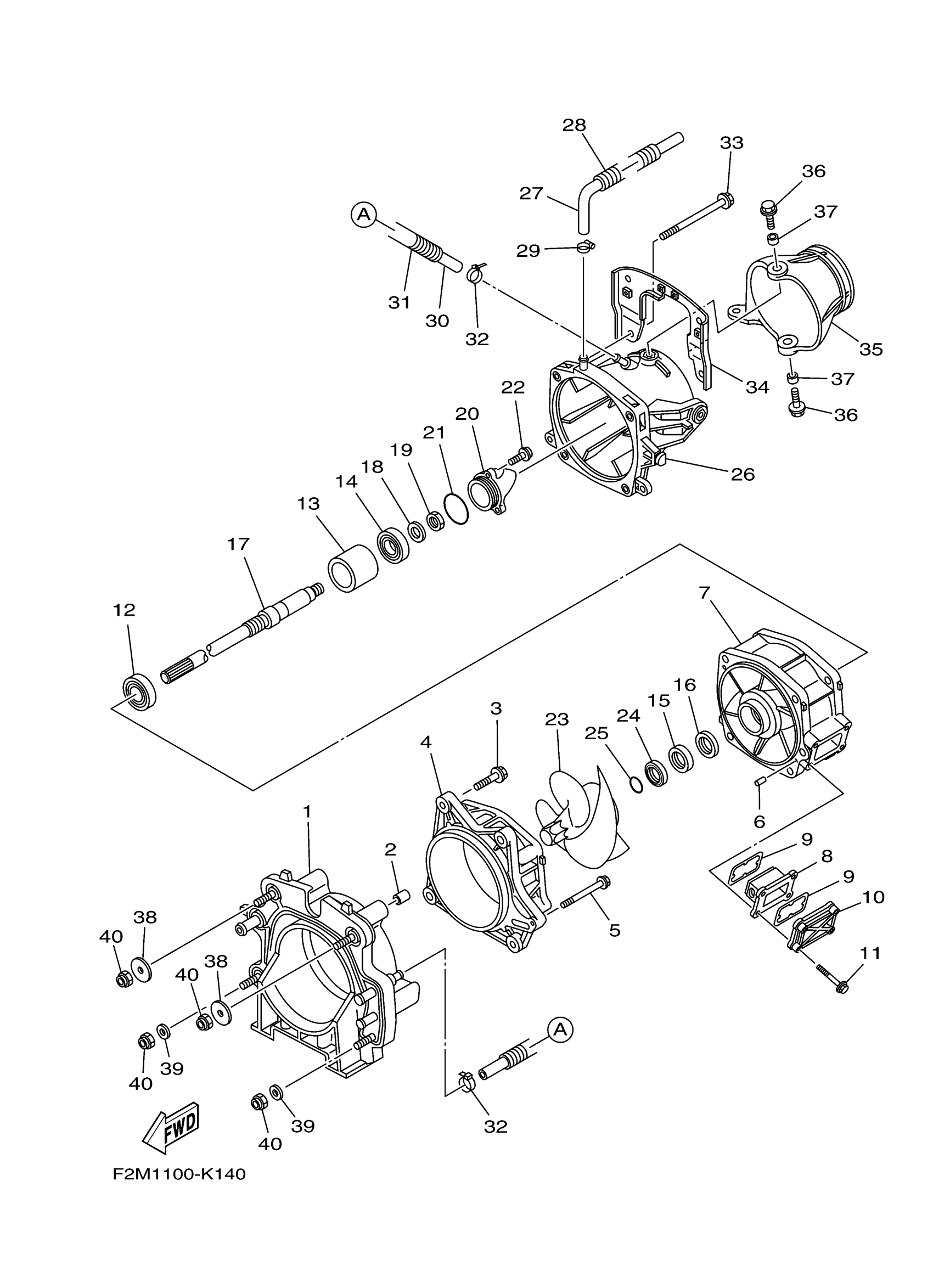

Yamaha VX1800AM (VXR) F2MD 2013 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6AN-G5831-10-00

Unavailable

2

PIN, DOWEL(4JT)

99590-14016-00

$3.50

3

BOLT, WITH WASHER

90119-10811-00

$1.43

4

HOUSING, IMPELLER

6CR-R1312-00-00

$131.73

5

BOLT, WITH WASHER

90119-06894-00

$1.43

6

PIN, DOWEL (614)

93606-12019-00

$3.50

7

DUCT, IMPELLER

6CR-R1315-00-00

$97.42

8

FILTER

66V-46882-00-00

$5.59

9

. O-RING

66V-42414-00-00

$5.31

10

COVER, WATER INLET

6AN-G5214-00-00

$17.90

11

BOLT,WITH WASHER

90119-06898-00

$3.59

12

BEARING

93306-20654-00

$63.83

13

SPACER 1

6CS-G5538-00-00

$34.45

14

BEARING(3RR)

93306-30560-00

Unavailable

15

. OIL SEAL

93102-31009-00

$76.11

16

. OIL SEAL

93101-31001-00

$31.57

17

SHAFT, DRIVE

6S5-G5511-00-00

$286.55

18

WASHER

9290P-20600-00

$0.65

19

NUT

90170-20802-00

$15.07

20

CAP

6AN-R1326-00-00

$18.66

21

O-RING

93210-54010-00

$2.58

22

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.30

23

IMPELLER

6AP-R1321-01-00

$211.93

24

SPACER

6BH-51348-01-00

$58.88

25

O-RING (30X)

93210-30611-00

Unavailable

26

NOZZLE

6BU-R1318-01-00

$59.69

27

HOSE 1

6CN-U72M2-00-00

$5.75

28

HOSE, WITH SPRING (L205)

90447-15001-00

$3.81

29

BAND, HOSE 18

90601-118UF-00

$2.22

30

HOSE (L355)

90445-14807-00

$1.72

31

HOSE (L320)

90446-20MF5-00

$4.78

32

CLAMP

90465-10098-00

$2.24

33

BOLT, WITH WASHER

90119-10807-00

$5.75

34

BRACKET 1

6D3-R1341-00-00

$47.75

35

NOZZLE, DEFLECTOR

6BU-R1313-00-00

$47.75

36

BOLT, WITH WASHER

90119-08841-00

$1.07

37

COLLAR(6R7)

90387-08M06-00

Unavailable

38

WASHER

F1S-U725E-01-00

$8.61

39

WASHER, PLATE

90201-10801-00

$3.65

40

NUT, NYLON

9572R-10300-00

$3.52
