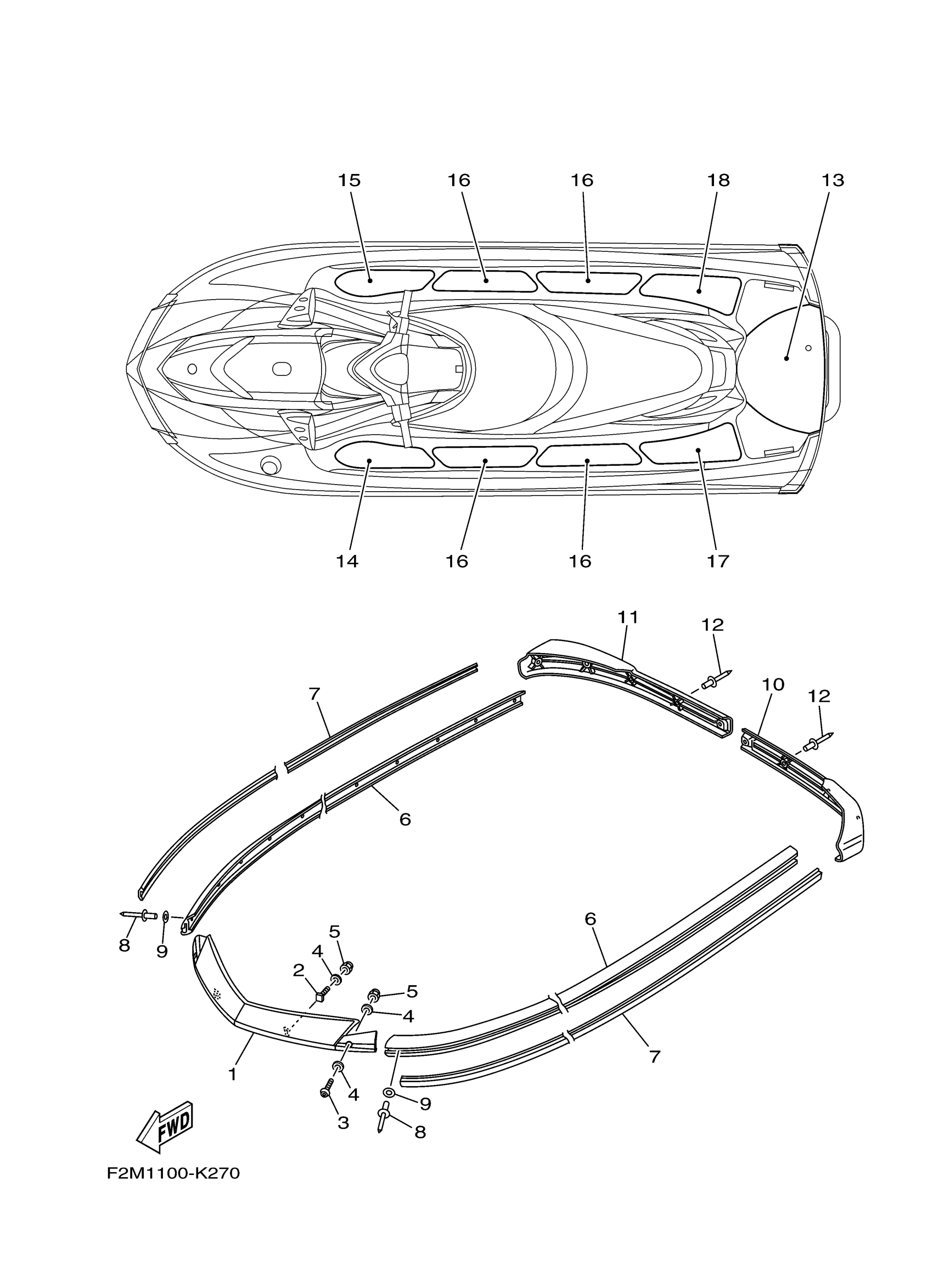

Yamaha VX1800AM (VXR) F2MD 2013 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F2N-U2511-20-00

$110.40

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

BOLT,HEX. SOCKET BUTTON

90111-06803-00

$2.16

4

WASHER

9299R-06200-00

$0.43

5

NUT, NYLON

9572R-06300-00

$2.80

6

GUNWALE, SIDE

F1K-U2512-20-00

$104.53

7

INNER,GUNWALE (BLACK)

F1K-U2519-20-00

$35.56

8

RIVET, BLIND

90267-489U8-00

$0.99

9

WASHER

9299R-05200-00

$3.16

10

GUNWALE, STERN 1

F1K-U251D-20-00

$153.38

11

GUNWALE, STERN 2

F1K-U251E-20-00

$165.14

12

RIVET, BLIND

90267-48963-00

$3.64

13

MAT, UPPER

F2P-U3581-00-00

$71.20

14

MAT, STEP 1

F2P-U351H-00-00

$10.36

15

MAT, STEP 2

F2P-U351J-00-00

$12.11

16

MAT, STEP 3

F2P-U351K-00-00

$10.04

17

MAT, STEP 4

F2P-U351M-00-00

$15.89

18

MAT, STEP 5

F2P-U351N-00-00

$15.89
