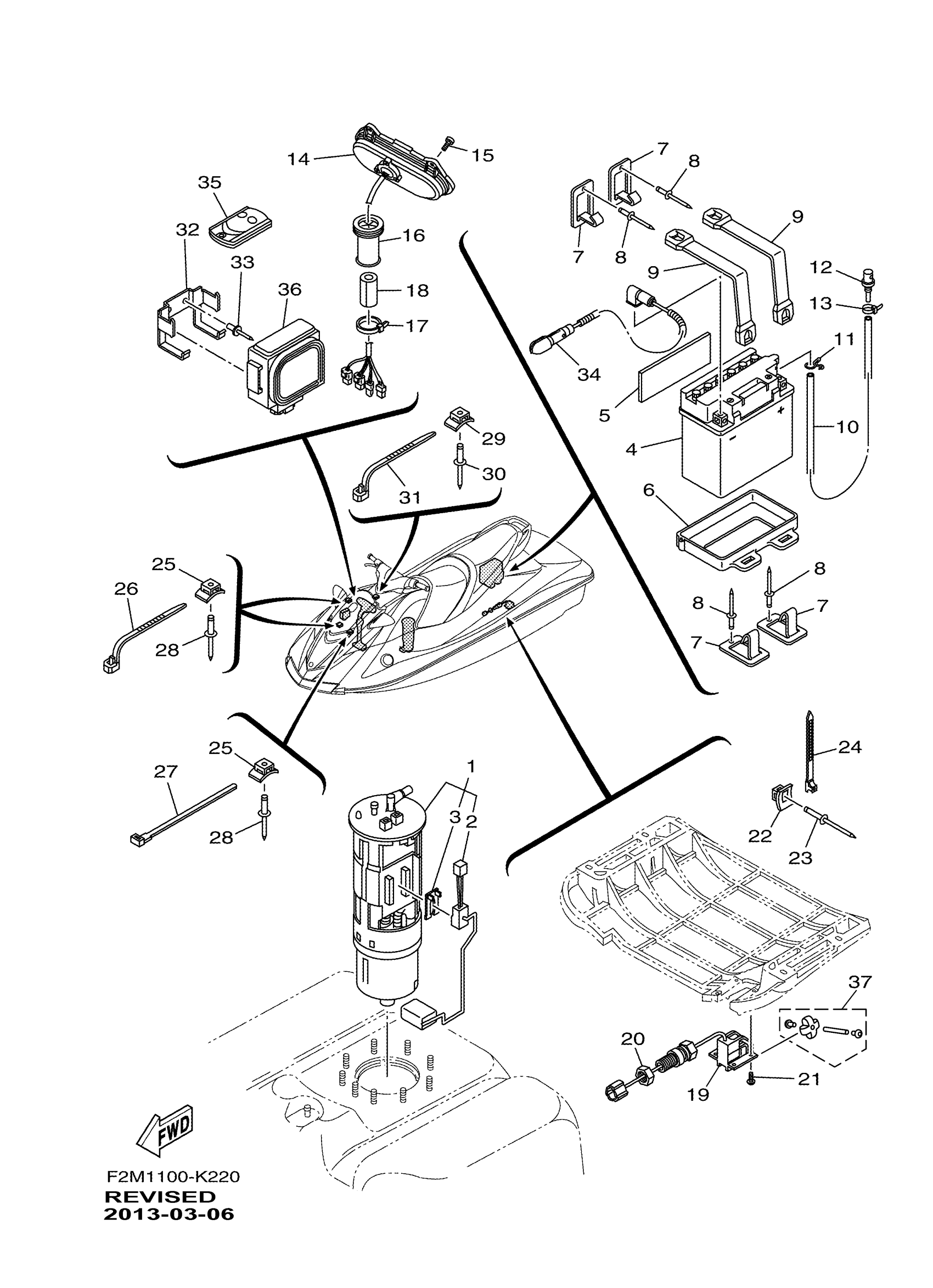

Yamaha VX1800AM (VXR) F2MD 2013 ELECTRICAL 3 Diagram

#

Description

Price

1

FUEL PUMP COMP.

6S5-13907-05-00

Unavailable

2

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

Unavailable

4

BATTERY ASSY

EU0-82110-08-00

Unavailable

5

PAD, BATTERY

F1K-U8221-00-00

Unavailable

6

CASE, BATTERY

F1K-U8211-01-00

Unavailable

7

HOOK A

F1K-U5772-04-00

Unavailable

8

RIVET (EU0)

90267-48938-00

Unavailable

9

BAND, BATTERY 1

F1K-U821D-01-00

Unavailable

10

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

11

CLIP

90467-089U1-00

Unavailable

12

NIPPLE

GJ3-6215F-00-00

Unavailable

13

CLAMP

90465-10098-00

Unavailable

14

METER ASSY

F1K-6820A-20-00

Unavailable

15

BOLT,HEX. SOCKET BUTTON

90111-05009-00

Unavailable

16

GROMMET

GU2-6822E-01-00

Unavailable

17

CLAMP

90464-32801-00

Unavailable

18

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

19

SENSOR SPEED

F1S-U8K31-03-00

Unavailable

20

NUT

F2C-U151S-00-00

Unavailable

21

SCREW, ROUND HEAD

90150-05807-00

Unavailable

22

BASE, CLAMP

F1W-U828M-00-00

Unavailable

23

RIVET, BLIND

90267-489U6-00

Unavailable

24

CLAMP

90464-32801-00

Unavailable

25

BASE, CLAMP

F1W-U828M-00-00

Unavailable

26

CLAMP

90464-32801-00

Unavailable

27

BAND

90601-200U2-00

Unavailable

28

RIVET, BLIND

90267-489U6-00

Unavailable

29

BASE, CLAMP

F1W-U828M-00-00

Unavailable

30

RIVET, BLIND

90267-489U6-00

Unavailable

31

CLAMP

90464-32801-00

Unavailable

32

BRACKET

F1W-U826C-00-00

Unavailable

33

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

34

WIRE, MINUS LEAD

6JP-82116-00-00

Unavailable

35

XMTR. COMP.

6B6-86261-00-00

Unavailable

36

RECEIVER COMPLETE

6B6-86265-00-00

Unavailable

37

REPAIR KIT, SPEED SENSOR

GJ1-U835D-00-00

Unavailable
