- VX1800AL (VXR) F2M7 2012
REPAIR KIT 1

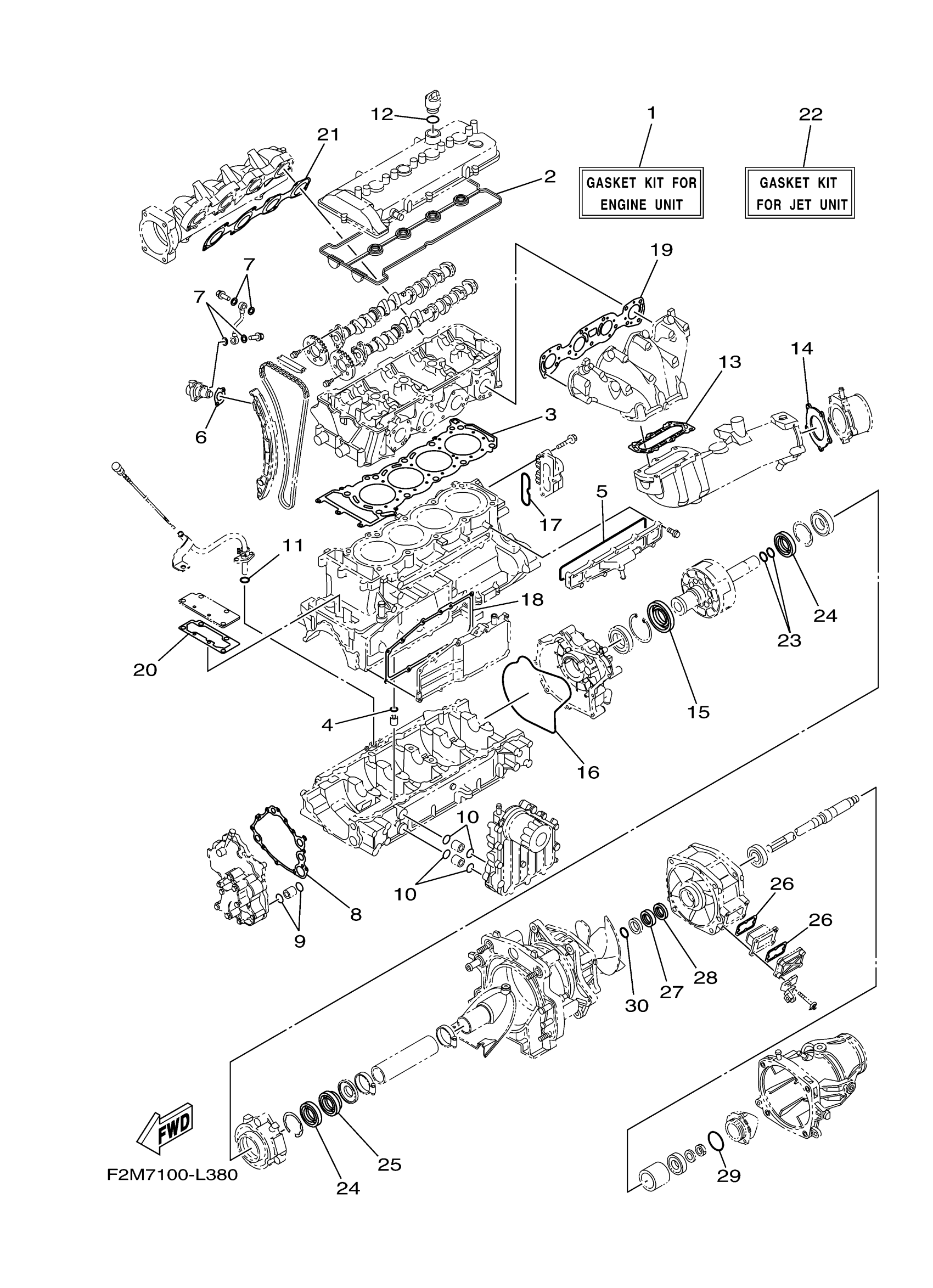

Yamaha VX1800AL (VXR) F2M7 2012 REPAIR KIT 1 Diagram
#
1
GASKET KIT FOR ENGINE UNIT
6CR-W0001-02-00
Unavailable
2
. GASKET, HEAD COVER 1
6BH-11193-00-00
Unavailable
3
GASKET, CYLINDER HEAD 1
6JC-11181-00-00
Unavailable
4
O-RING (4G0)
93210-11453-00
$7.49
5
. GASKET, WATER INLET
6S5-12517-01-00
Unavailable
6
. GASKET
6S5-121E2-00-00
Unavailable
7
. GASKET
90430-10007-00
Unavailable
8
. GASKET
6S5-13563-00-00
Unavailable
9
O-RING (26H)
93210-21631-00
$7.49
10
O-RING (1L9)
93210-18322-00
$5.60
11
O-RING(3LD)
93210-12790-00
$7.49
12
O-RING (437)
93210-24235-00
$7.49
13
. GASKET, MUFFLER DAMPER 1
6S5-14739-00-00
Unavailable
14
. GASKET, MUFFLER DAMPER 2
6BH-14749-00-00
Unavailable
15
OIL SEAL
6LE-81167-00-00
$73.99
16
. O-RING
6S5-81168-00-00
Unavailable
17
O-RING (341)
93210-32172-00
Unavailable
18
. GASKET
6BH-13557-00-00
Unavailable
19
. GASKET, EXHAUST PIPE
6BH-14613-00-00
Unavailable
20
. GASKET, COVER
6BH-1131B-00-00
Unavailable
21
. GASKET, MANIFOLD 1
6BH-13645-00-00
Unavailable
22
GASKET KIT FOR JET UNIT
6S5-W0001-22-00
Unavailable
23
O-RING(6U1)
93210-22MF1-00
Unavailable
24
. OIL SEAL
93102-29008-00
Unavailable
25
OIL SEAL
93102-29009-00
Unavailable
26
. O-RING
66V-42414-00-00
Unavailable
27
. OIL SEAL
93102-31009-00
Unavailable
28
. OIL SEAL
93101-31001-00
Unavailable
29
O-RING
93210-54010-00
Unavailable
30
O-RING (30X)
93210-30611-00
Unavailable
