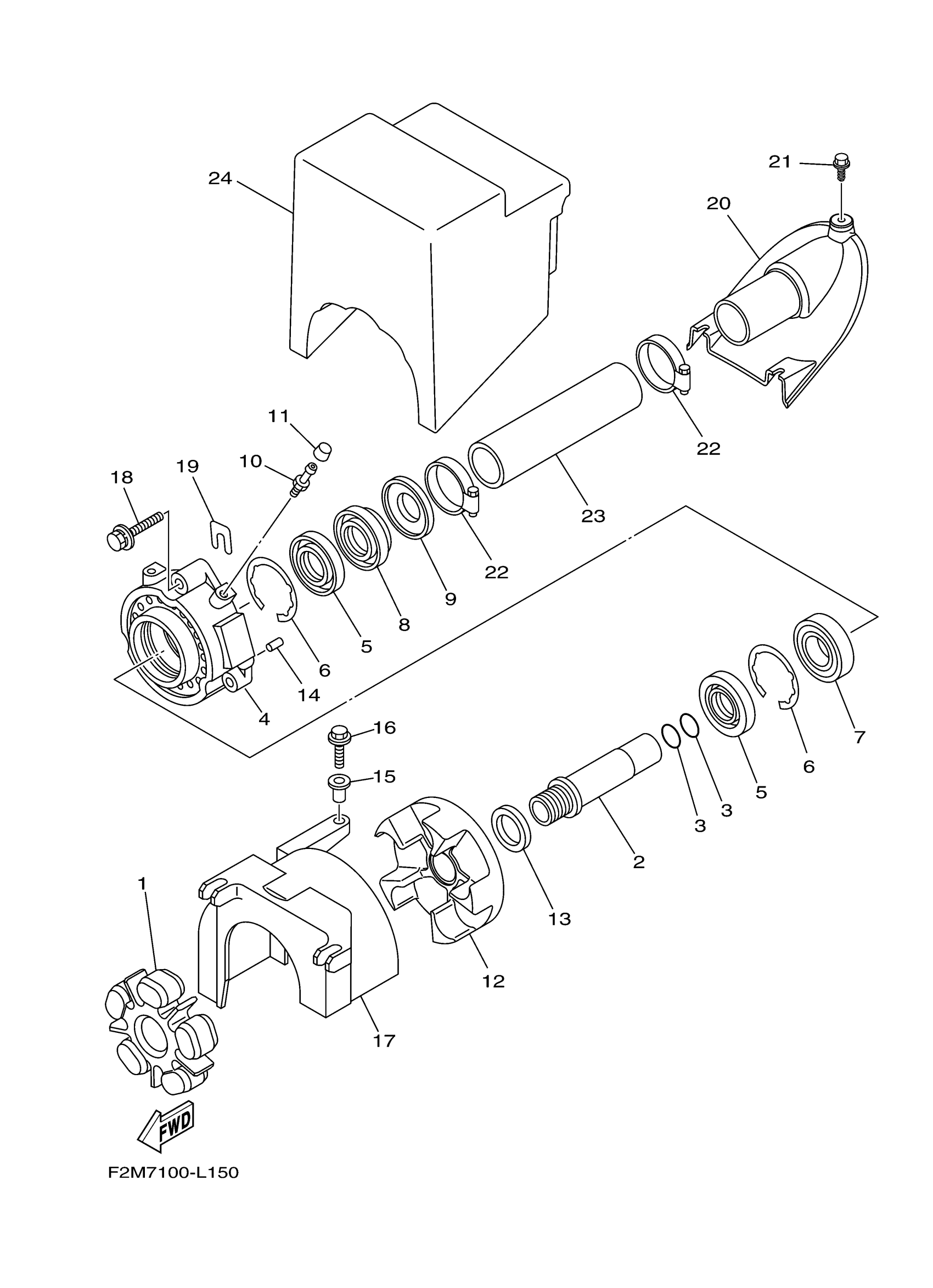

Yamaha VX1800AL (VXR) F2M7 2012 JET UNIT 2 Diagram

#

Description
Price

1

RUBBER SHAFT COUPL

6BH-4581J-01-00

$136.35

2

SHAFT, COUPLER

6S5-R1323-00-00

$130.35

3

O-RING(6U1)

93210-22MF1-00

$4.65

4

HOUSING, BEARING

6S5-G5332-00-00

$200.40

5

. OIL SEAL

93102-29008-00

$22.22

6

CIRCLIP

93450-66156-00

$2.95

7

BEARING

93306-206Y8-00

$43.06

8

OIL SEAL

93102-29009-00

$54.53

9

WASHER, THRUST

6S5-45613-10-00

$28.52

10

NIPPLE, GREASE

93700-06M03-00

$7.40

11

CAP, GREASE NIPPLE

663-45119-01-00

$1.83

12

FLANGE, COUPLING 1

6S5-G5593-00-00

$43.06

13

WASHER

6S5-12289-00-00

$24.13

14

PIN, DOWEL (614)

93606-12019-00

$3.05

15

COLLAR

90387-06M60-00

$6.37

16

BOLT, WITH WASHER

90119-06892-00

$3.79

17

COVER

6S5-R1381-01-00

$4.15

18

BOLT, WITH WASHER

90119-089U1-00

$3.23

19

SHIM (0.5)

GD0-U7249-00-05

$1.94

20

JOINT, PIPE

F2N-U883E-00-00

$8.61

21

BOLT

90109-06832-00

$2.44

22

BAND, HOSE 55

90601-155U4-00

$5.87

23

PIPE, 1

F2C-U883B-00-00

$24.23

24

PAD

F1K-U892D-00-00

$23.47
