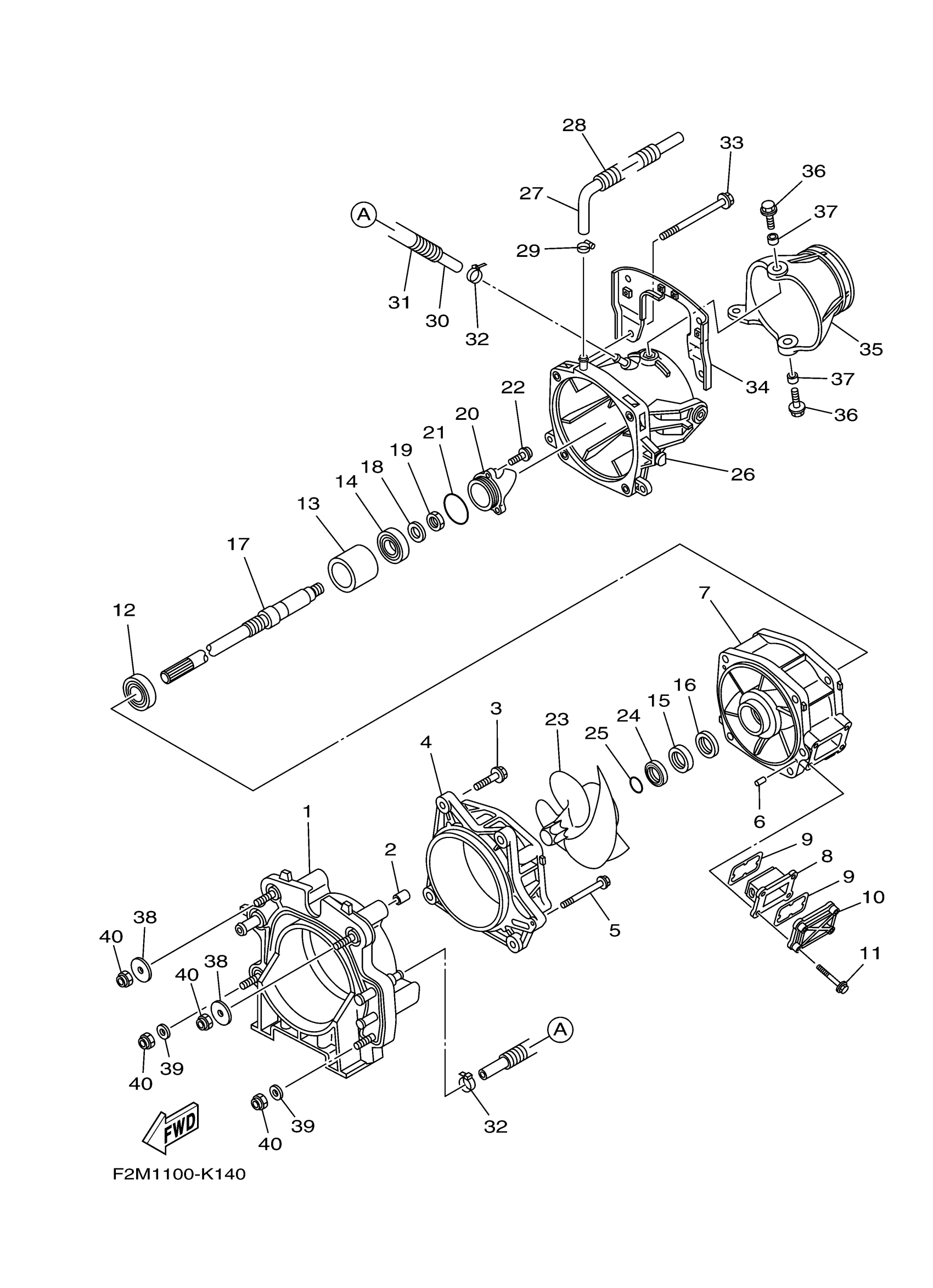

Yamaha VX1800AL (VXR) F2M7 2012 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6AN-G5831-10-00

Unavailable

2

PIN, DOWEL(4JT)

99590-14016-00

$3.41

3

BOLT, WITH WASHER

90119-10811-00

$1.37

4

HOUSING, IMPELLER

6CR-R1312-00-00

$107.60

5

BOLT, WITH WASHER

90119-06894-00

$1.37

6

PIN, DOWEL (614)

93606-12019-00

$3.05

7

DUCT, IMPELLER

6CR-R1315-00-00

$93.30

8

FILTER

66V-46882-00-00

$5.91

9

. O-RING

66V-42414-00-00

$5.18

10

COVER, WATER INLET

6AN-G5214-00-00

$18.17

11

BOLT,WITH WASHER

90119-06898-00

$3.43

12

BEARING

93306-20654-00

$62.23

13

SPACER 1

6S5-45538-00-00

$28.52

14

BEARING

93306-30582-00

$48.16

15

. OIL SEAL

93102-31009-00

$80.29

16

. OIL SEAL

93101-31001-00

$32.99

17

SHAFT, DRIVE

6S5-G5511-00-00

$276.63

18

WASHER

9290P-20600-00

$0.57

19

NUT

90170-20802-00

$14.35

20

CAP

6AN-R1326-00-00

$17.94

21

O-RING

93210-54010-00

$2.64

22

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

23

IMPELLER

6AP-R1321-01-00

$215.14

24

SPACER

6BH-51348-01-00

$61.99

25

O-RING (30X)

93210-30611-00

Unavailable

26

NOZZLE

6BU-R1318-01-00

$60.27

27

HOSE 1

6CN-U72M2-00-00

$5.44

28

HOSE, WITH SPRING (L205)

90447-15001-00

$3.64

29

BAND, HOSE 18

90601-118UF-00

$2.07

30

HOSE (L355)

90445-14807-00

$1.74

31

HOSE (L320)

90446-20MF5-00

$4.57

32

CLAMP

90465-10098-00

$1.68

33

BOLT, WITH WASHER

90119-10807-00

$5.44

34

BRACKET 1

6D3-R1341-00-00

$48.47

35

NOZZLE, DEFLECTOR

6BU-R1313-00-00

$43.06

36

BOLT, WITH WASHER

90119-08841-00

$1.01

37

COLLAR(6R7)

90387-08M06-00

Unavailable

38

WASHER

F1S-U725E-01-00

$7.89

39

WASHER, PLATE

90201-10801-00

$3.52

40

NUT, NYLON

9572R-10300-00

$3.37
