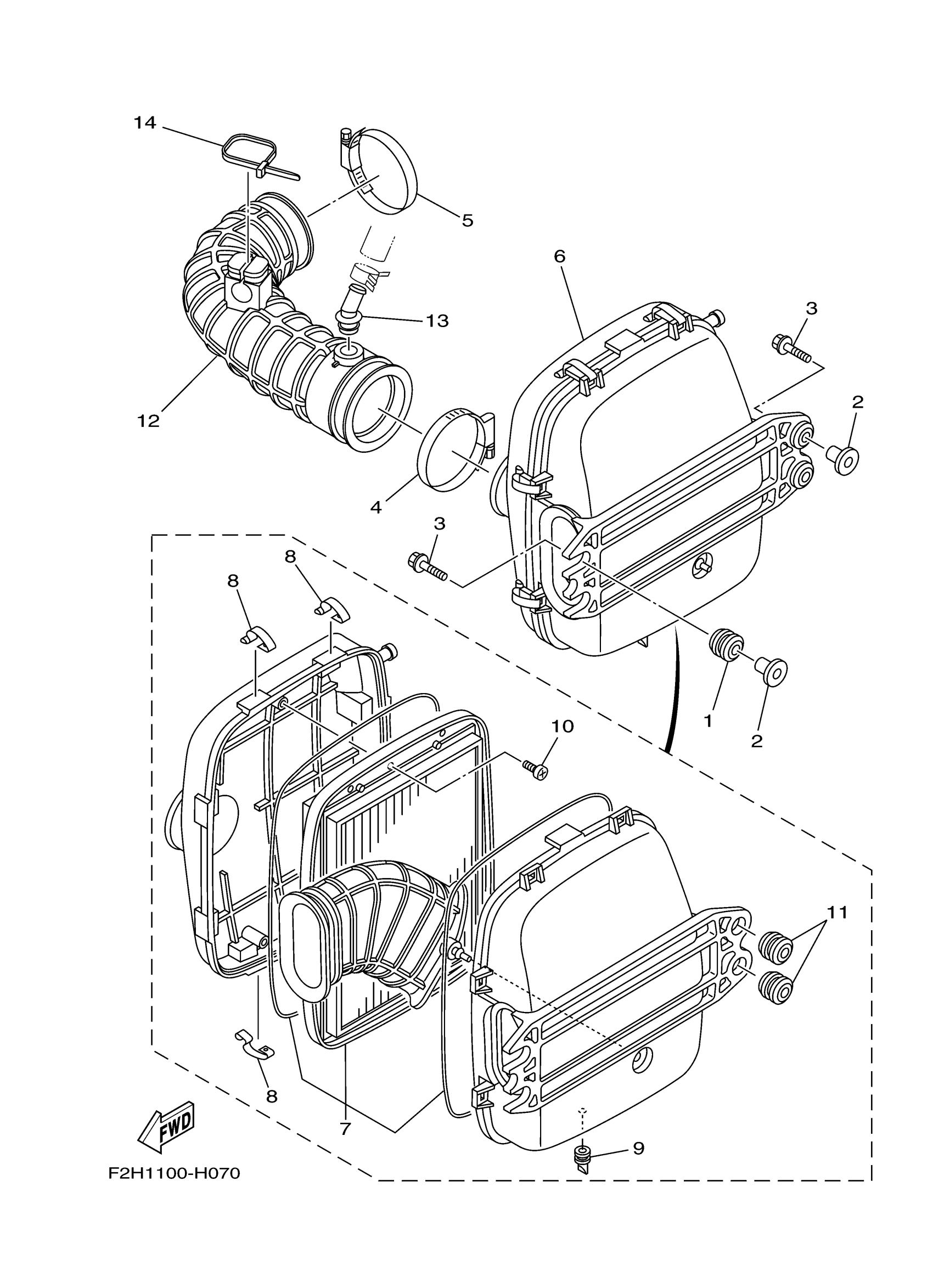

Yamaha VX1800AL (VXR) F2M7 2012 INTAKE 2 Diagram

#

Description
Price

1

GROMMET

90480-22M15-00

$11.01

2

COLLAR

90387-08M37-00

$10.28

3

BOLT, WITH WASHER

90119-08187-00

$3.02

4

HOSE CLAMP ASSY

90450-90001-00

$36.99

5

HOSE CLAMP ASSY

90450-90001-00

$36.99

6

AIR CLEANER ASSY.

6S5-E4410-02-00

$171.63

7

ELEMENT, AIR CLEAN

6S5-E4451-01-00

$173.77

8

. HOOK

6S5-E4436-00-00

$4.01

9

. RUBBER, SEAL 2

6S5-G2717-00-00

$2.54

10

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

$2.05

11

. GROMMET

90480-22801-00

$2.69

12

PIPE

6BH-E4419-00-00

$47.75

13

CONNECTION

6BH-R1142-00-00

Unavailable

13

CONNECTION

6BH-R1142-10-00

$2.46

14

CLAMP(JN6)

90464-40825-00

$1.63
