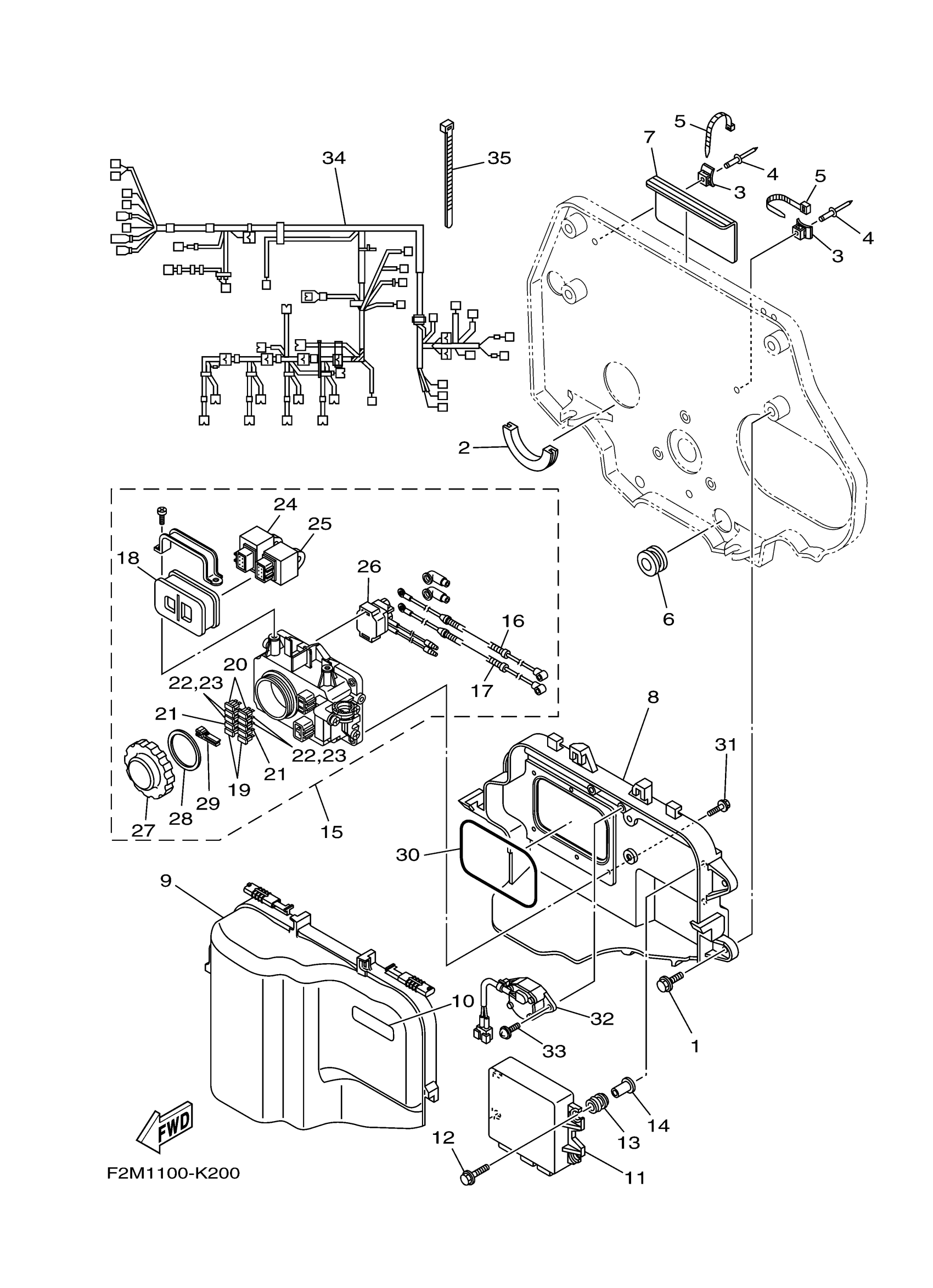

Yamaha VX1800AL (VXR) F2M7 2012 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-089UT-00

Unavailable

2

TRIM, 1

F1S-U828H-01-00

Unavailable

3

BASE, CLAMP

F1W-U828M-00-00

Unavailable

4

RIVET, BLIND

90267-48802-00

Unavailable

5

CLAMP

90464-32801-00

Unavailable

6

GROMMET

90480-38800-00

Unavailable

7

PAD, BATTERY

F1S-U8221-00-00

Unavailable

8

PLATE

6BH-81845-01-00

Unavailable

9

COVER

6S5-81942-11-00

Unavailable

10

LABEL, CAUTION 7

60E-83627-00-00

Unavailable

11

ENGINE CONTROL UNIT ASSY

6CN-8591A-00-00

Unavailable

11

ENGINE CONTROL UNIT ASSY

6CN-8591A-10-00

Unavailable

12

BOLT, WITH WASHER

90119-06311-00

Unavailable

13

DAMPER, IGNITION C

6A0-82317-01-00

Unavailable

14

. COLLAR

90387-06119-00

Unavailable

15

FUSE BOX ASSY

6BH-82170-00-00

Unavailable

16

. WIRE, PLUS LEAD

6S5-82115-00-00

Unavailable

17

. WIRE, LEAD

6S5-82117-00-00

Unavailable

18

. DAMPER

6D3-82157-00-00

Unavailable

19

FUSE

5JJ-82151-20-00

Unavailable

20

FUSE

5JJ-82151-60-00

Unavailable

21

. FUSE (3A)

67F-82151-30-00

Unavailable

22

. FUSE (10A)

67F-82151-40-00

Unavailable

23

. FUSE (10A)

67F-82151-40-00

Unavailable

24

RELAY ASSY

60E-81950-00-00

Unavailable

25

. RELAY ASSY

68V-81950-00-00

Unavailable

26

. STARTER RELAY ASSY

6B6-81940-00-00

Unavailable

27

. CAP

66V-8132W-00-00

Unavailable

28

. GASKET

66V-81844-00-00

Unavailable

29

. PULLER, FUSE

67F-2812A-00-00

Unavailable

30

O-RING

6BH-81847-00-00

Unavailable

31

BOLT, WITH WASHER

90119-06091-00

Unavailable

32

SWITCH ASSY

6S5-8259E-00-00

Unavailable

33

SCREW, TAPPING

97780-60520-00

Unavailable

34

WIRE HARNESS ASSY 1

6CN-8259L-00-00

Unavailable

35

CLAMP

90465-14M66-00

Unavailable
