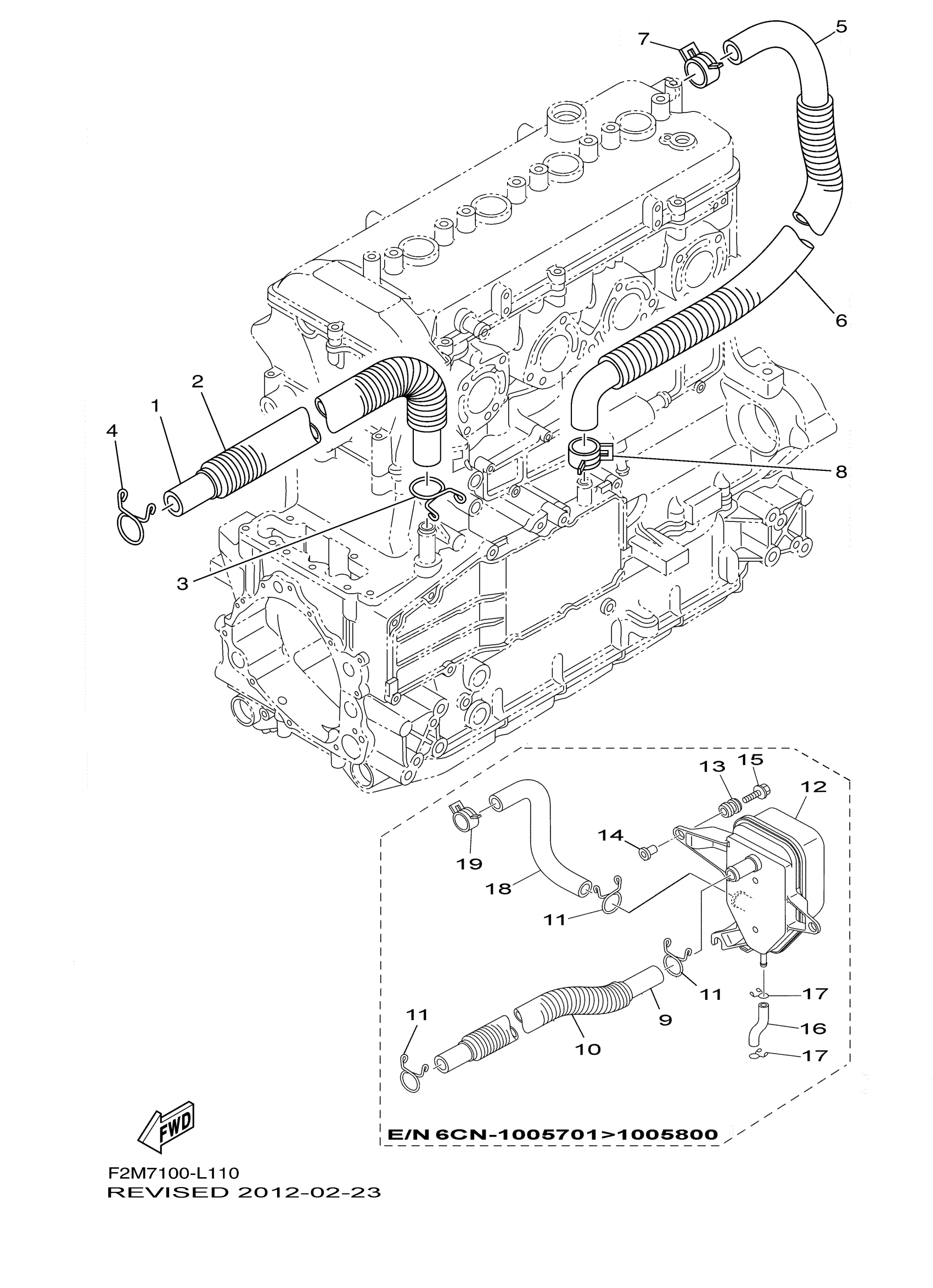

Yamaha VX1800AL (VXR) F2M7 2012 BREATHER OIL Diagram

#

Description
Price

1

PIPE, BREATHER 1

6S5-11166-10-00

$42.41

2

TUBE (L410)

90447-22015-00

$6.36

3

CLIP

90467-190A0-00

$2.27

4

CLIP

90467-190A0-00

$2.27

5

PIPE, BREATHER 2

6S5-11167-10-00

$43.67

6

TUBE (L490)

90447-22016-00

$5.55

7

CLIP

90467-240A0-00

$6.82

8

CLIP

90467-200A3-00

$5.92

9

PIPE, BREATHER 1

6S5-111666-00-00

Unavailable

10

HOSE

90446-30ME9-00

Unavailable

11

CLIP

90467-200A2-00

$3.55

12

BREATHER ASSY

6BH-11160-00-00

$84.83

13

DAMPER, IGNITION COIL

61N-82317-01-00

$1.01

14

. COLLAR

90387-06119-00

$4.37

15

BOLT, FLANGE

95814-06030-00

$2.56

16

PIPE, BREATHER 4

6S5-11125-00-00

$2.27

17

CLIP(72X)

90467-11M08-00

$2.50

18

PIPE, BREATHER 2

6S5-11167-00-00

$43.92

19

CLIP

90467-240A0-00

$6.82
