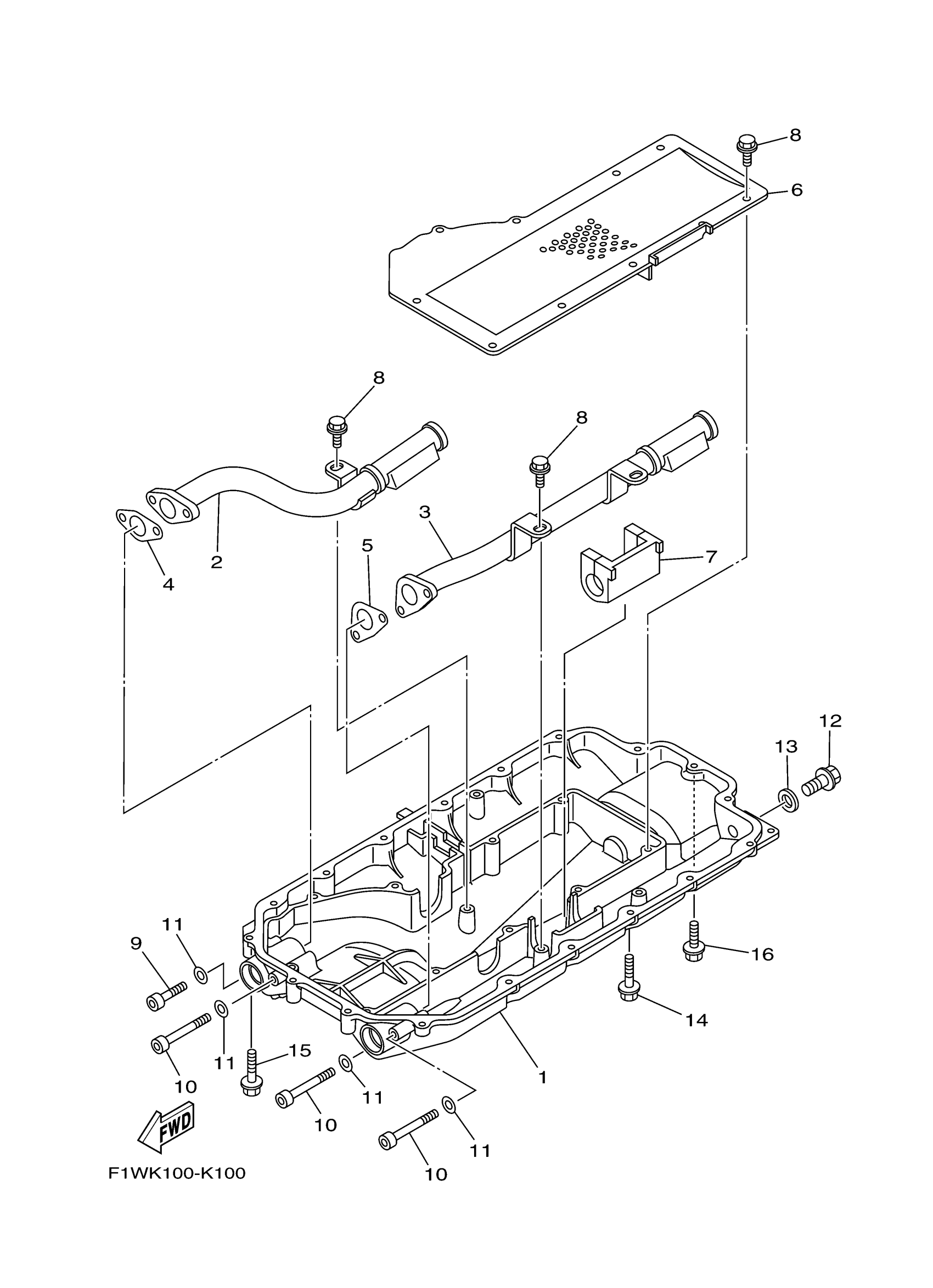

Yamaha VX1800AK (VXR) F2M1 2011 OIL PAN Diagram

#

Description
Price

1

PAN, OIL

6S5-1310A-10-94

$610.59

2

OIL PIPE COMP. 2

6S5-13405-00-00

$154.53

3

OIL PIPE COMP. 2

6S5-13406-00-00

$136.35

4

GASKET

6S5-13476-00-00

$2.80

5

GASKET

6S5-13477-00-00

$2.95

6

PLATE, BAFFLE

6S5-13317-00-00

Unavailable

7

GROMMET

6S5-15486-00-00

$16.99

8

BOLT, FLANGE

95817-06014-00

Unavailable

9

BOLT, SOCKET

91314-06035-00

$5.75

10

BOLT, SOCKET

91314-06060-00

$6.22

11

WASHER, PLATE

90201-06028-00

$2.36

12

BOLT, FLANGE

95814-08016-00

$6.22

13

GASKET(3GH)

90430-08209-00

$2.56

14

BOLT, FLANGE(4BH)

95024-06035-00

$6.43

15

BOLT, FLANGE(4AS)

95024-06030-00

$5.75

16

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable
