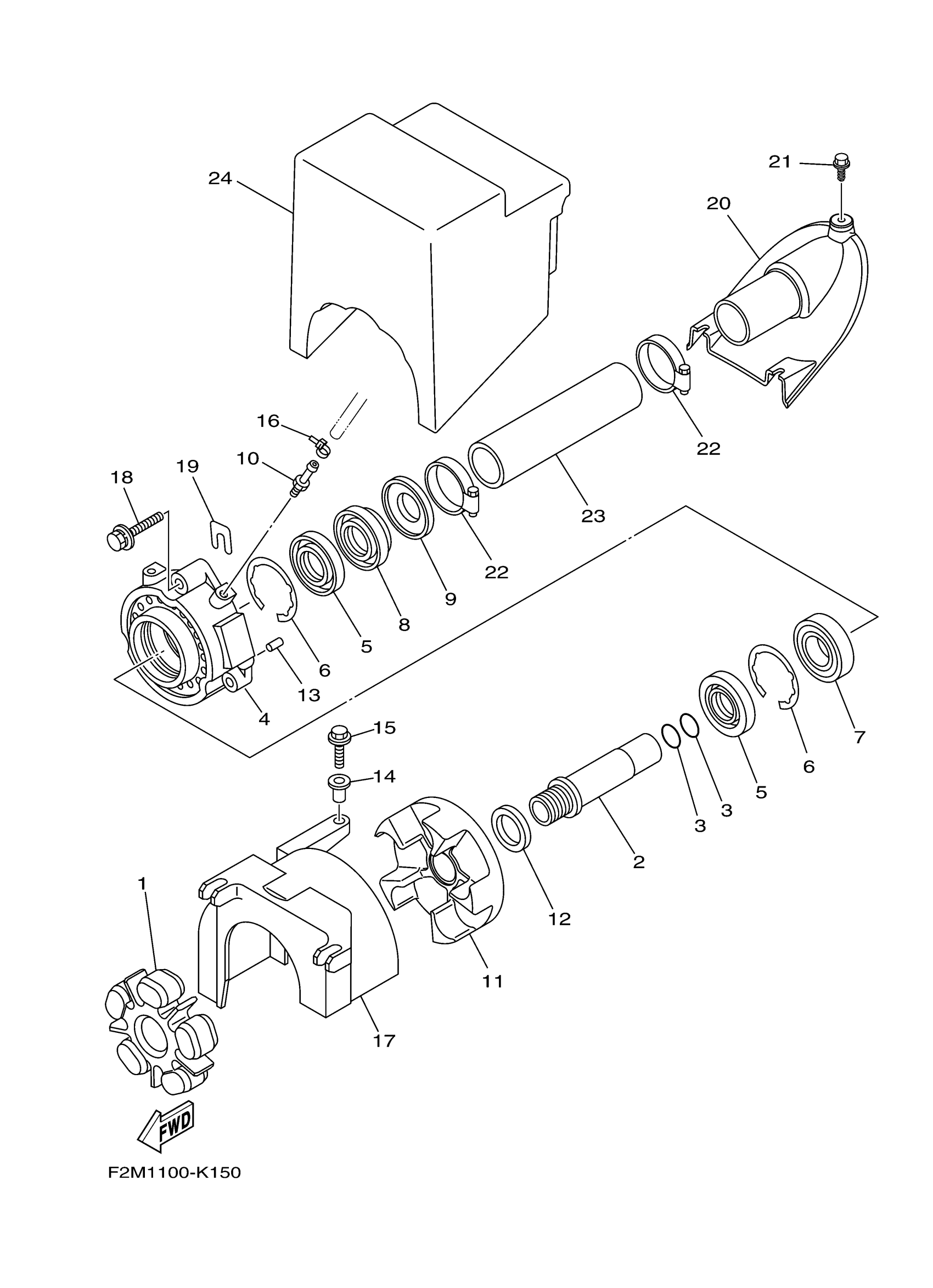

Yamaha VX1800AK (VXR) F2M1 2011 JET UNIT 2 Diagram

#

Description
Price

1

RUBBER SHAFT COUPL

6BH-4581J-01-00

Unavailable

2

SHAFT, COUPLER

6S5-R1323-00-00

Unavailable

3

O-RING(6U1)

93210-22MF1-00

$7.49

4

HOUSING, BEARING

6S5-G5332-00-00

Unavailable

5

. OIL SEAL

93102-29008-00

Unavailable

6

CIRCLIP

93450-66156-00

Unavailable

7

BEARING

93306-206Y8-00

Unavailable

8

OIL SEAL

93102-29009-00

Unavailable

9

WASHER, THRUST

6S5-45613-10-00

Unavailable

10

NIPPLE, HOSE

61L-45378-00-00

Unavailable

11

FLANGE, COUPLING 1

6S5-G5593-00-00

Unavailable

12

WASHER

6S5-12289-00-00

Unavailable

13

PIN, DOWEL (614)

93606-12019-00

$4.24

14

COLLAR

90387-06M60-00

Unavailable

15

BOLT, WITH WASHER

90119-06892-00

Unavailable

16

CLAMP

90465-10098-00

Unavailable

17

COVER

6S5-R1381-01-00

Unavailable

18

BOLT, WITH WASHER

90119-089U1-00

Unavailable

19

SHIM (0.5)

GD0-U7249-00-05

Unavailable

20

JOINT, PIPE

F2N-U883E-00-00

Unavailable

21

BOLT

90109-06832-00

Unavailable

22

BAND, HOSE 55

90601-155U4-00

Unavailable

23

PIPE, 1

F2C-U883B-00-00

Unavailable

24

PAD

F1K-U892D-00-00

Unavailable
