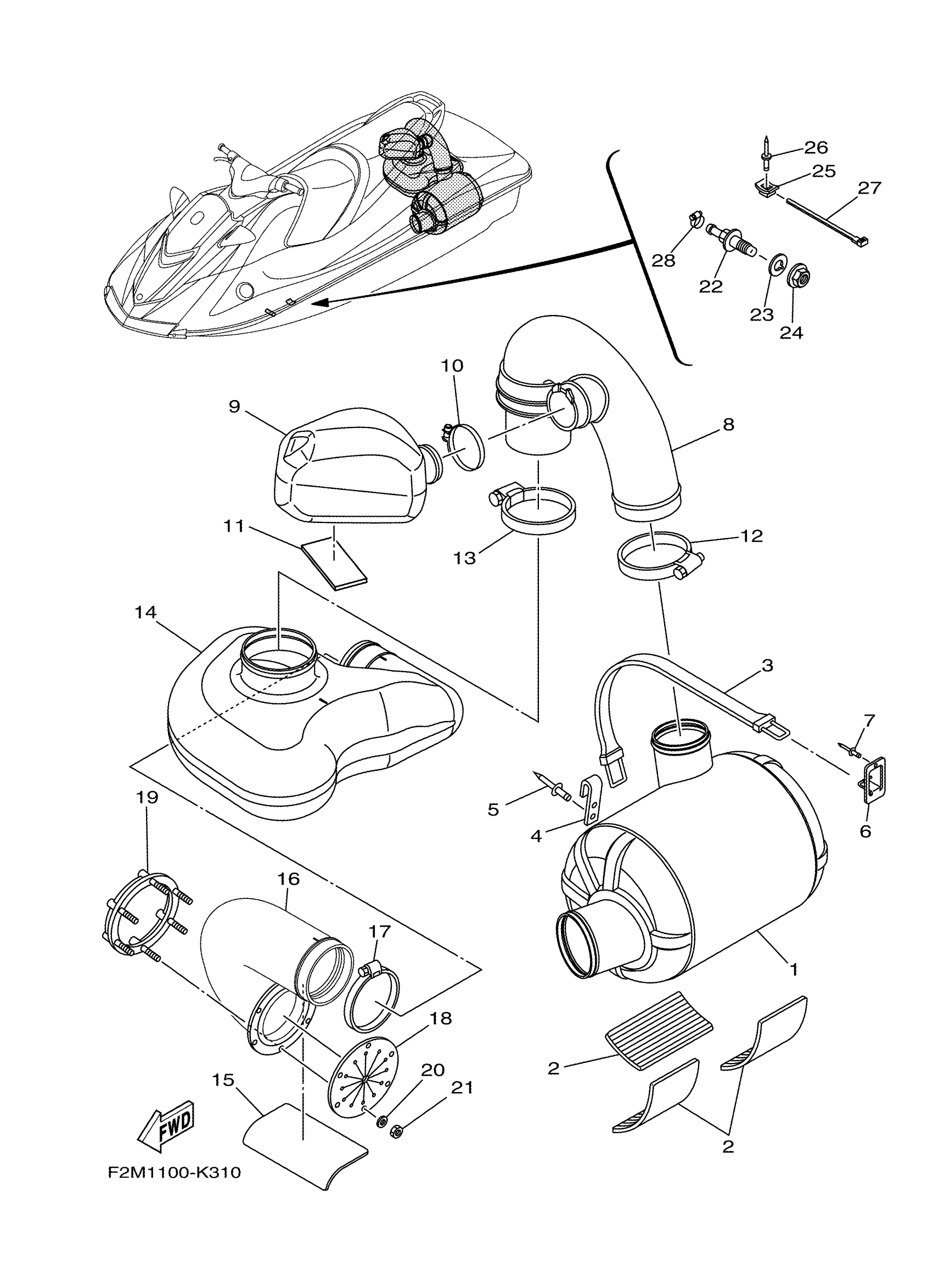

Yamaha VX1800AK (VXR) F2M1 2011 EXHAUST 3 Diagram
#
1
WATER LOCK COMP.
F4P-U7550-00-00
Unavailable
2
PAD, BATTERY
F1S-U8221-00-00
Unavailable
3
BAND, FUEL TANK
EW2-67821-00-00
Unavailable
4
HOOK A
GA7-65772-00-00
Unavailable
5
RIVET (EU0)
90267-48938-00
Unavailable
6
HOOK A
F1K-U5772-04-00
Unavailable
7
RIVET (EU0)
90267-48938-00
Unavailable
8
HOSE, EXHAUST
F1W-U7555-01-00
Unavailable
9
RESONATOR 1
F1W-U753C-01-00
Unavailable
10
BAND, HOSE 70
90601-170UG-00
Unavailable
11
MAT 2
F1K-U759C-00-00
Unavailable
12
HOSE CLAMP ASSY
90450-99801-00
Unavailable
13
HOSE CLAMP ASSY
90450-99804-00
Unavailable
14
TANK, WATER
F2N-U4261-00-00
Unavailable
15
PAD, BATTERY
F1S-U8221-00-00
Unavailable
16
HOSE,EXHAUST 3
F2N-U758D-00-00
Unavailable
17
HOSE CLAMP ASSY
90450-99801-00
Unavailable
18
VALVE, EXHAUST
F1B-U751G-10-00
Unavailable
19
PLATE
F1S-U757B-01-00
Unavailable
20
WASHER
9299R-06200-00
Unavailable
21
NUT, NYLON
9572R-06300-00
Unavailable
22
PILOT, WATER
F1K-6753B-00-00
Unavailable
23
GASKET
F1B-67564-00-00
Unavailable
24
NUT
F0X-62733-00-00
Unavailable
25
BASE, CLAMP
F1W-U828M-00-00
Unavailable
26
RIVET, BLIND
90267-489U6-00
Unavailable
27
CLAMP
90464-32801-00
Unavailable
28
CLIP
90467-17802-00
Unavailable
