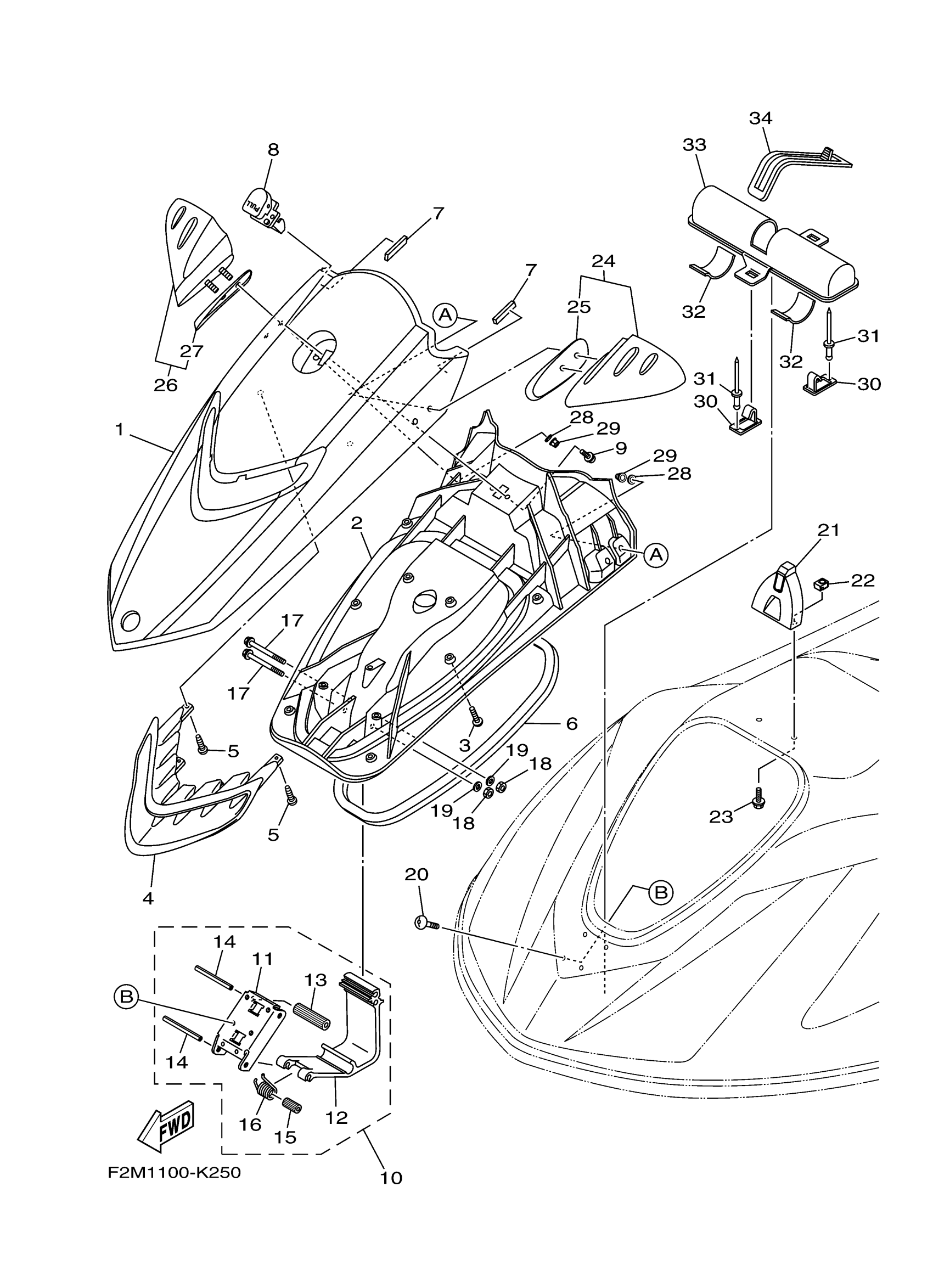

Yamaha VX1800AK (VXR) F2M1 2011 ENGINE HATCH 2 Diagram

#

Description
Price

1

LID, ENGINE ROOM (DPBMT) (DEEP PURPLISH BLUE METALLIC T)

F2M-U517B-00-P0

Unavailable

1

LID, ENGINE ROOM (LNMP) (LIGHT GRAY METALLIC 3)

F2M-U517B-00-P1

Unavailable

2

COVER,VENTILATOR 1

F2M-U213B-00-00

Unavailable

3

SCREW(GH1)

90149-05903-00

$2.31

4

ORNAMENT, CENTER

F2M-U517V-00-00

$71.20

5

SCREW(GH1)

90149-05903-00

$2.31

6

PACKING 1

F2N-U2663-01-00

$44.50

7

PACKING

F2C-U1743-00-00

$1.87

8

LOCK, LID

F2M-6517C-00-00

$124.23

9

BOLT, WITH WASHER (EW3)

90119-05912-00

$4.09

10

HINGE ASSY.

F1K-U515A-00-00

$315.14

11

. PLATE, HINGE LID

F1K-U518E-04-00

$42.41

12

. HINGE, LID

F1K-U517D-05-00

$315.14

13

. ROLLER, DETENT

F1K-U135C-01-00

$9.08

14

PIN, HINGE

F1K-U517R-01-00

$3.23

15

. SPACER 1

F1K-U471E-03-00

$13.62

16

. SPRING, TORSION

F1K-U283B-02-00

$5.67

17

BOLT, FLANGE

90105-06826-00

$3.02

18

NUT, NYLON

9572R-06300-00

$2.80

19

WASHER

9299R-06200-00

$0.43

20

SCREW

F2N-67823-10-00

$2.02

21

HOOK,LID LOCK

F2N-U517F-00-00

$6.82

22

NUT

F1X-U517E-01-00

$7.11

23

BOLT, WITH WASHER

90119-06880-00

$3.52

24

MIRROR LH

F2N-U596B-00-00

$43.06

25

. SPACER 1

F2N-U471E-00-00

$18.17

26

MIRROR RH

F2N-U596C-00-00

$43.06

27

. SPACER 2

F2N-U471F-00-00

$18.92

28

WASHER

9299R-08200-00

Unavailable

29

NUT, NYLON (6J8)

95780-08300-00

$10.55

30

HOOK A

F1K-U5772-04-00

$6.29

31

RIVET (EU0)

90267-48938-00

$5.00

32

MAT 2

F1K-U759C-00-00

$1.72

33

BOX, FIRE EXTINGUISHER

F1K-U5983-01-00

$17.94

34

BAND 1

F2P-U828K-00-00

$5.87
