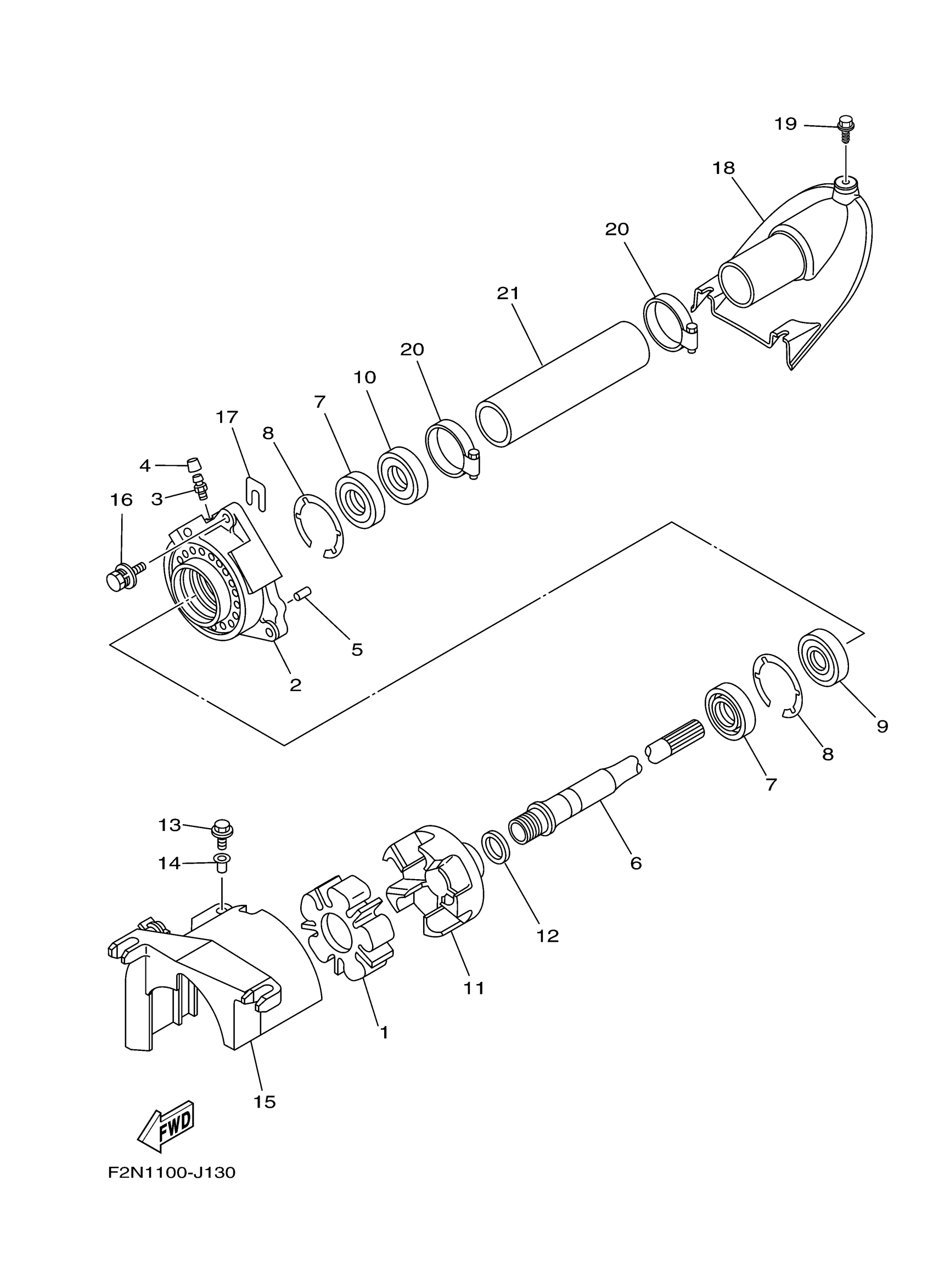

Yamaha VX1100J (WAVERUNNER VX SPORT) F2N7 2010 JET UNIT 2 Diagram

#

Description
Price

1

RUBBER SHAFT COUPL

6D3-4581J-01-00

Unavailable

2

HOUSING, BEARING

61X-G5332-00-00

$134.54

3

NIPPLE, GREASE

93700-06M03-00

$7.89

4

CAP, GREASE NIPPLE

663-45119-01-00

$1.81

5

PIN, DOWEL (614)

93606-12019-00

$3.50

6

SHAFT, DRIVE

6BU-45511-00-00

$398.49

7

OIL SEAL(62T)

93101-25M55-00

$24.36

8

CIRCLIP

93430-47M04-00

$5.31

9

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

$33.83

10

. OIL SEAL

93102-25009-00

$30.39

11

FLANGE, COUPLING 1

6D3-45593-00-94

$88.04

12

WASHER, PLATE

90201-24800-00

$1.43

13

BOLT, WITH WASHER

90119-06892-00

$4.01

14

COLLAR

90387-06M60-00

$6.83

15

COVER

60E-R1381-01-00

Unavailable

16

BOLT, WITH WASHER

90119-08907-00

$5.17

17

SHIM (0.5)

GD0-U7249-00-05

$2.16

18

JOINT, PIPE

F2N-U883E-00-00

$9.32

19

BOLT

90109-06832-00

$2.58

20

BAND, HOSE 55

90601-155U4-00

$6.17

21

PIPE 1

F2N-U883B-00-00

$17.22
