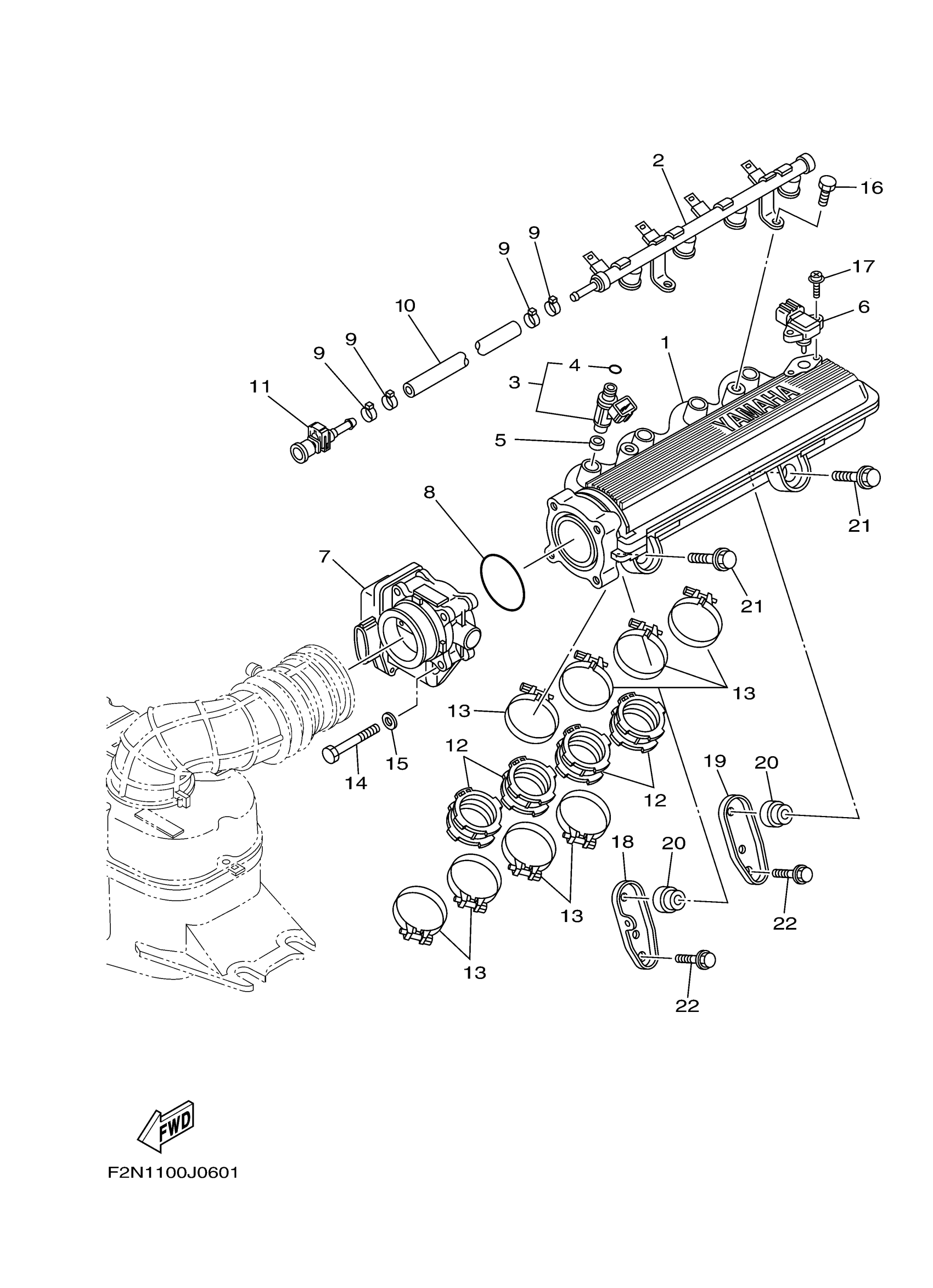

Yamaha VX1100J (WAVERUNNER VX SPORT) F2N7 2010 INTAKE 2 Diagram

#

Description
Price

1

MANIFOLD, INTAKE 1

6D3-13641-00-00

$620.57

2

DELIVERY PIPE

6D3-12880-00-00

$601.46

3

. INJECTOR

60E-13761-10-00

$204.40

4

.. O-RING

60E-14147-00-00

$7.06

5

GASKET

90430-09002-00

$9.00

6

. SENSOR ASSY

68F-83688-00-00

$235.97

7

THROTTLE BODY ASSY

6D3-13750-00-00

$1,679.40

8

SEAL

6D3-14457-00-00

$54.40

9

HOSE CLAMP ASSY

90450-17M17-00

$7.59

10

HOSE

6D3-14294-11-00

Unavailable

11

FUEL PIPE JOINT

6S5-24300-01-00

$23.17

12

JOINT, THROTTLE BODY 1

6D3-13795-01-00

$16.90

13

HOSE CLAMP ASSY

90450-57006-00

$12.15

14

BOLT 1

68V-13573-00-00

$14.99

15

WASHER

6P2-13578-00-00

$6.57

16

. BOLT

63P-14446-00-00

$9.27

17

SCREW 3

6D3-81147-00-00

$4.41

18

STAY

6D3-14413-00-00

$15.43

19

STAY 2

6D3-14414-10-00

$15.43

20

COLLAR

60E-14449-00-94

$13.24

21

BOLT, WITH WASHER

90119-08050-00

$5.29

22

BOLT, WITH WASHER

90119-08074-00

$3.88
