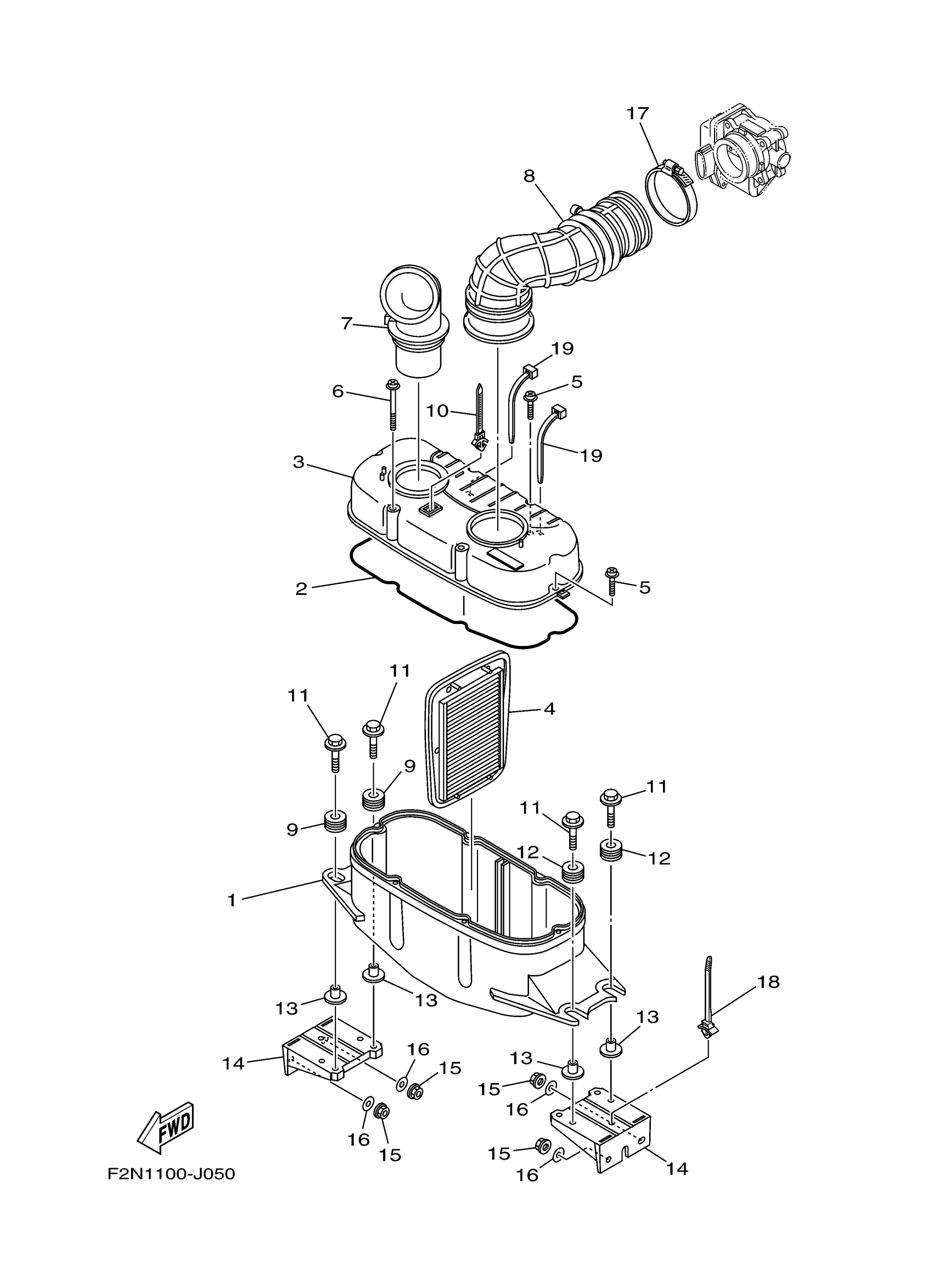

Yamaha VX1100J (WAVERUNNER VX SPORT) F2N7 2010 INTAKE Diagram
#
Description
Price
1
CASE, AIR CLEANER 1
6D3-14411-01-00
Unavailable
3
CASE, AIR CLEANER 2
6D3-14421-03-00
Unavailable
4
ELEMENT, AIR CLEANER
6D3-14451-00-00
Unavailable
5
SCREW, WITH WASHER
90159-05013-00
Unavailable
6
SCREW, WITH WASHER
90159-05014-00
Unavailable
7
DUCT
6D3-14437-00-00
Unavailable
8
PIPE
6D3-14419-01-00
Unavailable
9
GROMMET
90480-22M15-00
Unavailable
11
BOLT, WITH WASHER
90119-08187-00
Unavailable
12
GROMMET
90480-22M15-00
Unavailable
13
COLLAR
90387-08M37-00
Unavailable
14
BRACKET 2
F2N-U8572-00-00
Unavailable
15
NUT, NYLON (6J8)
95780-08300-00
Unavailable
16
WASHER
9299R-08200-00
Unavailable
17
BAND, HOSE 75
90601-175UR-00
Unavailable
18
CLAMP
90464-38800-00
Unavailable
19
CLAMP(JN6)
90464-40825-00
Unavailable
