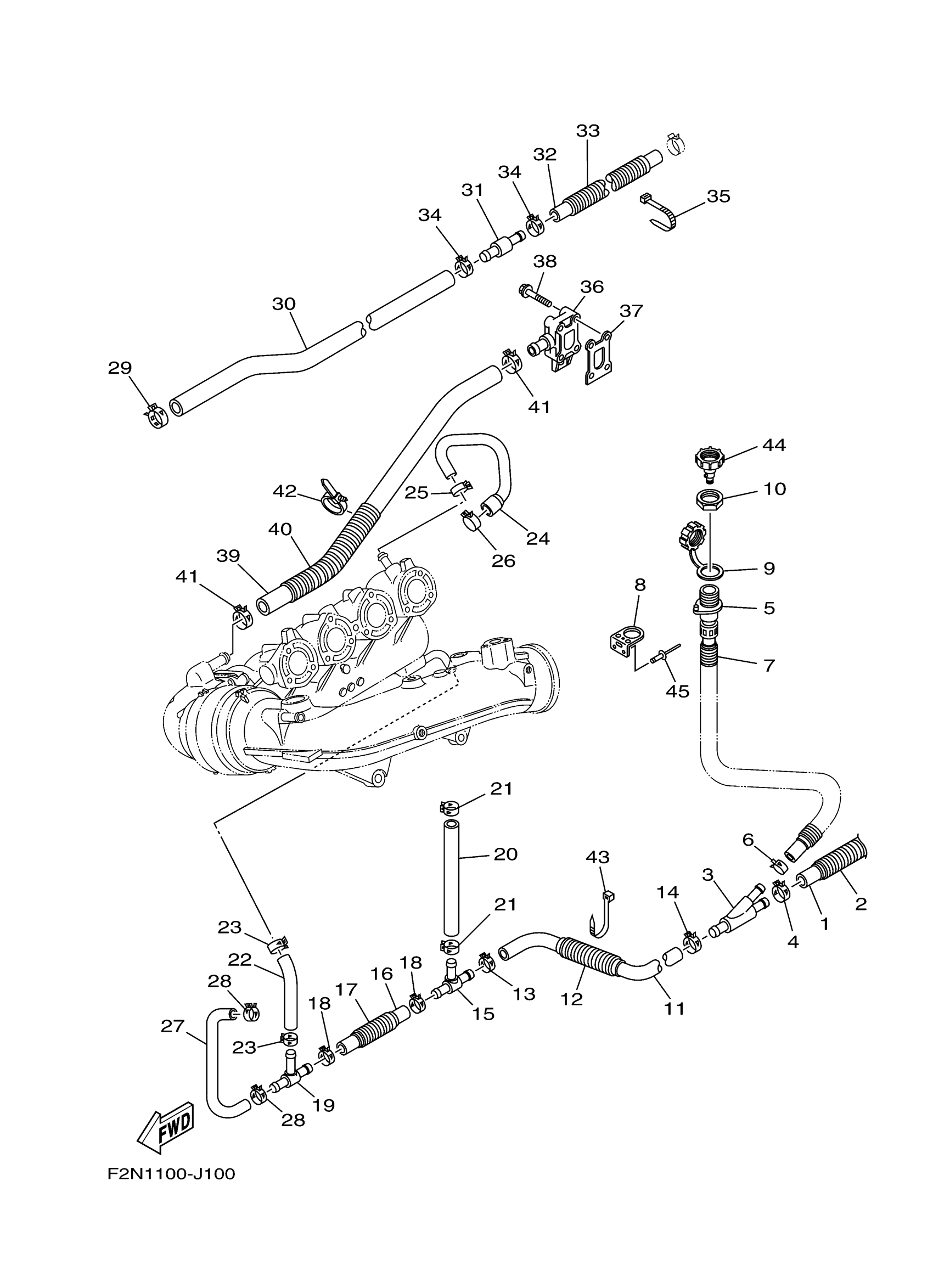

Yamaha VX1100J (WAVERUNNER VX SPORT) F2N7 2010 EXHAUST 2 Diagram
#
1
HOSE (L300)
90445-21805-00
Unavailable
2
HOSE, WITH SPRING (L200)
90447-22004-00
Unavailable
3
JOINT, HOSE 1
60E-12581-00-00
Unavailable
4
CLIP
90467-200A0-00
Unavailable
5
JOINT ASSY
63M-12580-00-00
Unavailable
6
CLIP
90467-150A0-00
Unavailable
7
TUBE (L485)
90447-19801-00
Unavailable
8
STAY
60E-12443-00-00
Unavailable
9
CAP,1
682-84385-01-00
Unavailable
10
NUT
EU0-61652-00-00
Unavailable
11
HOSE 1
6BU-1243A-00-00
Unavailable
12
HOSE, WITH SPRING (L300)
90447-22003-00
Unavailable
13
CLIP
90467-200A0-00
Unavailable
14
CLIP
90467-200A0-00
Unavailable
15
JOINT, HOSE 3
60E-12584-00-00
Unavailable
16
HOSE 6
6S5-12589-01-00
Unavailable
17
HOSE, WITH SPRING (L100)
90447-22001-00
Unavailable
18
CLIP
90467-200A0-00
Unavailable
19
JOINT, HOSE 3
6D3-12584-00-00
Unavailable
20
HOSE 5
6D3-1244H-10-00
Unavailable
21
CLIP
90467-160A0-00
Unavailable
22
HOSE (L108)
90445-18M03-00
Unavailable
23
CLIP
90467-160A0-00
Unavailable
24
HOSE 2
6D3-12577-10-00
Unavailable
25
CLIP
90467-170A0-00
Unavailable
26
CLIP
90467-200A0-00
Unavailable
27
HOSE, 4
6D3-1244G-10-00
Unavailable
28
CLIP
90467-160A0-00
Unavailable
29
CLIP
90467-210A0-00
Unavailable
30
HOSE (L340)
90445-22005-00
Unavailable
31
JOINT, HOSE 4
6BU-12594-00-00
Unavailable
32
HOSE (L800)
90445-22006-00
Unavailable
33
TUBE (L650)
90447-25003-00
Unavailable
34
CLIP
90467-210A0-00
Unavailable
35
CLAMP(3XW)
90464-35132-00
Unavailable
36
JOINT
6D3-12446-00-00
Unavailable
37
GASKET
60E-12435-00-00
Unavailable
38
BOLT, FLANGE
90105-06035-00
Unavailable
39
HOSE (L530)
90445-21004-00
Unavailable
40
HOSE, WITH SPRING (L200)
90447-22005-00
Unavailable
41
CLIP
90467-200A0-00
Unavailable
42
CLAMP
90464-20005-00
Unavailable
43
CLAMP(3XW)
90464-35132-00
Unavailable
44
CONDUCTION ASSY (US)
67X-E2590-00-00
Unavailable
45
RIVET (EU0)
90267-48938-00
Unavailable
