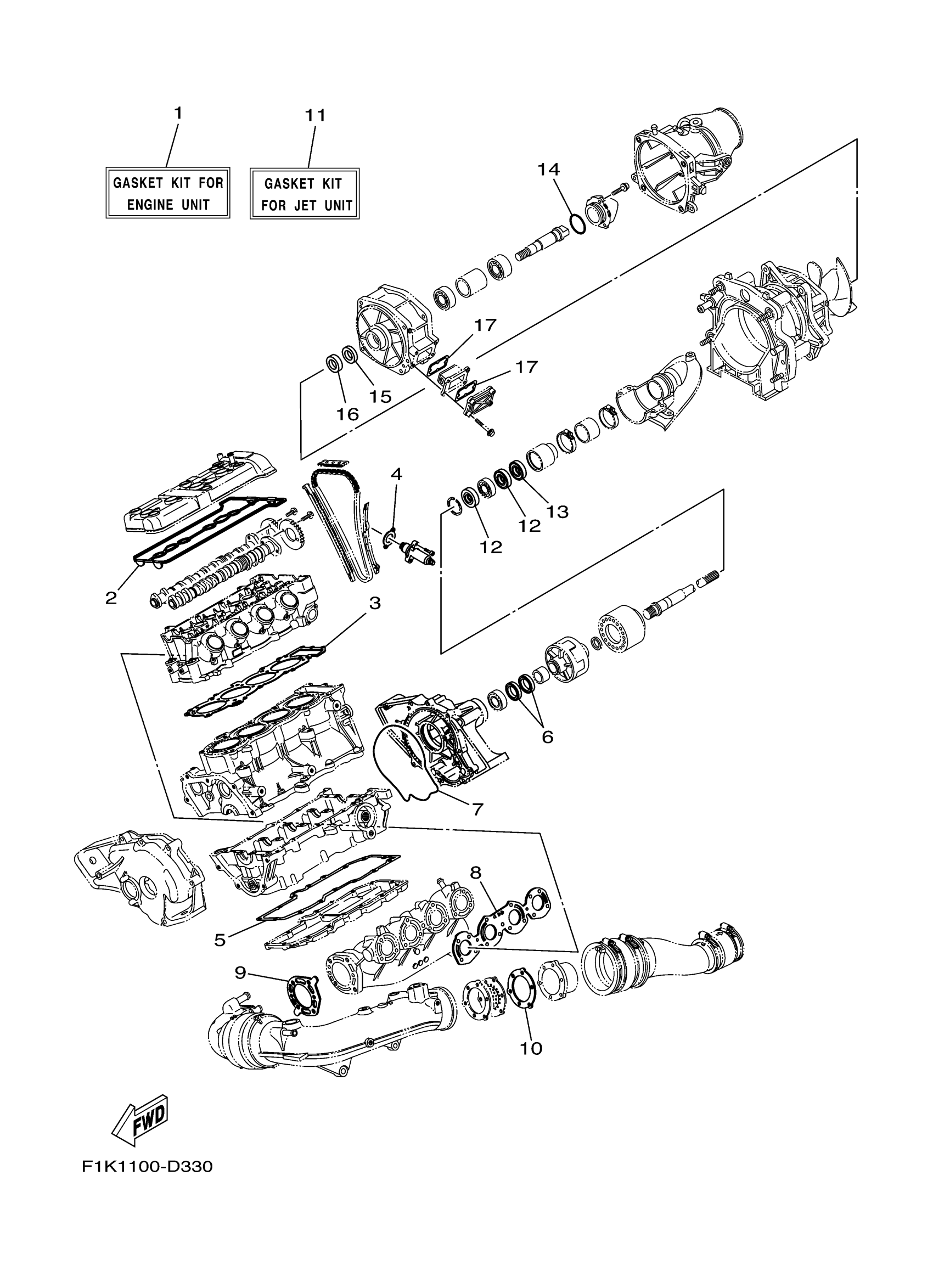

Yamaha VX1100H (WAVERUNNER VX1100CH WAVERUNNER VX SPORT) F2L8 2009 REPAIR KIT 1 Diagram

Description

Price

GASKET KIT FOR ENGINE UNIT

6D3-W0001-00-00

$155.79

GASKET, HEAD COVER 1

60E-11193-01-00

$51.70

. GASKET, CYLINDER HEAD 1

6D3-11181-00-00

$95.37

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

GASKET

6B6-13557-01-00

$37.32

OIL SEAL

93101-35004-00

$25.36

GASKET

6B6-13475-01-00

$24.39

GASKET, EXHAUST PIPE

6D3-14613-00-00

$30.39

GASKET, MUFFLER DAMPER 1

6D3-14739-01-00

$45.93

. GASKET, EXHAUST PIPE

60E-14623-00-00

$4.55

GASKET KIT FOR JET UNIT

6D3-W0001-20-00

Unavailable

OIL SEAL(62T)

93101-25M55-00

$24.36

OIL SEAL

93101-24001-00

$30.69

. O-RING

93210-464A3-00

$3.03

. OIL SEAL

93101-21002-00

$20.13

. OIL SEAL

93101-21001-00

$20.13

. O-RING

66V-42414-00-00

$5.31
