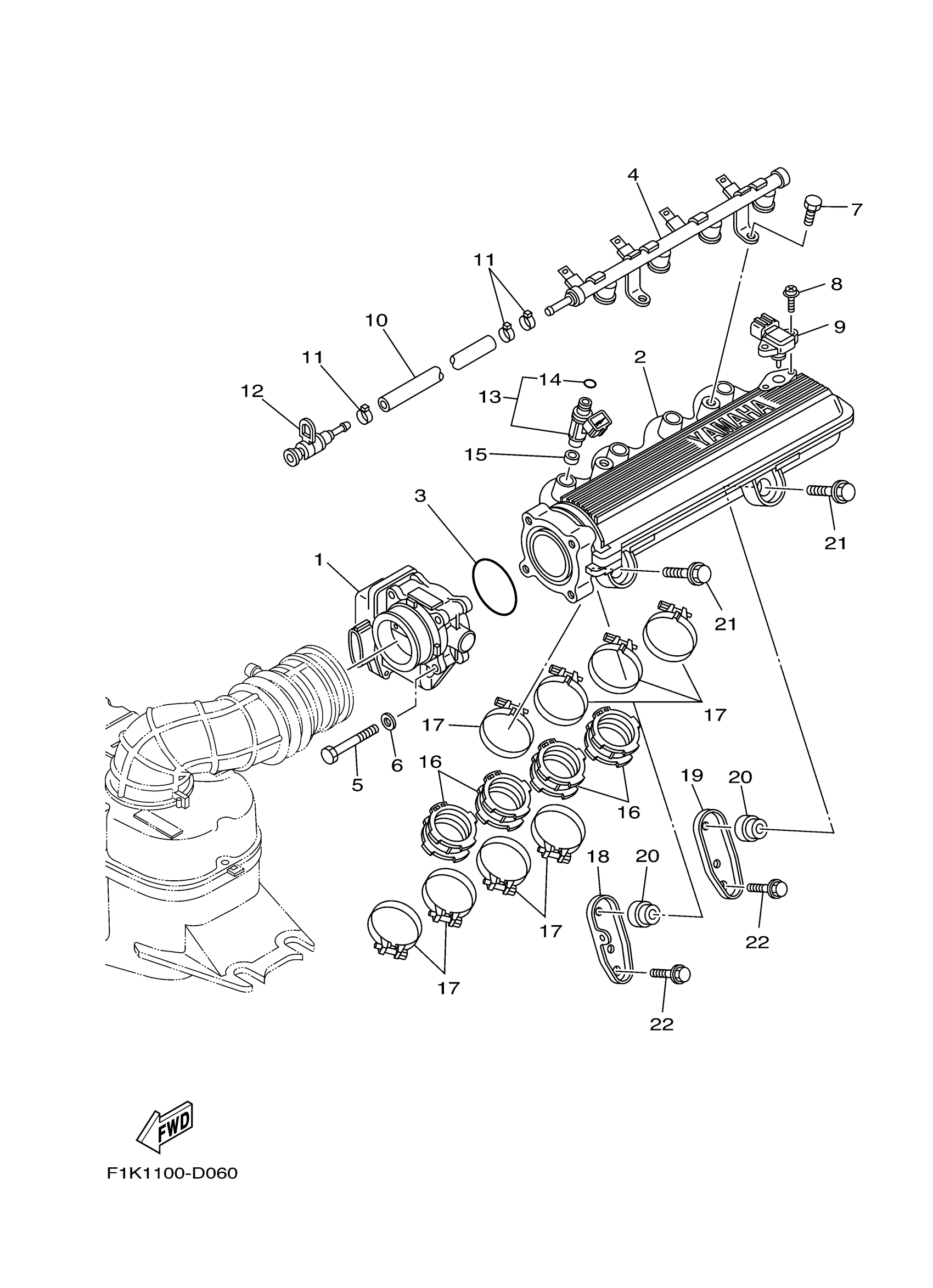

Yamaha VX1100H (WAVERUNNER VX1100CH WAVERUNNER VX SPORT) F2L8 2009 INTAKE 2 Diagram

Description

Price

THROTTLE BODY ASSY

6D3-13750-00-00

Unavailable

MANIFOLD, INTAKE 1

6D3-13641-00-00

$639.38

SEAL

6D3-14457-00-00

$56.05

DELIVERY PIPE

6D3-12880-00-00

$619.68

BOLT 1

68V-13573-00-00

$14.99

WASHER

6P2-13578-00-00

$6.57

. BOLT

63P-14446-00-00

$9.27

SCREW 3

6D3-81147-00-00

$4.55

. SENSOR ASSY

68F-83688-00-00

$269.99

HOSE

6D3-14294-11-00

Unavailable

HOSE CLAMP ASSY

90450-17M17-00

$7.40

FUEL PIPE JOINT

60E-24300-01-00

$30.99

. INJECTOR

60E-13761-10-00

$210.59

.. O-RING

60E-14147-00-00

$7.27

GASKET

90430-09002-00

$9.00

JOINT, THROTTLE BODY 1

6D3-13795-01-00

$12.59

HOSE CLAMP ASSY

90450-57006-00

$11.85

STAY

6D3-14413-00-00

$15.89

STAY 2

6D3-14414-10-00

$15.49

COLLAR

60E-14449-00-94

$15.00

BOLT, WITH WASHER

90119-08050-00

$4.44

BOLT, WITH WASHER

90119-08074-00

$4.09
