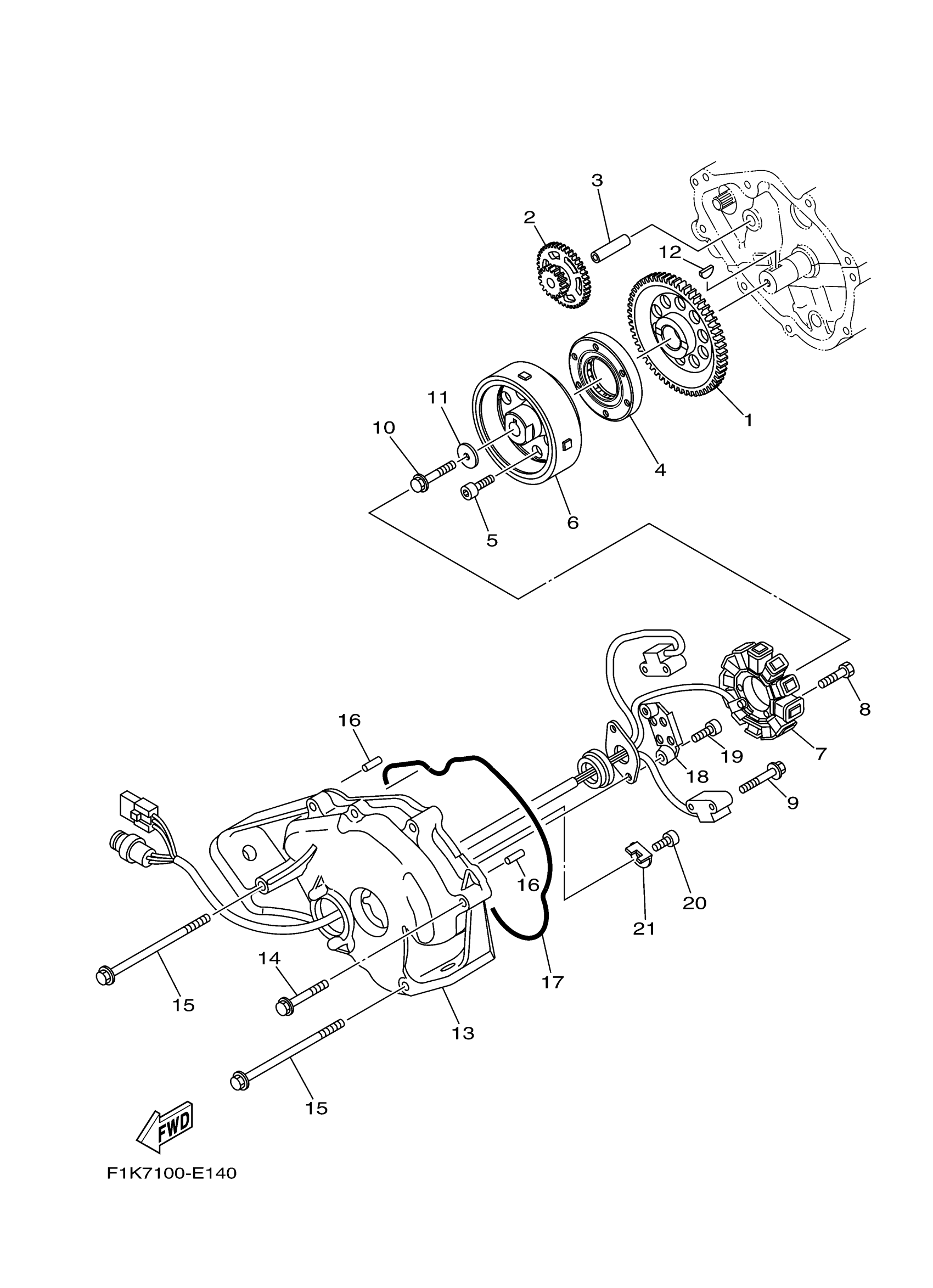

Yamaha VX1100H (WAVERUNNER VX1100CH WAVERUNNER VX SPORT) F2L8 2009 GENERATOR Diagram

#

Description
Price

1

GEAR 3

6D3-15515-00-00

$221.20

2

GEAR, IDLER 2

60E-15517-00-00

$112.11

3

SHAFT 1

60E-15521-00-00

$11.35

4

STARTER ONE-WAY ASSY

4WM-15590-00-00

$285.52

5

BOLT, SOCKET

91317-08020-00

$2.19

6

ROTOR ASSY

6D3-81450-00-00

$437.86

7

STATOR ASSY

6D3-81410-02-00

$496.95

8

BOLT,SOCKET

91317-06035-00

$3.27

9

BOLT, WITH WASHER

97513-05514-00

$3.64

10

BOLT, WASHER BASED

90105-105A6-00

Unavailable

11

WASHER, PLATE

90201-103U7-00

Unavailable

12

KEY, WOODRUFF(1WG)

90280-03047-00

$4.54

13

COVER, FLYWHEEL

6D3-81337-00-94

$327.26

14

BOLT, WITH WASHER

90119-10016-00

$6.36

15

BOLT, WITH WASHER

90119-10M19-00

$8.32

16

PIN, DOWEL

93608-16M16-00

$2.41

17

O-RING

93212-04001-00

Unavailable

18

CLAMP

60E-81328-00-00

$7.27

19

BOLT,SOCKET

91317-06014-00

Unavailable

20

BOLT, SOCKET

91317-05010-00

Unavailable

21

PLATE

6D3-81845-00-00

$1.64
