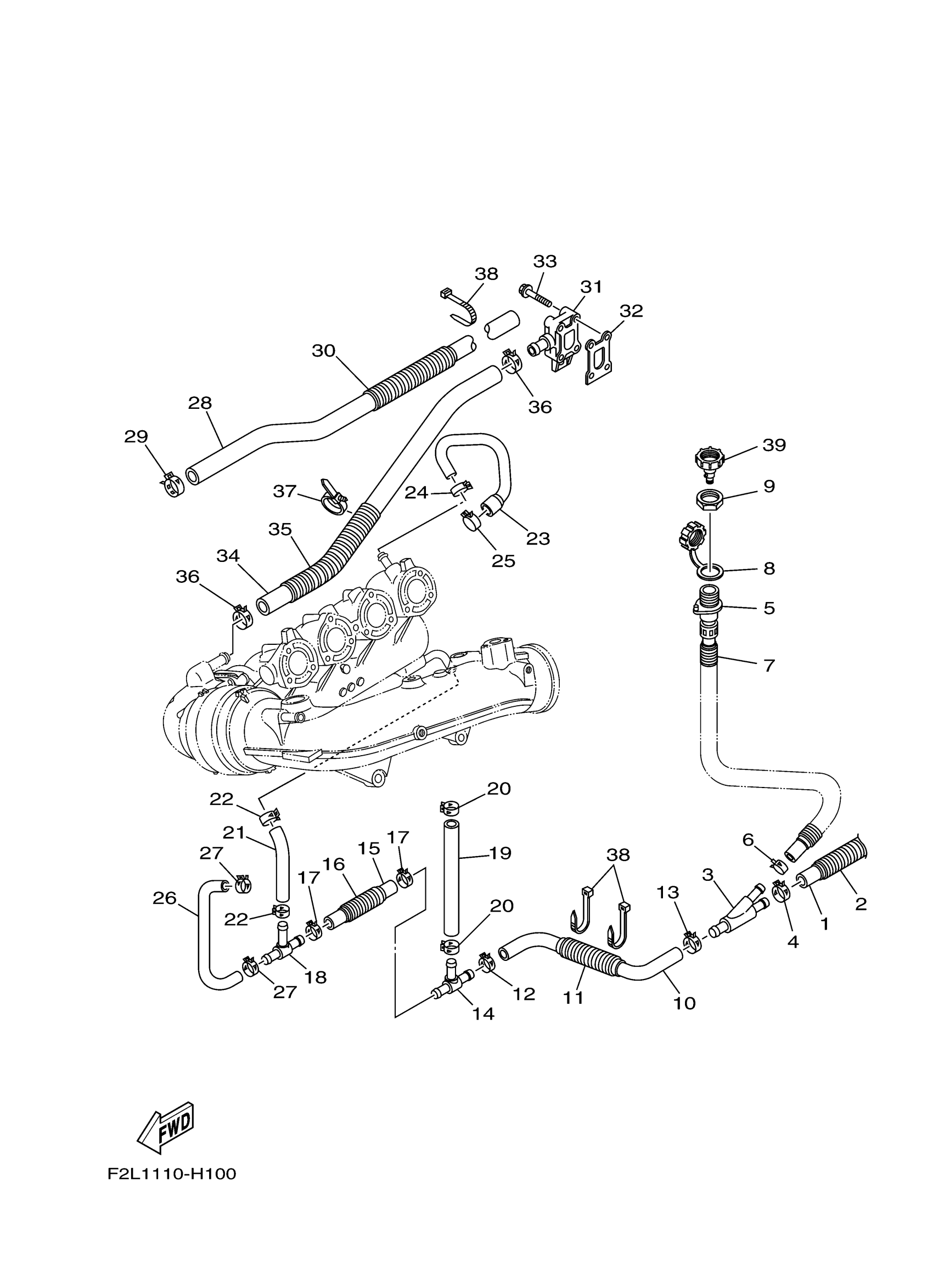

Yamaha VX1100H (WAVERUNNER VX1100CH WAVERUNNER VX SPORT) F2L8 2009 EXHAUST 2 Diagram

#

Description
Price

1

HOSE (L300)

90445-21805-00

Unavailable

2

HOSE, WITH SPRING (L200)

90447-22004-00

$5.00

3

JOINT, HOSE 1

60E-12581-00-00

$15.49

4

CLIP

90467-200A0-00

$7.40

5

JOINT ASSY

63M-12580-00-00

$99.98

6

CLIP

90467-150A0-00

$3.33

7

HOSE

90446-24M83-00

Unavailable

8

CAP,1

682-84385-01-00

$9.08

9

NUT

EU0-61652-00-00

$11.48

10

HOSE 1

6D3-1243A-10-00

$40.89

11

HOSE, WITH SPRING (L200)

90447-22004-00

$5.00

12

CLIP

90467-200A0-00

$7.40

13

CLIP

90467-200A0-00

$7.40

14

JOINT, HOSE 3

60E-12584-00-00

$6.36

15

HOSE 6

6S5-12589-01-00

Unavailable

16

HOSE, WITH SPRING (L100)

90447-22001-00

$6.21

17

CLIP

90467-200A0-00

$7.40

18

JOINT, HOSE 3

6D3-12584-00-00

$6.82

19

HOSE 5

6D3-1244H-10-00

$15.89

20

CLIP

90467-160A0-00

$2.95

21

HOSE (L108)

90445-18M03-00

Unavailable

22

CLIP

90467-160A0-00

$2.95

23

HOSE 2

6D3-12577-10-00

$43.92

24

CLIP

90467-170A0-00

$2.80

25

CLIP

90467-200A0-00

$7.40

26

HOSE, 4

6D3-1244G-10-00

$36.99

27

CLIP

90467-160A0-00

$2.95

28

HOSE (L1010)

90445-22003-00

Unavailable

29

CLIP

90467-210A0-00

$5.45

30

HOSE, WITH SPRING (L200)

90447-22005-00

$8.32

31

JOINT

6D3-12446-00-00

$39.38

32

GASKET

60E-12435-00-00

$3.64

33

BOLT, FLANGE

90105-06035-00

$2.27

34

HOSE (L530)

90445-21004-00

$25.49

35

HOSE, WITH SPRING (L200)

90447-22005-00

$8.32

36

CLIP

90467-200A0-00

$7.40

37

CLAMP

90464-20005-00

$2.11

38

CLAMP(3XW)

90464-35132-00

Unavailable

39

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08
