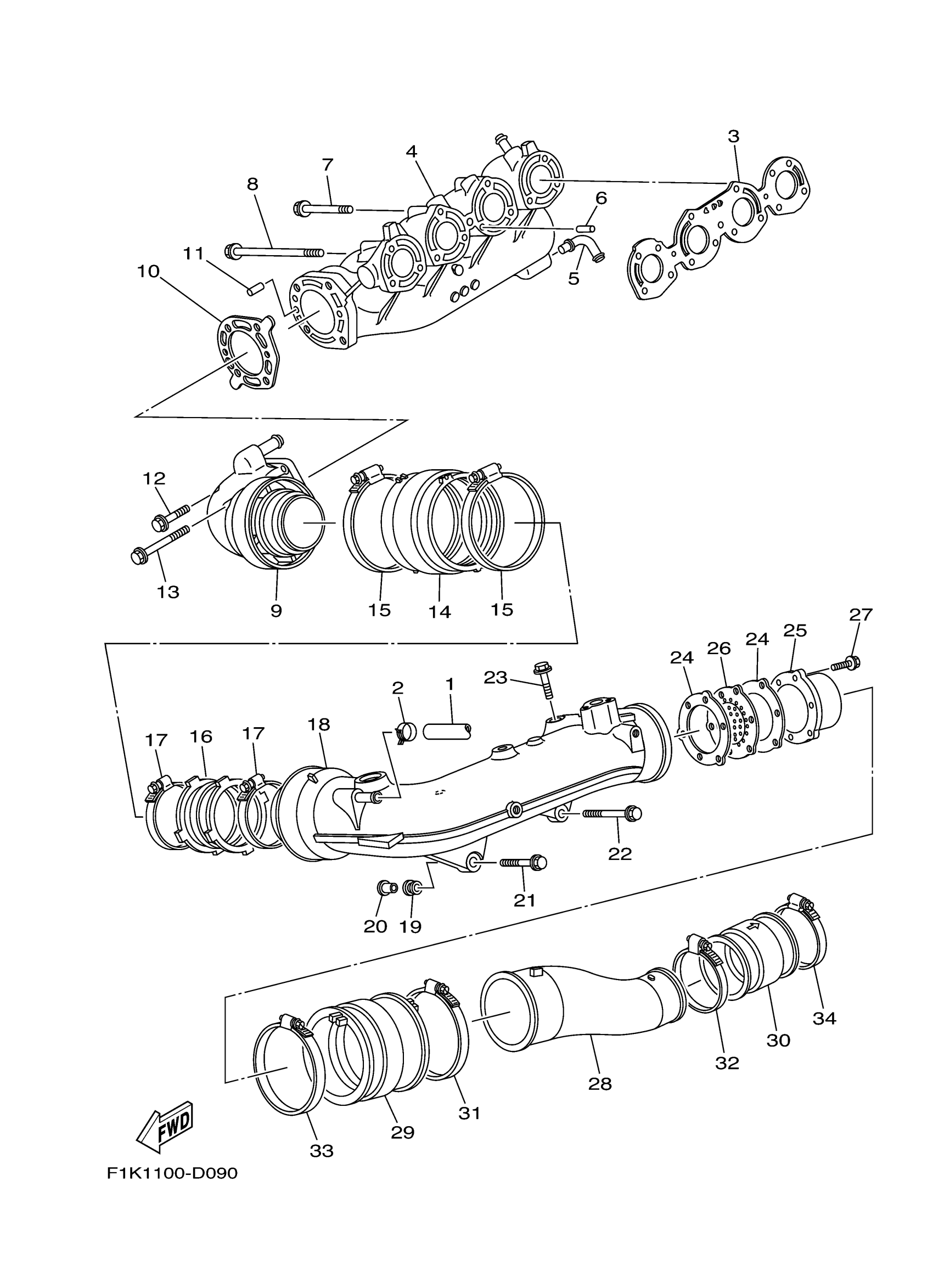

Yamaha VX1100H (WAVERUNNER VX1100CH WAVERUNNER VX SPORT) F2L8 2009 EXHAUST 1 Diagram

#

Description
Price

1

HOSE (L870)

90445-16005-00

Unavailable

2

CLIP

90467-160A0-00

Unavailable

3

GASKET, EXHAUST PIPE

6D3-14613-00-00

Unavailable

4

MUFFLER 1

6D3-14711-00-94

Unavailable

5

NIPPLE, HOSE

60E-11372-10-00

Unavailable

6

PIN, DOWEL

93608-16M16-00

Unavailable

7

BOLT, WITH WASHER

90119-08036-00

Unavailable

8

BOLT, WITH WASHER

90119-08075-00

Unavailable

9

RING, JOINT

6D3-14712-00-94

Unavailable

10

GASKET, MUFFLER DAMPER 1

6D3-14739-01-00

Unavailable

11

PIN, DOWEL (614)

93606-12019-00

$4.24

12

BOLT, WITH WASHER

90119-08036-00

Unavailable

13

BOLT, WITH WASHER

90119-08031-00

Unavailable

14

JOINT, EXHAUST 1

6D3-14615-00-00

Unavailable

15

HOSE CLAMP ASSY

90450-99005-00

Unavailable

16

JOINT, EXHAUST 2

6D3-14625-00-00

Unavailable

17

HOSE CLAMP ASSY

90450-90001-00

Unavailable

18

MUFFLER 2

6D3-14721-00-94

Unavailable

19

GROMMET(62L)

90480-21M63-00

Unavailable

20

COLLAR

90387-11008-00

Unavailable

21

BOLT, WITH WASHER

90119-10011-00

Unavailable

22

BOLT, WITH WASHER

90119-10017-00

Unavailable

23

BOLT, WITH WASHER

90119-10013-00

Unavailable

24

. GASKET, EXHAUST PIPE

60E-14623-00-00

Unavailable

25

PIPE, TAIL

60E-14784-00-94

Unavailable

26

PLATE, SILENCER 6

6D3-1469W-10-00

Unavailable

27

BOLT, WASHER BASED(4EB)

90105-06790-00

Unavailable

28

PIPE, OUTLET

6D3-14752-00-94

Unavailable

29

PIPE 2

6BU-1475E-00-00

Unavailable

30

PIPE 3

6BU-1475F-00-00

Unavailable

31

HOSE CLAMP ASSY

90450-99004-00

Unavailable

32

HOSE CLAMP ASSY

90450-94001-00

Unavailable

33

HOSE CLAMP ASSY

90450-99004-00

Unavailable

34

HOSE CLAMP ASSY

90450-94001-00

Unavailable
