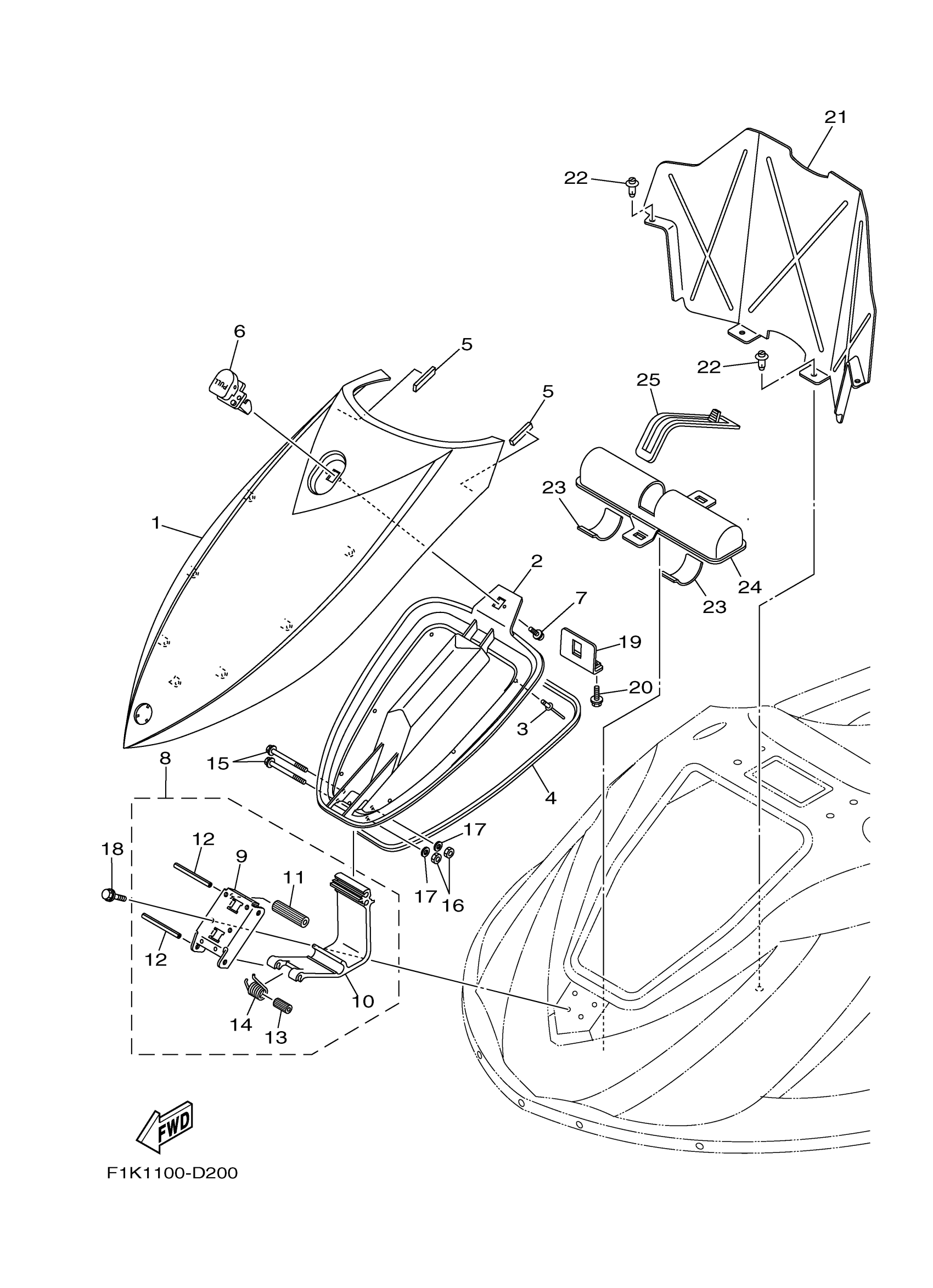

Yamaha VX1100H (WAVERUNNER VX1100CH WAVERUNNER VX SPORT) F2L8 2009 ENGINE HATCH 2 Diagram

#

Description
Price

1

LID, ENGINE ROOM

F1K-U517B-00-P0

Unavailable

1

LID, ENGINE ROOM

F1K-U517B-10-P0

Unavailable

2

VENTILATOR COVER COMP, 2

F1K-U2103-00-00

Unavailable

3

RIVET, BLIND

90267-48809-00

$2.35

4

PACKING 1

F1K-U2663-01-00

$27.26

5

. PACKING 3

F1K-U266B-00-00

$1.15

6

LOCK, LID

F1K-6517C-00-00

$74.23

7

SCREW, WITH WASHER

90159-059U2-00

Unavailable

8

HINGE ASSY.

F1K-U515A-00-00

$315.14

9

. PLATE, HINGE LID

F1K-U518E-04-00

$42.41

10

. HINGE, LID

F1K-U517D-05-00

$315.14

11

. ROLLER, DETENT

F1K-U135C-01-00

$9.08

12

PIN, HINGE

F1K-U517R-01-00

$3.23

13

. SPACER 1

F1K-U471E-03-00

$13.62

14

. SPRING, TORSION

F1K-U283B-02-00

$5.67

15

BOLT, FLANGE

90105-06826-00

$3.02

16

NUT, NYLON

9572R-06300-00

$2.80

17

WASHER

9299R-06200-00

$0.43

18

BOLT, WITH WASHER

90119-06830-00

Unavailable

19

HOOK, LID LOCK

F1K-U517F-01-00

Unavailable

20

BOLT, WITH WASHER

90119-06830-00

Unavailable

21

PLATE, LOCKER BOW

F1K-U475F-01-00

Unavailable

22

RIVET

90269-08801-00

$0.83

23

MAT 2

F1K-U759C-00-00

$1.72

24

BOX, FIRE EXTINGUISHER

F1K-U5983-01-00

$17.94

25

BAND 1

F2P-U828K-00-00

$5.87
