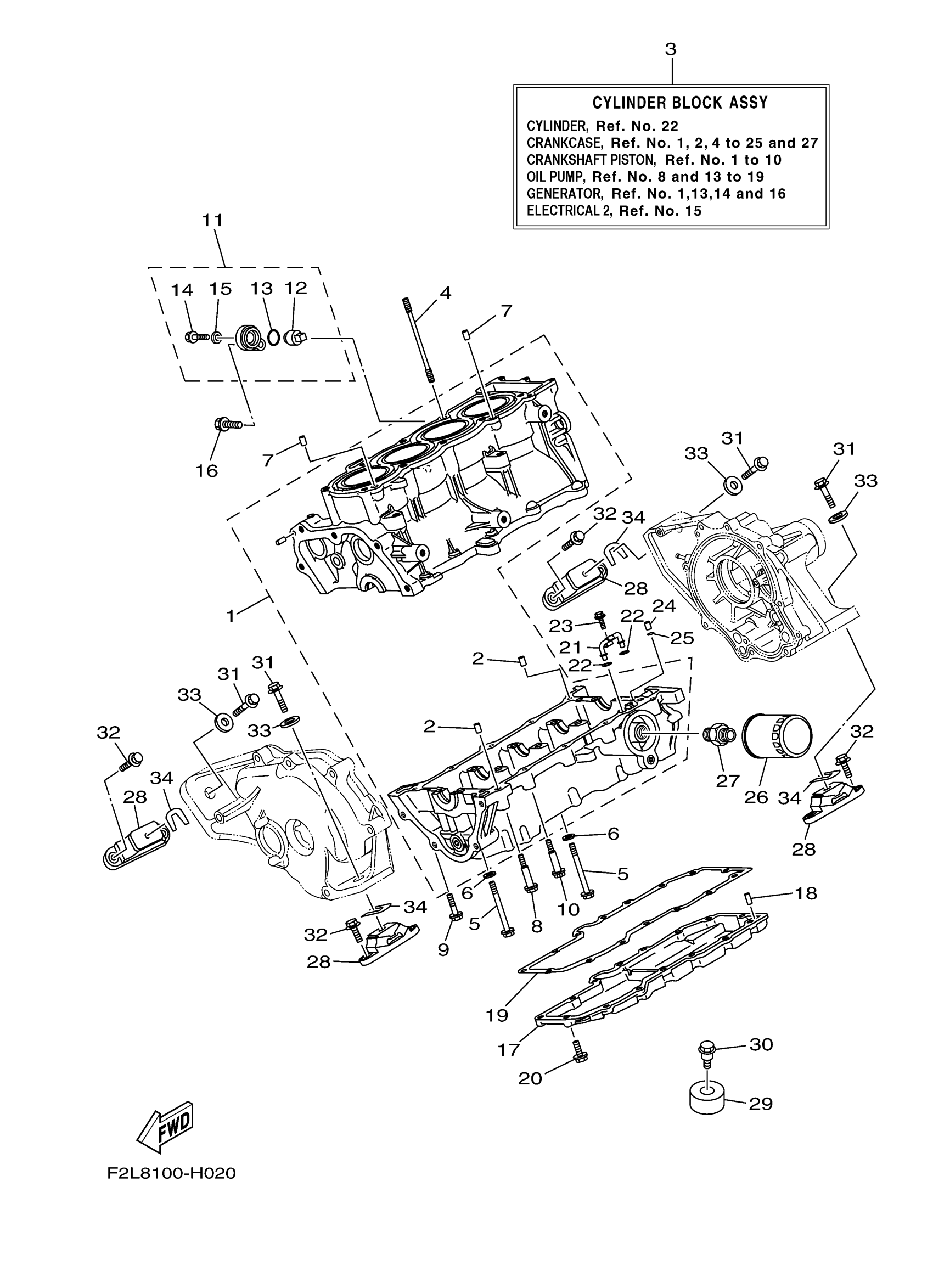

Yamaha VX1100H (WAVERUNNER VX1100CH WAVERUNNER VX SPORT) F2L8 2009 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY & STUD BOLTS

99999-04006-00

$2,445.44

2

PIN, DOWEL(3VD)

99530-10114-00

$2.13

3

CYLINDER BLOCK ASSY

6BU-W009B-01-94

Unavailable

4

BOLT, STUD

90116-10619-00

$9.17

5

BOLT, WASHER BASED

90105-093A5-00

$8.98

6

WASHER, PLATE(1AA)

90201-096J9-00

$2.61

7

PIN, DOWEL(3VD)

99530-10114-00

$2.13

8

BOLT

90109-06051-00

$5.00

9

BOLT, FLANGE(3JP)

95814-06070-00

$5.75

10

BOLT, FLANGE

90105-06M17-00

$5.29

11

ANODE COVER ASSY

69J-11301-02-00

Unavailable

12

ANODE

6ML-11325-00-00

Unavailable

13

GROMMET, ANODE

67F-11328-01-00

$3.50

14

BOLT (689)

90105-06M07-00

$1.82

15

. GASKET

90430-06M03-00

$2.80

16

BOLT, HEXAGON W/W DEEP RECESS

97E95-08540-00

$1.86

17

PAN, OIL

6B6-1310A-01-00

Unavailable

18

PIN, DOWEL

93603-14M15-00

$3.86

19

GASKET

6B6-13557-01-00

$38.49

20

BOLT, WITH WASHER(61B)

97513-06520-00

Unavailable

21

PIPE, DELIVERY 1

60E-13161-00-00

$24.98

22

O-RING(26H)

93210-06667-00

Unavailable

23

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

24

PIN, DOWEL

99530-08012-00

$4.89

25

. O-RING

93210-08001-00

$1.51

26

ELEMENT ASSY, OIL

5GH-13440-90-00

Unavailable

27

BOLT, UNION

90401-20007-00

$13.86

28

MOUNT RUBBER

67X-44517-10-00

$101.50

29

STOPPER, LOWER MOUNT RUBBER

6D3-44574-00-00

$21.95

30

BOLT

90109-06M92-00

Unavailable

31

BOLT, WITH WASHER

90119-08856-00

$5.17

32

BOLT, WITH WASHER

90119-08829-00

$3.88

33

WASHER, PLATE

90201-099U3-00

$2.16

34

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

34

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

34

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

34

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

34

SHIM (T=2.0)

EU0-67354-E0-00

$4.09
